Cobot Welding vs Traditional Industrial Welding Robot: Which Is Better?

If you run a fabrication shop and are weighing automation, you have probably hit the same question: cobot welding vs traditional industrial welding robot, which is better?

The short answer is that neither is universally better. A welding cobot wins on flexibility, speed of deployment, and lower entry cost. A traditional industrial welding robot wins on speed, payload, and throughput in high-volume production. The right choice depends on your part mix, batch sizes, welder availability, floor space, and budget.

This guide compares the two across the factors that matter on the shop floor, so you can decide with data rather than marketing claims.

Quick Answer: Cobot vs Industrial Welding Robot at a Glance

Figures are indicative ranges and vary by brand, region, and configuration. Always get current quotes from integrators.

What Is Cobot Welding?

Cobot welding uses a collaborative robot, an arm designed to work near people, equipped with a welding power source, wire feeder, and torch. Most systems are sold as a package: arm, cart or table, welding package, and software.

Programming is the key difference. Instead of coding or using a teach pendant, an operator physically guides the torch along the seam and records waypoints. Many platforms have welding-specific software that lets a welder set parameters like travel speed, weave pattern, and wire feed.

Because of this, cobot welding is often how a shop automates MIG welding for the first time, especially when it cannot find or keep skilled welders.

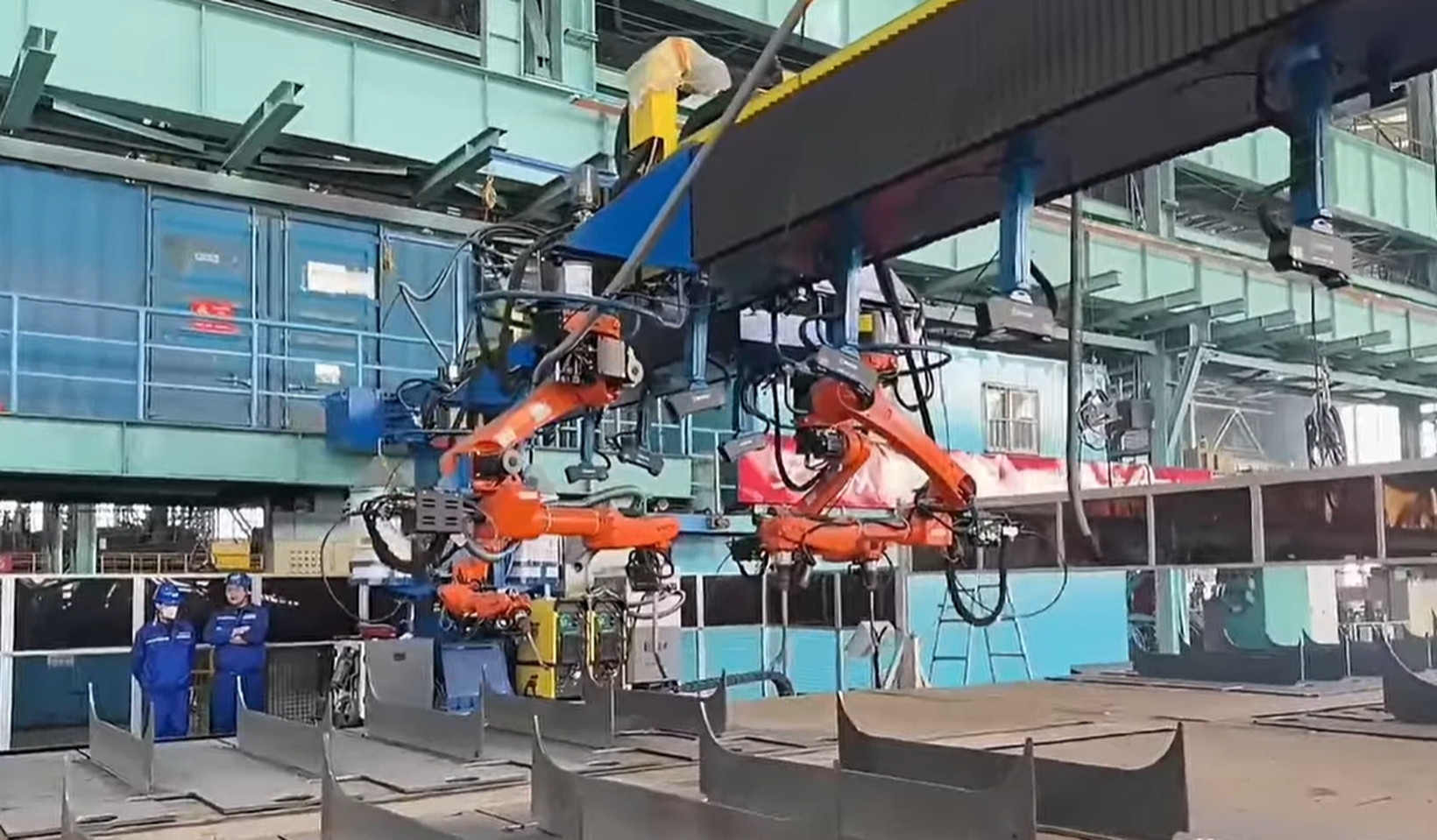

What Is a Traditional Industrial Welding Robot?

A traditional industrial welding robot is a high-speed, high-payload arm (from manufacturers such as FANUC, Yaskawa, ABB, KUKA, and Panasonic) normally installed inside a guarded robotic welding cell. These cells often include:

· A multi-axis positioner or turntable

· Part fixtures and clamps

· Safety fencing, light curtains, or interlocked doors

· A dedicated controller and teach pendant

· Optional seam tracking, touch sensing, and arc monitoring

These systems are built for repeatability and throughput. They run fast, hold tight tolerances, and handle heavy or large workpieces, but they are less forgiving when your part changes often.

Cobot Welding vs Industrial Welding Robot: 8 Key Differences

1. Cost and Total Cost of Ownership

Cobot systems usually have a much lower entry price. A welding cobot package can cost a fraction of a full industrial cell, and it generally avoids expensive fencing and custom integration.

But look beyond the sticker price. Total cost of ownership should include:

· Fixtures and tooling

· Programming and training time

· Consumables (contact tips, nozzles, liners)

· Maintenance

· Integration and safety validation

· Changeover time between jobs

For a shop running 20 different part numbers a week, a cobot’s fast changeover can easily outweigh an industrial robot’s lower per-part cycle time. For a shop running one part 10,000 times, the opposite is true.

2. Speed and Throughput

This is where industrial robots clearly win. They move faster, accelerate harder, and can keep up with high-volume lines. A collaborative arm is limited in speed when operating in true collaborative mode, because safety standards cap force and speed when a human may be nearby.

In practice, though, arc-on time is often the real bottleneck. Skilled manual welders typically spend only a fraction of their shift actually welding. A cobot can increase arc-on time dramatically even at lower travel speeds, because it does not need breaks and keeps a consistent pace.

3. Payload and Reach

Most cobots handle limited payloads and have a modest reach, which is fine for a torch and wire feeder but restrictive for large assemblies, heavy tooling, or handling the workpiece itself. Industrial robots offer a much wider range of payloads and reach envelopes, including long-reach models for big structures.

If you weld large, heavy weldments or need the robot to also move parts, an industrial robot is usually the better fit.

4. Programming and Ease of Use

Cobots are built for non-programmers. A welder can often learn to program basic welds in a day. That lowers dependence on specialized staff and shortens the time to first production part.

Industrial robots usually require trained programmers or offline programming software. The upside is more control: complex paths, multi-pass welds, coordinated external axes, and advanced process control.

5. Safety and Collaboration

This is the most misunderstood part of cobot welding. A cobot is designed to stop or limit force when it contacts a person, as outlined in ISO/TS 15066, the technical specification for collaborative robot safety. But a welding application is rarely fully collaborative, because the process itself introduces hazards that the robot’s built-in safety does not address:

· Arc flash and UV radiation

· Sparks and spatter

· Hot workpieces and torch tip

· Welding fumes

· Sharp edges on parts

That means even with a cobot, you still need a risk assessment, appropriate barriers or welding screens, PPE, and fume extraction. Refer to guidance from OSHA on welding, cutting, and brazing and consult your integrator and a qualified safety professional.

Industrial robots are guarded by default, so the safety model is more straightforward, though it takes more floor space and cost.

6. Flexibility and Changeover

For job shops and contract manufacturers, flexibility is the main argument for cobots. They can sit on a mobile cart, be rolled to a weld table, and be reprogrammed for a new part in minutes to hours.

Industrial robots excel when the work is stable. Once the cell is dialed in, it will produce the same weld thousands of times, but changing it is slower and more expensive.

7. Weld Quality and Repeatability

Both technologies deliver strong repeatability compared with manual welding, which is why robotic welding reduces rework and scrap. Industrial robots generally offer slightly higher positional accuracy and better integration with advanced sensing such as laser seam tracking, which helps with thick plate, multi-pass welds, and tight-tolerance work.

For many typical fabrication jobs, including brackets, frames, enclosures, and structural components, a well-set-up cobot produces welds of consistent, inspection-ready quality. Always confirm that your process meets the relevant code, such as those from the American Welding Society (AWS), for your industry.

8. Footprint and Facility Impact

A cobot welding cart fits in tight shops and can be shared across stations. A traditional cell typically needs a dedicated, fenced area, electrical work, and sometimes facility modifications. If floor space is expensive or limited, that matters.

When to Choose a Cobot Welder

A welding cobot is likely the better choice if:

· You run high-mix, low-volume production (small batches, frequent changeovers)

· You are a small or mid-size shop automating for the first time

· You struggle to hire or retain skilled welders

· Your parts are small to medium and relatively light

· You want a fast payback and a low-risk entry into robotic welding

· Floor space is limited, or you need to move the system between stations

When to Choose a Traditional Industrial Welding Robot

An industrial welding robot is likely the better choice if:

· You run high-volume, repeat production with stable part designs

· Cycle time is critical to your profitability

· You weld heavy, large, or complex weldments

· You need advanced features such as multi-axis positioners, laser tracking, or multi-robot coordination

· You have in-house programming or engineering talent

· You can justify a larger capital investment through long production runs

ROI: How to Calculate Which Option Pays Back Faster

A simple approach to compare the two:

1. Calculate your current cost per weld hour (labor, overhead, rework, scrap).

2. Estimate the robot’s productive arc-on time. Do not assume 100%; account for loading, unloading, and changeover.

3. Estimate annual part volume and mix. More part numbers favor cobots; more volume per part favors industrial.

4. Add all project costs: robot, power source, fixtures, safety, training, and integration.

5. Divide total investment by annual savings to estimate payback period.

Many shops find that cobots pay back within about a year when they replace overtime or fill an unfilled welder position, while industrial cells pay back through scale. Treat any specific payback figure as a hypothesis until you test it against your own numbers.

Can You Combine Both?

Yes, and many manufacturers do. A common approach is to use industrial robots for the high-volume core products and cobots for short runs, prototypes, and overflow work. Starting with a cobot also builds in-house robotic welding know-how before a larger investment.

Common Mistakes to Avoid

· Assuming “collaborative” means “no safety measures needed.” Welding hazards remain.

· Ignoring fixturing. Consistent part positioning matters as much as the robot. Poor fit-up causes poor welds in any system.

· Buying on payload or price alone. Look at the whole welding process: torch, wire feed, software, support.

· Underestimating training. Even easy systems need operators who understand welding.

· Not testing your actual parts. Ask integrators for a sample run or demo on your own workpiece.

Frequently Asked Questions

Is a cobot welder as good as a traditional welding robot?
For many light to medium fabrication jobs, yes: the weld quality is consistent and often better than manual welding. For high-speed, heavy-duty, or tight-tolerance production, a traditional industrial robot is typically stronger.

Are cobot welders safe to use around people?
The arm itself is designed to limit force on contact, but the welding process creates separate hazards (arc, spatter, fumes, heat). You still need a risk assessment, shielding, PPE, and ventilation.

How much does a cobot welding system cost compared to an industrial welding robot?
Cobot systems generally cost significantly less up front. Complete industrial welding cells with fencing, positioners, and integration usually cost more. Prices vary by brand and configuration, so request multiple quotes.

Can a cobot weld thick steel or aluminum?
Cobots can handle many common materials and thicknesses with the right power source and process. Very thick plate, multi-pass welds, and demanding aluminum applications are often better served by an industrial setup with advanced sensing.

Do I need to know programming to use a welding cobot?
Generally no. Most systems use hand-guiding and simple interfaces, though welding knowledge is still essential for choosing parameters.

Which is better for a small business?
In most cases, a cobot, because of its lower cost, easier programming, and flexibility with varied jobs.

Conclusion: Which Is Better?

The honest answer to “cobot welding vs traditional industrial welding robot, which is better?” is that it depends on your production profile.

· Choose a cobot for variety, fast deployment, lower cost, and small-shop agility.

· Choose a traditional industrial robot for speed, payload, and high-volume efficiency.

· Consider both if your business spans short runs and long production lines.

Start by analyzing your part mix, batch sizes, and labor situation, then request a demo with your own parts before committing.
