RW Series Collaborative Welding Robot | Factory Pre-Assembled Ready To Weld

Introduction

For many metal fabrication workshops and custom welding manufacturers, adopting robotic welding automation has long been slowed by deployment complexity. Traditional robotic welding cells arrive as separate loose components: robot arm, welding power source, wire feeder, torch assembly, control cabinet, safety hardware, cables and fixtures. Customers must coordinate mechanical assembly, electrical wiring, TCP calibration, EMI suppression, parameter tuning and on-site commissioning. This process can take days or even weeks, requiring skilled automation engineers and forcing production downtime before the first weld bead can be laid down.

Our RW Series collaborative welding robot redefines this model. Every RW cobot welding system is fully assembled, wired, calibrated, tested and pre-commissioned inside our factory before shipment. When the machine arrives at your workshop, it is delivered as an integrated complete workstation. Simply position the unit, connect power and gas supply, perform a short safety verification, and you can start welding. No complicated on-site assembly, no lengthy calibration work, no waiting for external automation technicians.

The Hidden Costs of Conventional Robot OnSite Assembly

Most buyers underestimate the total cost of ownership of robotic welding systems beyond the hardware invoice. Disassembled robotic kits create multiple layers of risk and delay.

First, mechanical assembly and cable routing demand experienced technicians. Improper mounting, twisted cables, loose connectors or misaligned torch brackets can cause vibration, signal loss, premature wear, inconsistent TCP (Tool Center Point) and unstable arc behaviour. In welding applications, tiny TCP deviations directly create defective welds, porosity, lack of fusion or burn-through defects, especially for stainless steel, duplex steel and thin-gauge metal components.

Second, electrical integration and grounding are notoriously error-prone on the shop floor. Welding arcs produce high-frequency electromagnetic interference (EMI). Poor common grounding, shared power circuits and unshielded cables often trigger random emergency stops, encoder signal drift, communication dropouts between robot controller and welding power source. Diagnosing such EMI faults on-site is time-consuming and often frustrates even experienced maintenance teams.

Third, calibration and welding parameter validation require repeated testing. Integrators normally perform TCP teaching, torch offset adjustment, wire feed testing, gas flow tuning and welding recipe verification on the customer’s premises. If defects appear after commissioning, troubleshooting may require multiple site visits and production interruption.

For small-to-medium fabricators with limited in-house automation expertise, these barriers are often prohibitive. Many businesses delay robotic adoption simply because they lack engineers capable of assembling and commissioning a complete welding cobot cell. Even larger manufacturers face scheduling headaches, long lead times for service engineers and unpredictable project timelines.

RW Series: Full Factory Assembly & Pre-Commissioning Workflow

Every RW collaborative welding robot follows a rigorous factory integration workflow before packaging and delivery.

1. Mechanical assembly and structural alignment Our engineering team mounts the 6-axis collaborative arm, welding torch, wire feeder, power supply, control cabinet and cable management system onto the integrated base frame. All bolt torques, mounting clearances and cable routing are completed in our controlled factory environment, eliminating the risk of incorrect assembly at customer premises.

2. Complete electrical wiring, shielding and grounding All power cables, signal cables, encoder lines and welding circuit connections are fully wired and tested. We implement dedicated grounding design and EMI shielding to mitigate arc interference. This removes the most common source of on-site robotic welding instability.

3. Precision TCP calibration and safety validation Tool center point calibration, joint limit verification and collaborative safety function testing are fully executed. The RW cobot relies on built-in collision detection; we validate force threshold settings so human-robot interaction works reliably without external safety fences.

4. Full functional welding test & recipe validation Before shipment, every RW unit runs real welding trials with actual workpieces. We test arc starting, wire feeding, gas delivery, weld bead consistency and motion trajectory. Standard welding recipes for carbon steel, stainless steel and aluminium are preloaded into the controller. The workstation completes a multi-hour continuous running test to expose hidden mechanical or electrical faults before leaving our facility.

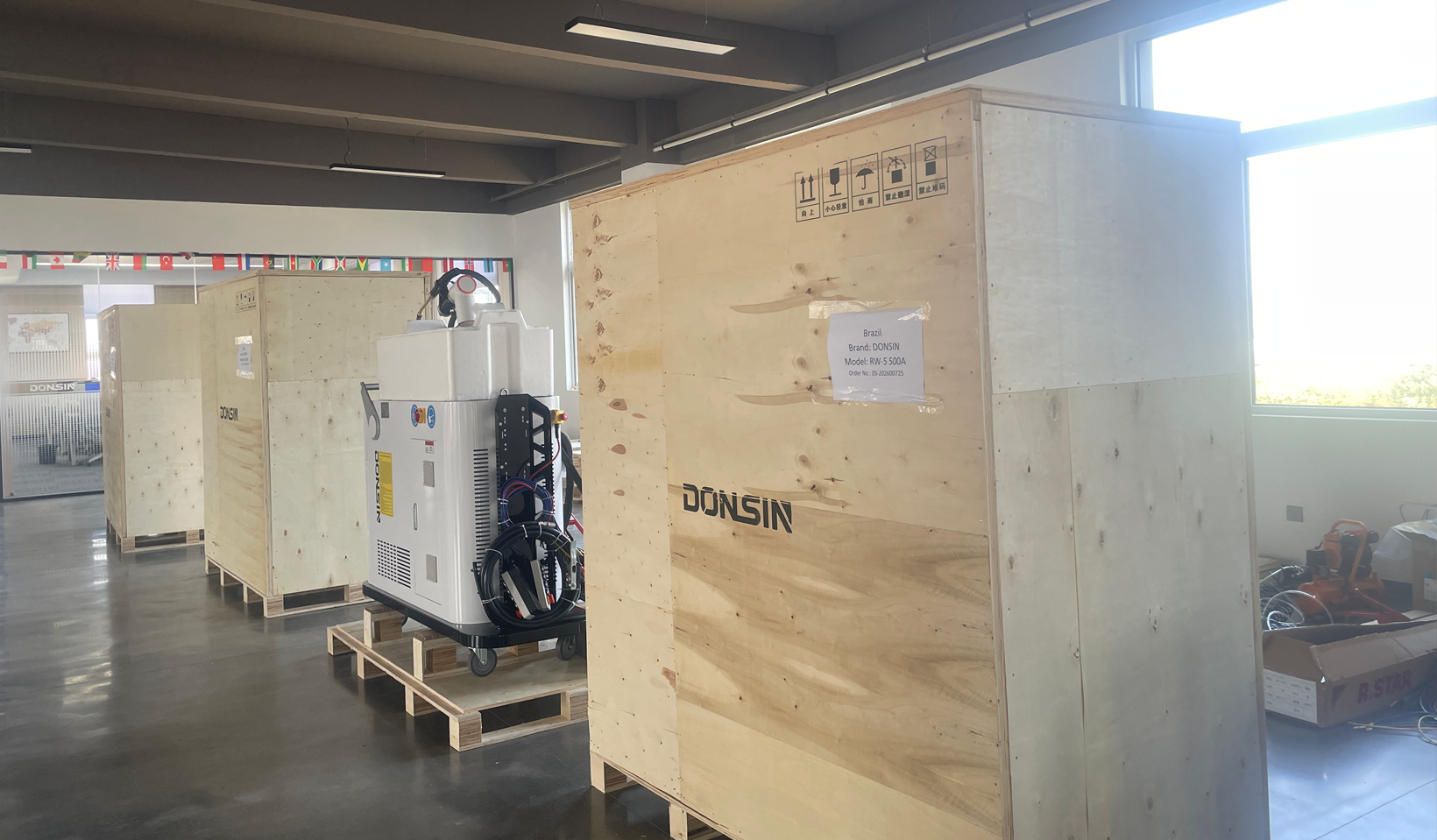

5. Final quality inspection and protective packaging After passing all performance criteria, the system is secured for international transport with custom shock-absorbing packaging. Disassembly is minimised, only minor protective covers are detached for transit. The majority of the integrated workstation remains assembled.

What Customers Receive Upon Delivery

When your RW Series collaborative welding robot arrives at your facility, you receive a complete, unified workstation, not a box of spare parts.

· Pre-assembled collaborative robot arm + integrated welding torch assembly

· Pre-welded and wired welding power source, wire feeder and control cabinet

· Pre-calibrated TCP, preloaded welding software and ready-to-use welding parameter libraries

· Fully validated collaborative safety system

· Clear operation manuals, maintenance guides and onboarding training materials

On-site work is reduced to basic placement, levelling, mains power connection and shielding gas hookup. Within hours after arrival, operators can start teaching weld paths and producing parts. There is no requirement for specialist robot integration engineers to travel to your factory for assembly and commissioning.

Core Business Benefits of RW Ready-To-Use Collaborative Welding Robot

1. Dramatically shorten automation deployment timeline

Traditional robotic welding cells often take 1–3 weeks from delivery to production. RW systems cut this lead time down to a single working day. Manufacturers can accelerate automation projects, respond faster to order surges and shorten the ROI cycle of robotic investment.

2. Eliminate on-site integration risk

Factory assembly takes place inside our controlled workshop with dedicated robotic and welding engineers. All mechanical, electrical and interference issues are identified and resolved before shipment. Customers avoid the uncertainty of field troubleshooting and costly production downtime caused by assembly errors.

3. Lower requirement for in-house technical skills

Many metal fabricators have skilled welders but no robot programming or integration specialists. The RW collaborative robot uses hand-guided drag-to-teach programming. Once installed, existing welders can create new welding programs without deep robotics knowledge. The ready-to-use design removes the steep barrier of mechanical and electrical integration.

4. Consistent weld quality from day one

TCP calibration, arc stability and wire feed behaviour are validated at our factory. The system delivers repeatable weld quality immediately after installation. There is no long tuning phase where early batches of workpieces suffer inconsistent bead geometry or welding defects. This is especially valuable for precision fabrication, pressure components, stainless steel and duplex stainless welding applications with strict quality standards.

5. Flexible relocation across your workshop

As a fully integrated, compact collaborative workstation without safety fencing, RW can be moved between workstations. Since it is pre-calibrated, relocation and redeployment are far simpler than conventional fixed robotic cells. This suits job shops with variable product mixes and frequently changing production layouts.

6. Transparent total project cost

Separate assembly, wiring, commissioning and site service fees are eliminated. Customers pay for a complete tested welding solution, with predictable budget, no surprise charges for on-site engineering work.

Application Scenarios

The RW collaborative welding robot serves a wide spectrum of metal fabrication tasks: structural steel welding, stainless steel component fabrication, aluminium frame welding, machinery parts, agricultural equipment, construction hardware, pressure vessel sub-assemblies and custom batch production. It fits small workshops and mid-sized manufacturing plants, ideal for high-mix, low-to-medium volume production where traditional fixed industrial robot cells are too rigid and expensive.

Conclusion

Automation adoption should not be held back by complicated assembly and commissioning. Our RW Series collaborative welding robot breaks this barrier by delivering a fully integrated, factory-tested cobot welding workstation ready to operate once it reaches your site.

Instead of managing robotic integration projects, your team can focus on what matters most: producing high-quality welded components, boosting throughput and improving profit margins. With RW collaborative welding robots, robotic automation becomes accessible, fast and low-risk for modern metal fabricators.
