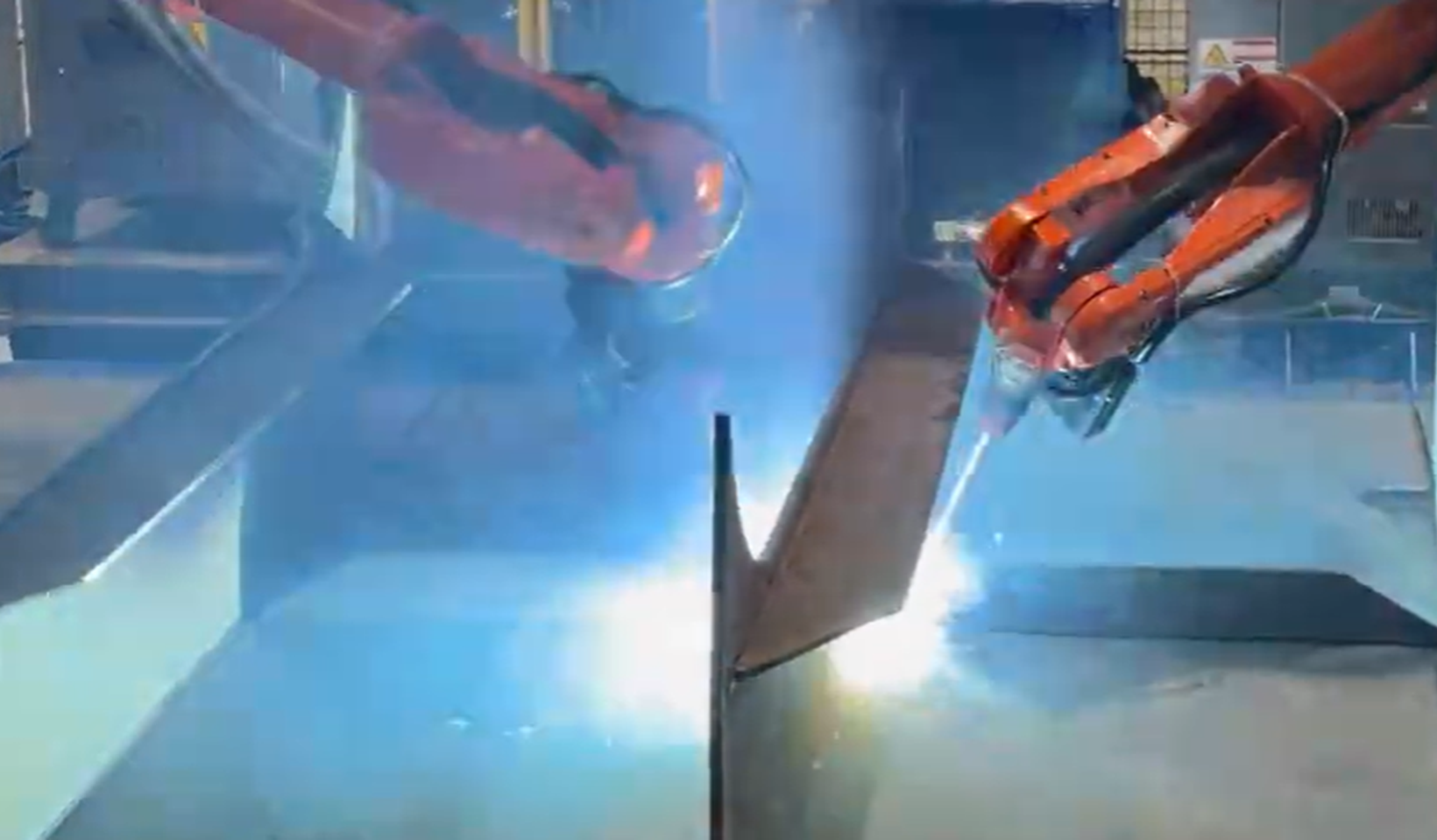

Welding Robots in Shipbuilding: Applications, Types and How to Choose

Welding is the heart of ship construction. A single vessel can contain many kilometers of weld seams across plate, stiffeners, pipes and structural joints. That is why welding is the first process most yards automate, and why it features so prominently in the wider robotics in shipbuilding market.

This guide explains where welding robots fit, which types work best, what makes shipyard welding difficult, and how to choose the right system.

Why Welding Is the Priority for Automation

Fortune Business Insights lists welding, cutting, assembly, painting and coating, material handling, and inspection and maintenance among the main applications. Welding stands out for three reasons: fortunebusinessinsights

· Labor shortage. The industry faces a persistent shortage of skilled welders, fabricators and assembly workers. giiresearch

· Volume of work. Long, repetitive seams suit automation.

· Quality risk. Rework on thick-plate and structural welds is expensive, and inspection requirements are strict.

Where Welding Robots Are Used in a Shipyard

Types of Welding Robot Systems for Shipbuilding

1. Gantry and panel-line robots

Large gantries carry one or several torches across flat panels. They deliver the highest throughput on repeating plate-and-stiffener work, but need a dedicated line and consistent part geometry.

2. Articulated robot cells

Six-axis robots on positioners handle sub-assemblies and medium-sized weldments. Reach and payload depend on the robot model; for oversized pieces, a track or gantry extends the working envelope.

3. Portable and crawler welding robots

These small robots are placed directly on or inside a structure. They are valuable for hull blocks and double-bottom compartments where a fixed cell cannot reach, and they are often the quickest way for a yard to start automating.

4. Collaborative welding robots

Collaborative robots are cheaper and easy to program by hand-guiding, which suits small batches. See our comparison of cobot vs industrial welding robots for the trade-offs. Remember that welding hazards still require guarding, shielding and fume extraction even with a cobot; see OSHA’s welding, cutting and brazing guidance.

Why Shipyard Welding Is Harder Than Factory Welding

Thick plate and multi-pass welds. Heavy sections need multi-pass strategies, interpass temperature control and precise heat input.

Poor fit-up and distortion. Large steel structures are rarely perfect. Gaps and misalignment vary along the seam, so a robot following a fixed path will fail. Sensing and adaptive control are essential.

Access. Many seams are in tight, enclosed spaces where large robots cannot go.

Low volumes, high variety. Few parts repeat in large numbers, so quick programming (ideally from CAD data) is as important as arc speed.

Environment. Dust, grinding debris, wind in open yards and long cable runs all challenge equipment.

Key Technologies That Make Robotic Welding Work in Shipyards

· Seam tracking and touch sensing: detect actual joint position and compensate for gaps.

· Laser vision: measures groove geometry to adapt welding parameters.

· Offline programming: generates paths from CAD models to reduce teaching time.

· Multi-axis positioners: keep the weld in the best position, improving quality and speed.

· Arc monitoring and data logging: documents parameters for quality records.

Most welding must follow recognized codes and classification-society rules, so confirm procedures against the standards from bodies such as the American Welding Society and your class society, and keep qualified welding procedures.

How to Choose a Welding Robot for Your Yard: Checklist

1. Define your parts. Plate thickness, joint types, maximum size and weight, and repeat volume.

2. Choose the right architecture. Gantry for repeat flat panels, articulated cell for sub-assemblies, portable for blocks.

3. Check reach and payload with margin. Include the torch, cables and any sensors.

4. Prioritize sensing. If your fit-up varies, seam tracking is not optional.

5. Evaluate programming effort. How long to program a new part? Can it use CAD data?

6. Plan fixturing. Poor fixtures cause more defects than the robot.

7. Confirm process capability. Test your exact material, thickness and position.

8. Check support. Local service, spare parts and operator training.

9. Run a trial. Ask suppliers to weld a sample of your real parts.

Common Mistakes

· Choosing by robot specs rather than by whole-process capability

· Skipping fit-up control and then blaming the robot

· Underestimating training and welding engineering needs

· Automating too much at once instead of starting with a high-repeat area
