Zero-Spatter MIG Welding with Collaborative Robots: Process, Data and Cost Impact

Oct. 27, 2026

Why spatter is a bigger cost than most fabricators think

Walk through any MIG welding cell and you will see it: a fine dusting of metal balls welded to the plate beside the seam, on the fixture, on the floor. It looks cosmetic. It is not.

Spatter is measured in three places that never appear on a quotation: grinding hours, consumables (discs, anti-spatter spray, nozzle gel) and scrap when a bead has to be cut out and re-run. In a shop welding 1,500 metres of fillet per month, a 5-minute cleanup per metre is 125 hours of manual work every month — before a single dollar of consumables is counted.

This is the practical reason collaborative welding robots have moved from "nice demo" to production tooling. A cobot does not weld faster than a human by a large margin; it welds the same way every single time, and that repeatability is what removes spatter.

What "zero spatter" actually means

First, a definition, because the term is often oversold. In production welding, zero spatter means no spatter that requires post-weld removal. The workpiece, fixture and surrounding area stay clean enough that the part goes from the welding station straight to paint or assembly.

Under a microscope you will still find micro-droplets. What disappears is the rework loop: no grinding, no anti-spatter spray, no re-inspection. That is the commercially meaningful definition, and it is the one used throughout this article.

The four variables that create spatter

Spatter is not random. It comes from instability in the arc, and instability almost always traces back to one of four variables drifting out of window:

Root causeWhat physically happensHow a collaborative robot removes it
Contact-tip-to-work distance (CTWD) driftHand-held torches move 3–8 mm during a pass; arc length changes, current density changes, droplets explode sidewaysTorch is held at a fixed CTWD within ±0.5 mm for the whole seam
Travel speed variationOperator slows at corners and speeds up on straight runs; heat input swings and the arc becomes short-circuit unstableProgrammed speed held constant; corners handled by the path, not by the wrist
Wrong transfer mode for the positionGlobular transfer at low current throws large droplets; short-circuit at high current explodes themSynergic pulse programmes keep one droplet per pulse across the whole current range
Poor fit-up and gap variationGap opens, arc length grows, wire stubs into the pool and popsSeam tracking and adaptive fill adjust travel speed and wire feed as the gap changes
Collaborative robot welding a 6 mm fillet joint on carbon steel with no spatter on the plate

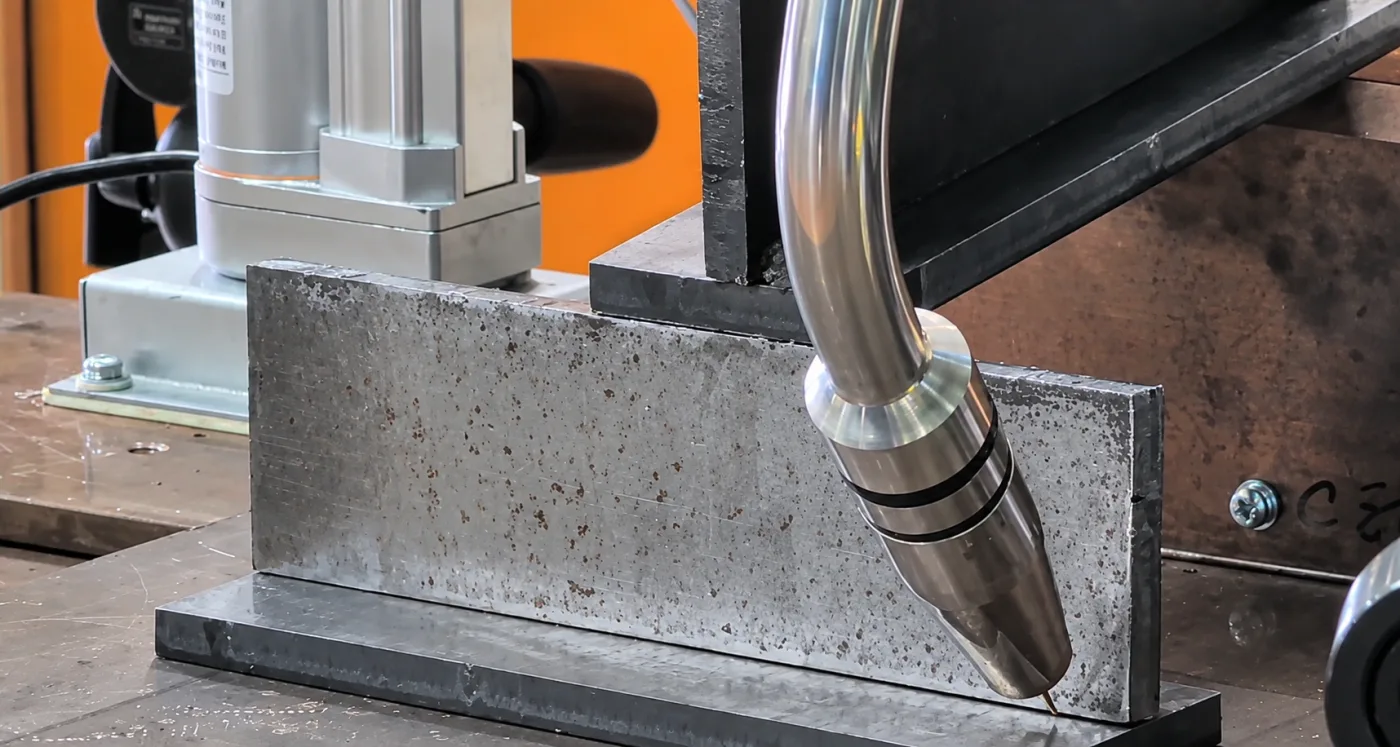

Pulsed GMAW on a 6 mm fillet T-joint: the torch holds a fixed work angle and 12–15 mm CTWD for the whole pass.

How a cobot holds the arc stable

1. Geometry is fixed, not estimated

A human welder judges a 45° work angle and a 10° push angle by eye. A cobot holds the torch at the programmed angle to within a fraction of a degree for the entire pass. Because arc stability is extremely sensitive to angle and CTWD, simply removing that variation eliminates a large share of spatter before any waveform tuning is applied.

2. Synergic pulse welding instead of short-circuit transfer

Pulsed GMAW detaches exactly one droplet per pulse. When the pulse parameters are matched to wire diameter and shielding gas — which the robot controller does automatically from a single "material + thickness + wire" selection — the transfer is never in the globular range that throws large spatter balls. In practice this is the single largest contributor to a clean bead.

3. Seam tracking keeps the arc where the joint actually is

Laser or arc-sensing tracking corrects for fit-up that no fixture fully controls. Without tracking, the torch drifts toward one plate, the arc length collapses, and spatter appears exactly where the operator cannot see it. With tracking, the correction happens continuously and the current stays in window.

4. Coordinated positioner turns downhill welding into flat welding

Most spatter on heavy fabrication comes from welding out of position. A cobot paired with a synchronised positioner rotates the part so the seam is always presented flat or slightly downhill. Flat position allows higher current at lower voltage — a stable, quiet arc.

5. Consistency compounds

One clean pass proves little. The value appears on pass 4,000: identical parameters, identical bead width, identical penetration. That is where rework statistics collapse.

The data: spatter by process type

The table below shows indicative ranges observed in general fabrication. Treat them as planning benchmarks, not guarantees — fit-up, material condition and gas quality move the numbers.

ProcessSpatter generated
(% of deposited wire)
Cleanup time
per metre of weld
Typical post-weld work
Manual MIG/MAG, hand-held torch3–8 %4–8 minGrinding, anti-spatter spray, wire brushing
Conventional robot, fixed teach programme1–3 %1–2 minOccasional spot grinding
Cobot with synergic pulse + seam tracking< 0.5 %0–0.5 minNormally none

What that means in money

Worked example, with every assumption stated so you can re-run it with your own numbers:

  • 1,500 metres of fillet weld per month
  • Loaded labour rate: USD 25 / hour
  • Consumables (grinding discs, anti-spatter, nozzle gel): USD 0.30 per metre of weld cleaned
ItemManual weldingConventional robotCobot + pulse & tracking
Cleanup time per month150 h37.5 h7.5 h
Cleanup labour costUSD 3,750USD 938USD 188
Consumables per monthUSD 450USD 150USD 40
Monthly totalUSD 4,200USD 1,088USD 228
Annual totalUSD 50,400USD 13,056USD 2,736

The gap between manual and cobot is roughly USD 47,600 per year on 1,500 metres per month — before counting scrap, rework inspection or the paint defects caused by spatter trapped under a coating.

A parameter window that produces a clean 6 mm fillet

This is a starting point for carbon steel, not a universal recipe. Always qualify on your own material and run a destructive test before releasing to production.

ParameterValue
Material / thicknessS355 carbon steel, 6 mm leg length fillet
Joint typeT-joint, single-sided fillet
WireG3Si1 (ER70S-6), 1.2 mm
Shielding gas80 % Ar / 20 % CO₂, 15 L/min
Transfer modeSynergic pulse
Current200–220 A
Voltage24–26 V
Travel speed35–45 cm/min
CTWD12–15 mm, held constant
Torch angle45° work angle, 5–10° push
PositionFlat, part tilted to 45° on the positioner
Finished spatter-free fillet weld bead with uniform ripple pattern and clean surrounding plate

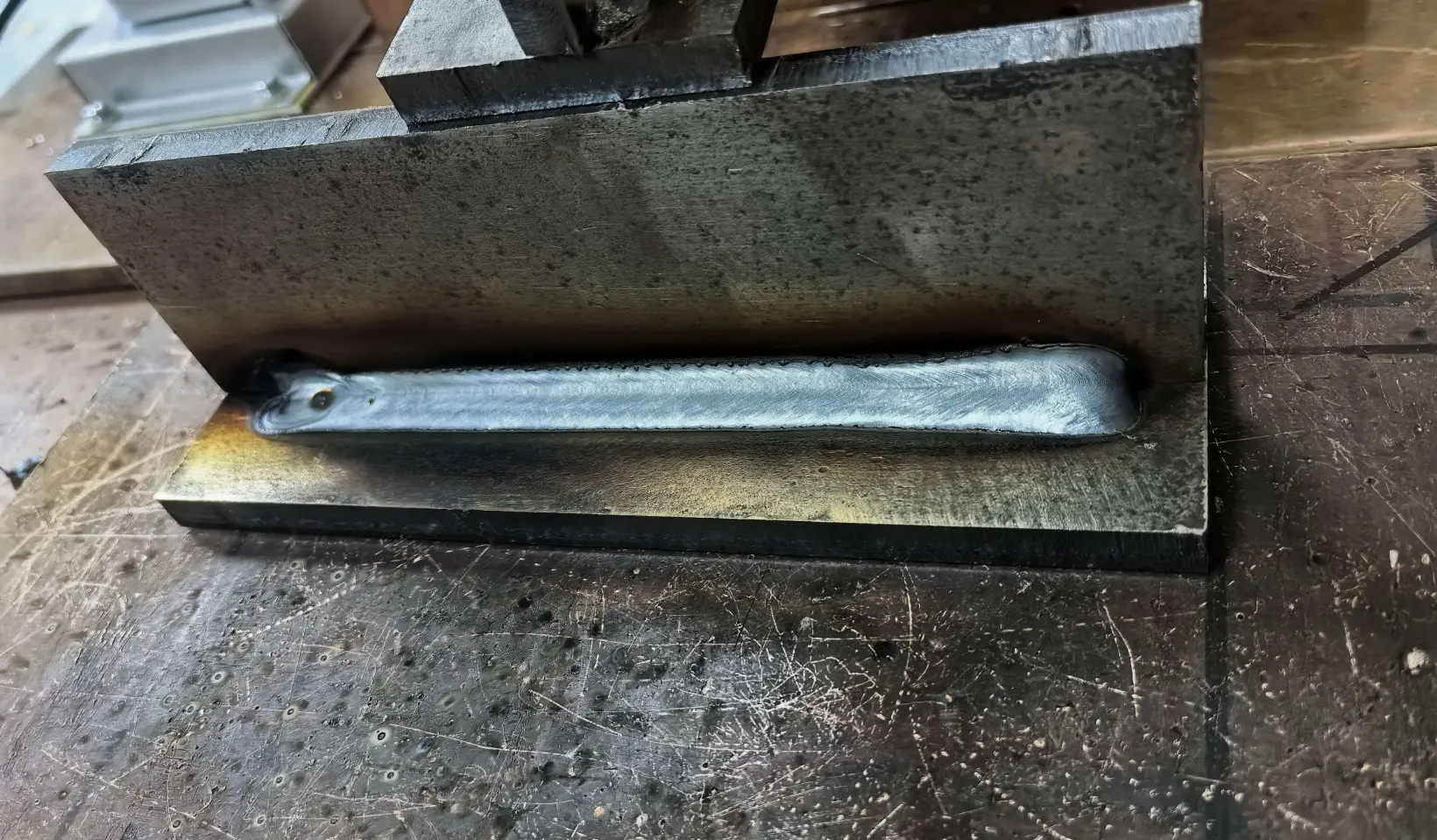

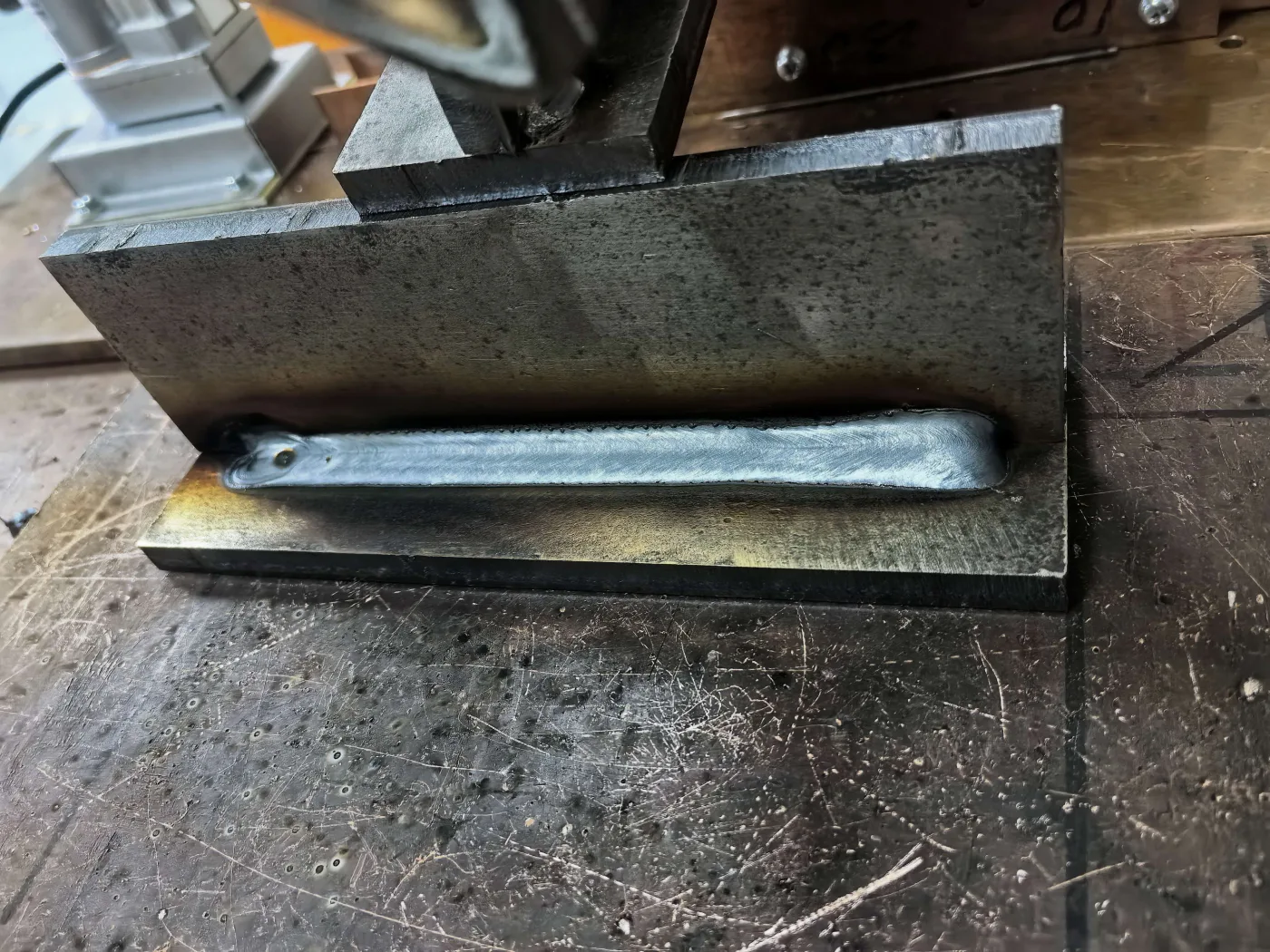

The finished bead from the same pass: uniform ripple, correct leg length, and no spatter on the plate or fixture.

The two photographs in this article come from exactly this window: the first shows the torch during the pass, the second the finished bead. Note the absence of spatter on the plate either side of the weld and on the fixture surface.

Which quality standards this satisfies

Consistent geometry and no spatter are not only cosmetic — they support acceptance under the standards most export projects are inspected against:

  • ISO 3834 — quality requirements for fusion welding; repeatable robot parameters make the documented procedure genuinely repeatable.
  • ISO 5817 — acceptance levels for weld imperfections; spatter and surface irregularities are explicitly assessed here.
  • AWS D1.1 — structural welding code widely referenced on North American projects.

For background on process fundamentals, the GMAW process reference is a useful starting point; welding fume and safety guidance is published by OSHA.

Implementation checklist

  1. Fixture before you program. A cobot cannot fix a joint that moves. Clamp repeatability under 1 mm is the entry ticket.
  2. Choose pulse, not short-circuit, for anything above 3 mm.
  3. Add seam tracking if the gap varies more than 1 mm. This is the difference between a demo and a production cell.
  4. Put the part on a positioner. Welding flat removes most spatter before the robot is even switched on.
  5. Qualify once, then lock the programme. Change control is what keeps the numbers stable over years.

Frequently asked questions

Can a collaborative robot really produce zero spatter?

In the commercially meaningful sense — no spatter requiring removal — yes, on clean carbon steel and stainless with pulsed transfer, correct gas mix and stable fit-up. On heavily galvanised or contaminated plate, some porosity-driven popping is unavoidable and should be handled by joint preparation rather than by the robot.

Which gas mix reduces spatter most?

For carbon steel, an 80/20 argon–CO₂ mix gives a stable pulsed arc with low spatter. Higher CO₂ content improves penetration on thick sections but increases spatter; lower CO₂ gives a smoother bead but less penetration.

Do I need a positioner to get a clean bead?

Not always, but it is the cheapest way to convert out-of-position welds into flat welds — and flat welding is where spatter disappears. On large fabrications it usually pays back within months.

How long does it take to switch a manual cell to a cobot cell?

For a single repeatable part family, programming and qualification typically take days, not weeks, because cobots are programmed by moving the arm rather than by writing code.

Next step

If spatter is costing you grinding hours, the fastest way to quantify it is to measure one representative part: weld length, cleanup minutes, disc consumption and scrap rate. Send us those four numbers and we will model the payback against our collaborative welding robot systems or the RW series, and tell you honestly whether the case closes.
