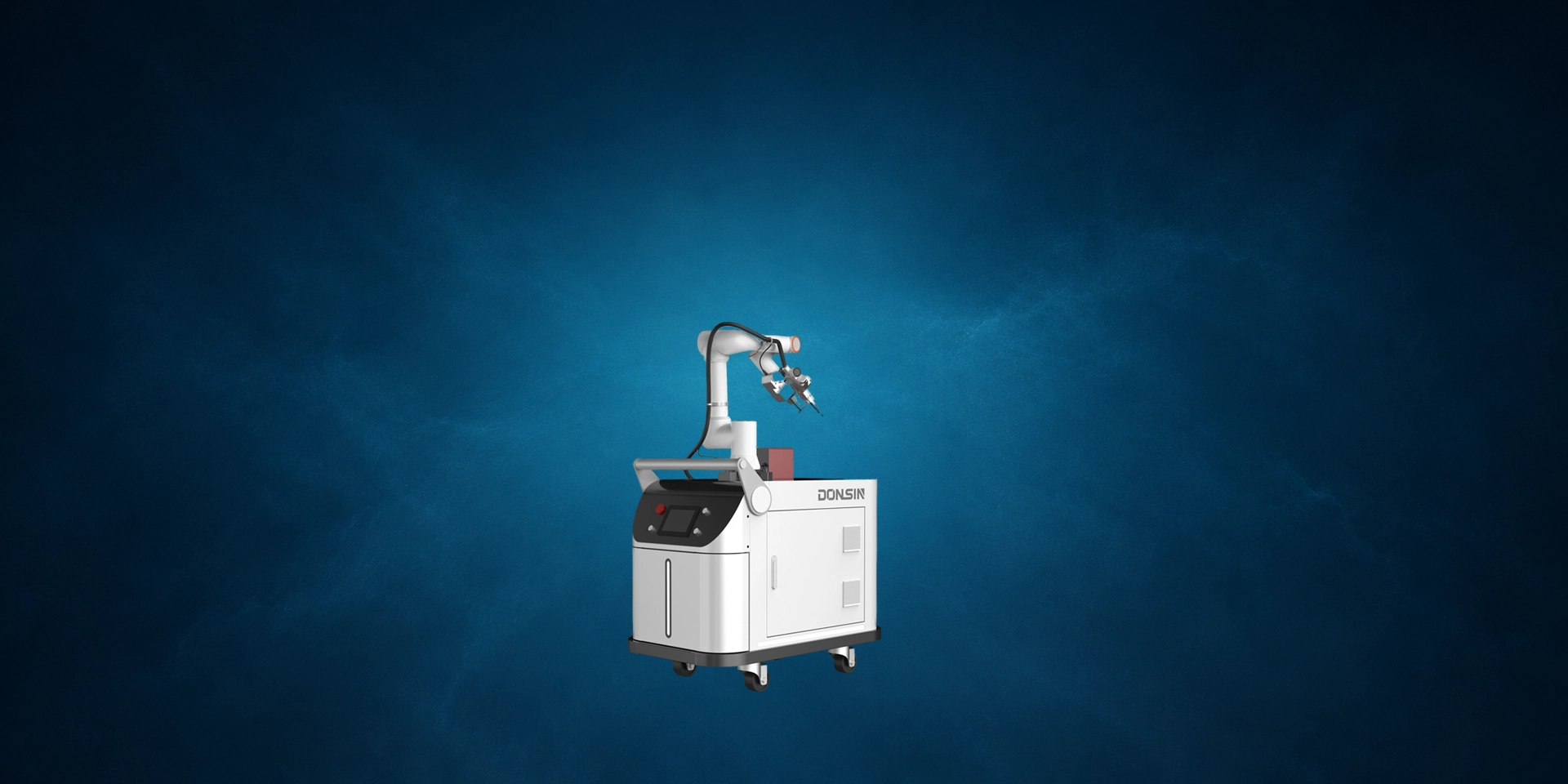

collaborative-robot-welding-lw

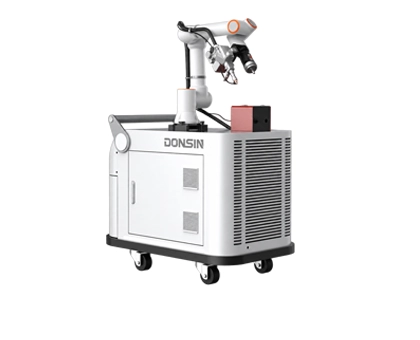

DONSIN LW

Human-Robot Interaction | Collaborative Symbiosis

3-Year Full Machine Warranty Service

Inquire Now Contact Us

Core Value Proposition

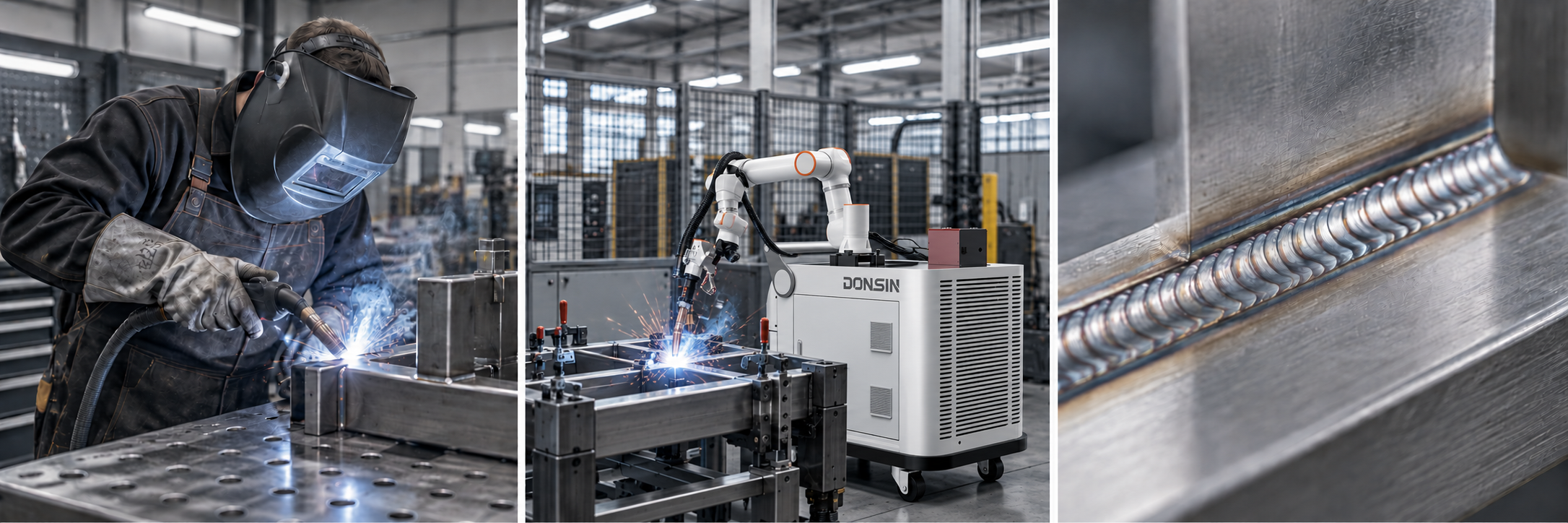

What Is It?

What Problems Does It Solve?

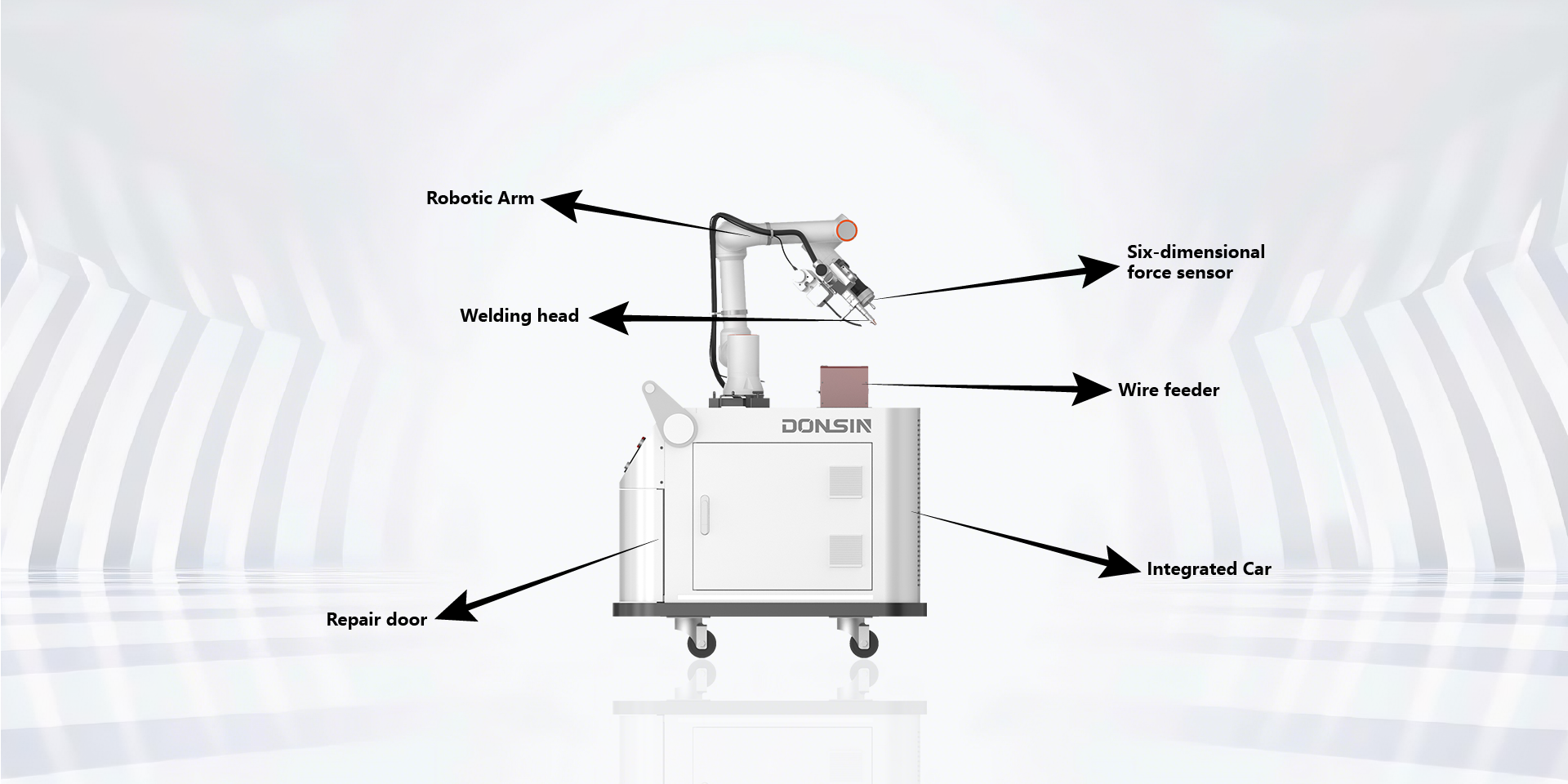

What Parts Does It Consist Of?

What Are Its Core Selling Points?

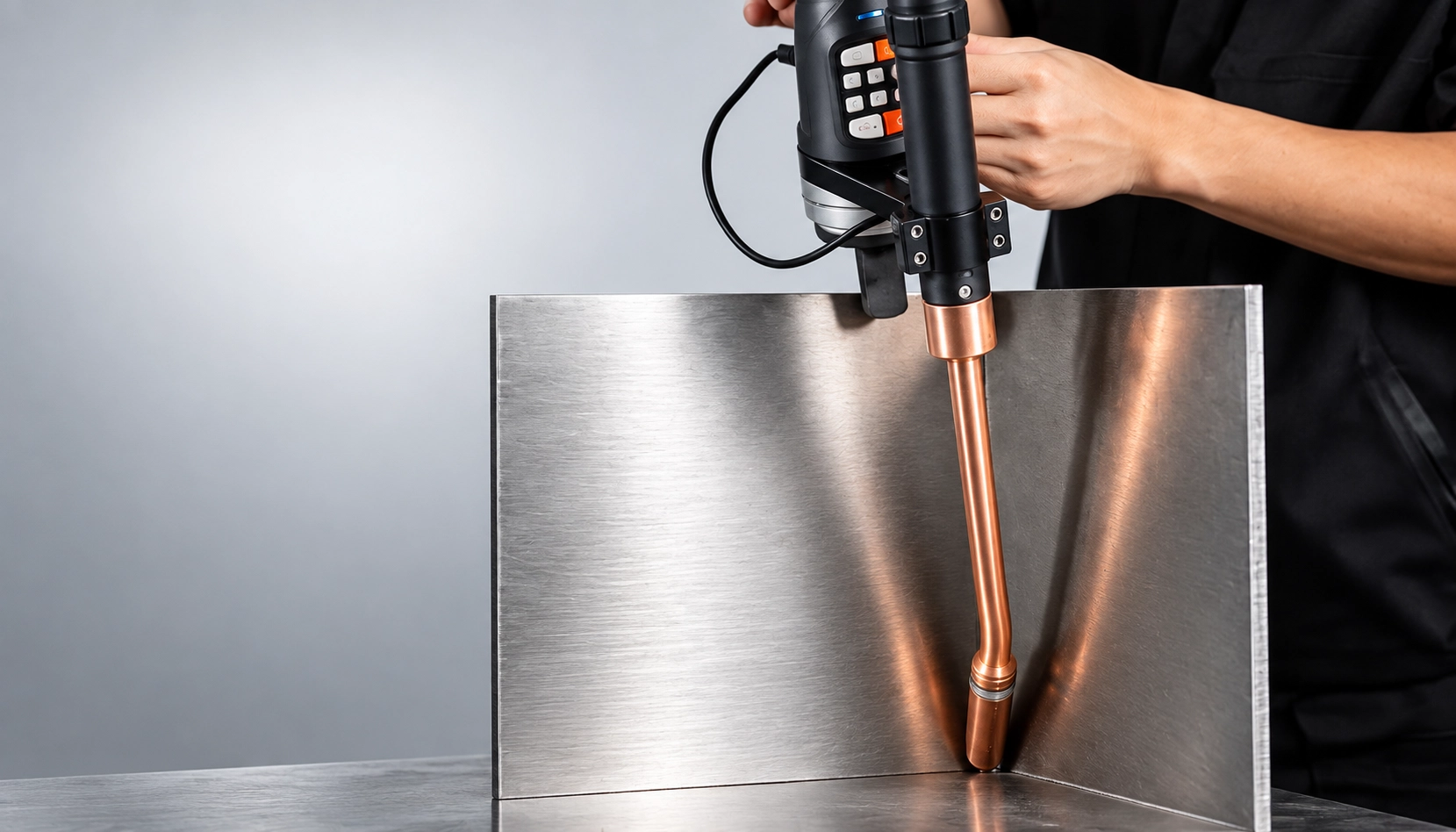

Extreme Ease of Use:

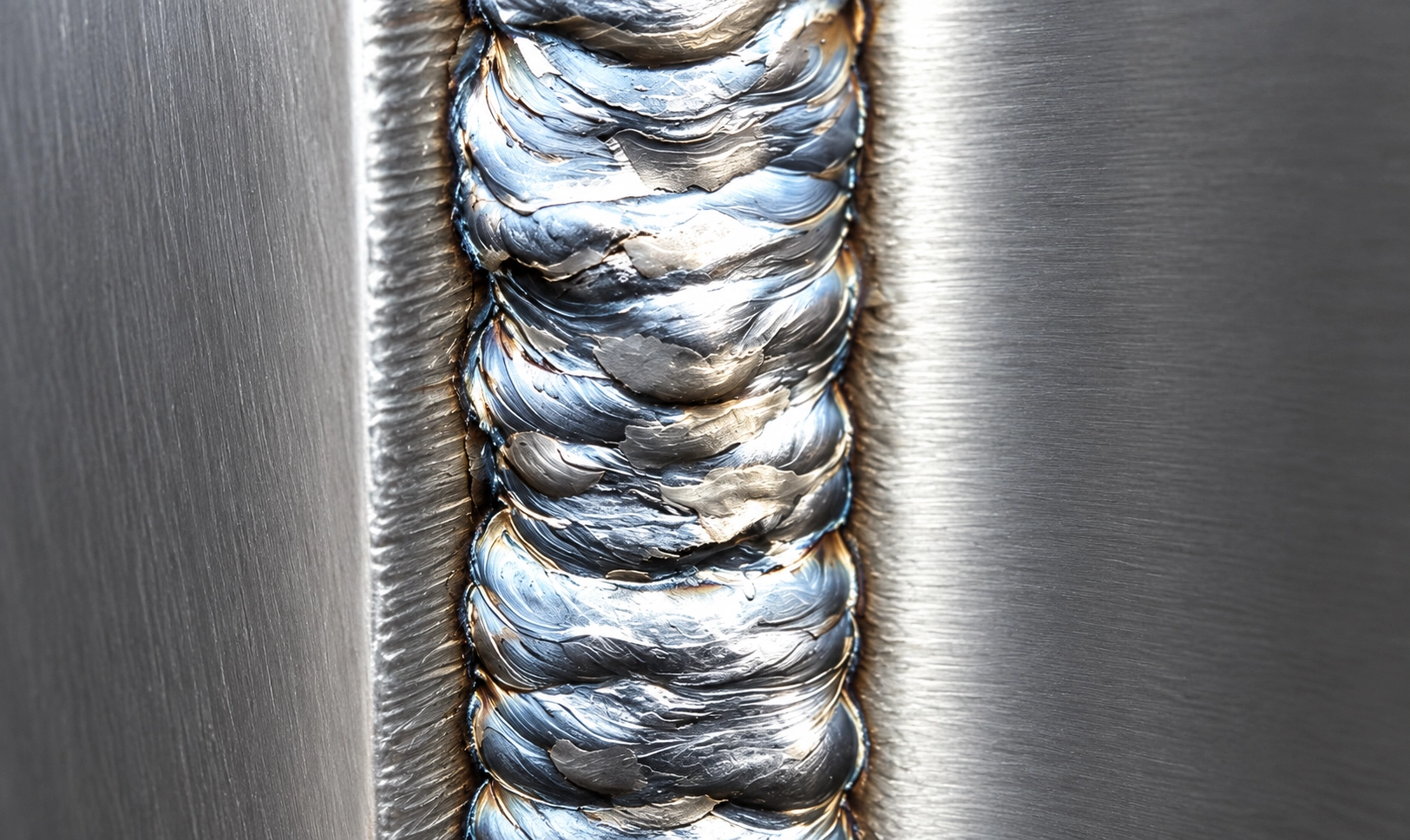

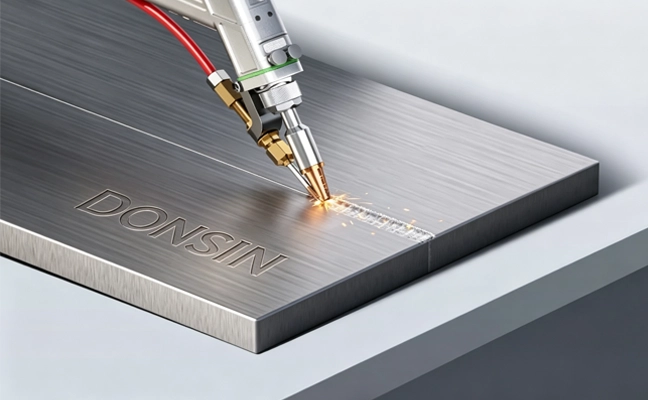

Stable and High Quality

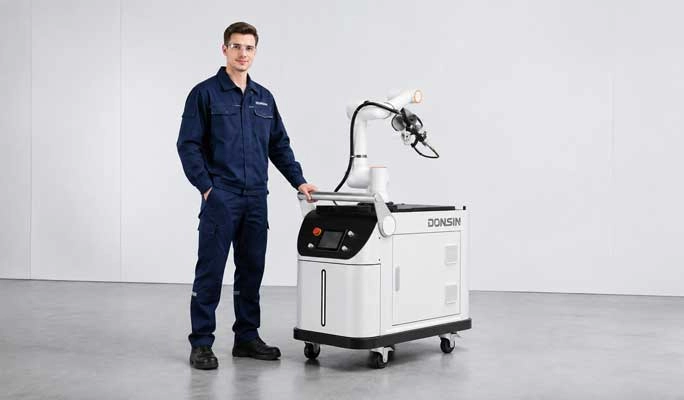

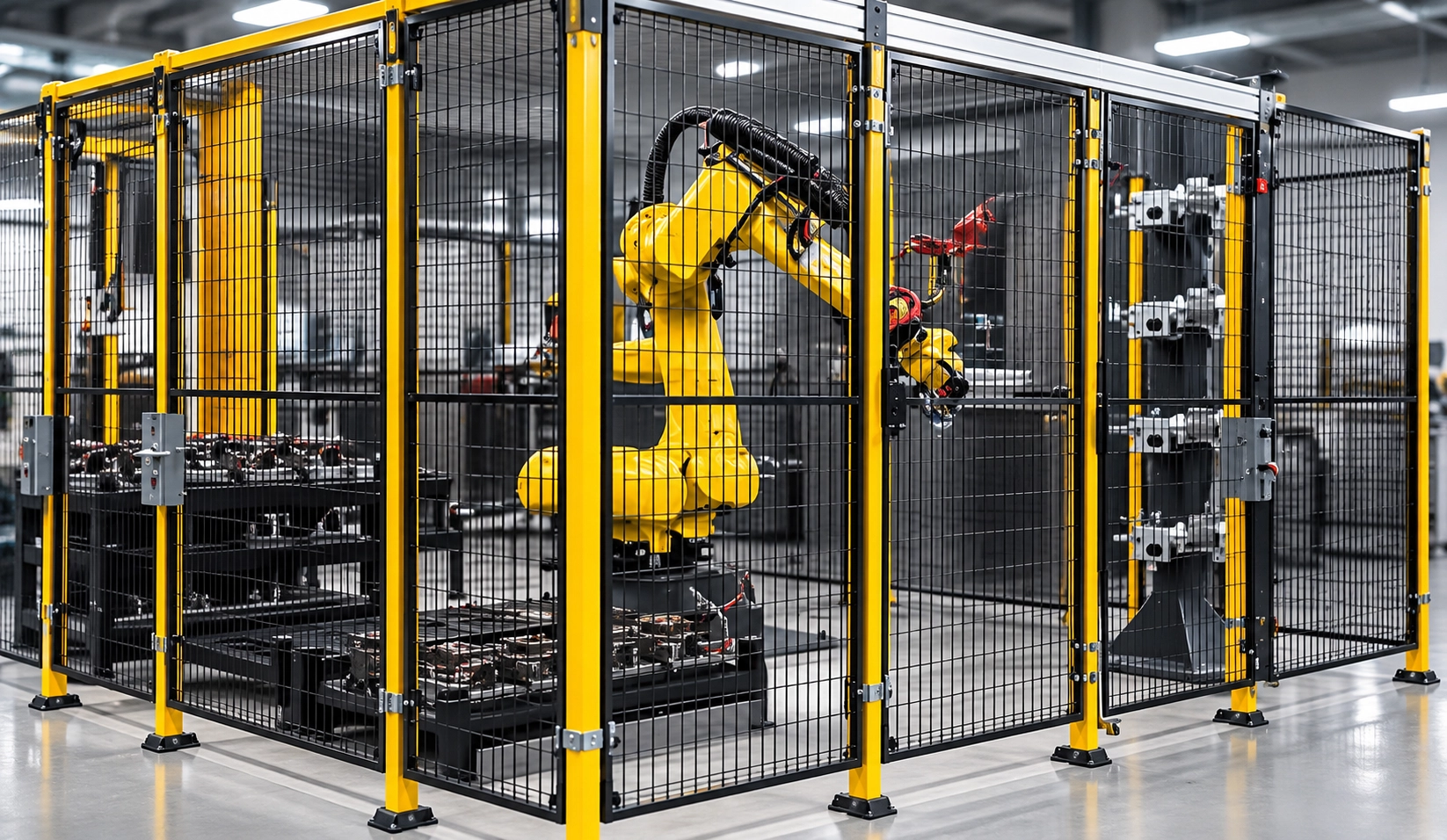

Safe Collaboration

Fast Return on Investment

What Are Its Application Scenarios?

Shipbuilding

Automotive Industry

Construction/Bridge

Energy Equipment

New Energy

Special Machinery

Agricultural Equipment

Fitness Equipment

Detail Presentation
Unique And Ingenious Ideas

Collaborative Robot Welding-RW

The in-depth integration of industrial design and industrial aesthetics is reshaping the product value system. This integration is not only reflected in the perfect balance between function and form, but also endows industrial products with emotional resonance and cultural connotation through consumer-grade product design innovation, achieving the dual upgrading of "intelligent manufacturing + quality manufacturing".

The welder features a visualized design for parameter adjustment and a dust-proof structure in its appearance, enabling real-time monitoring of working status.

Front-end quick removal of the protective cover.

With a streamlined surface design and modular appearance, the robot presents a futuristic form that combines a sense of technology with industrial aesthetics.

Performance Is King
Fearless Of Challenges

TCP speed

1 .5 m/s

Welding current

500 A

Repeat positioning accuracy

±0 .02 mm

Protection level

IP54/IP65

Performance Data

Focusing on laser cleaning and collaborative robot welding, reshaping the global manufacturing ecosystem

Minimum power

17 KW

Continuous operating time

36 h

Overall lifespan

30000 h

Which Product Is Suitable For You?

Focusing on laser cleaning and collaborative robot welding,
reshaping the global manufacturing ecosystem

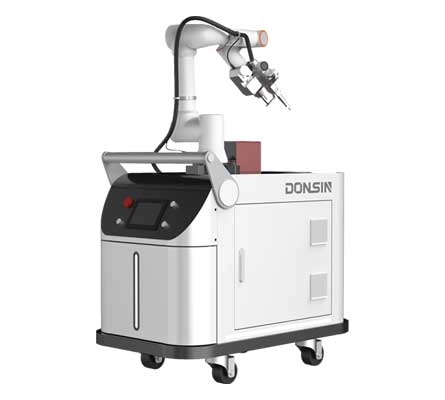

LW-5

collaborative robot welding-LW-10

Learn More >

Robot Working Radius

922mm

Effective Welding Size

≤1800mm

Overall Dimensions

1140mm*900mm*1200mm

Packing Dimensions

Main Unit: Approx. 1540 × 1300 × 1540 mm Robot Arm FR5: Approx. 800 × 460 × 470 mm

Total Machine Weight (Excluding Manipulator)

354kg

Gross Weight (Robot Arm)

55kg

Net Weight (Excluding Robot Arm)

294kg

Robot Unit Weight

≈33kg

Repeat Positioning Accuracy

±0.02mm

Typical Tcp Speed (End-Point Operating Speed)

1m/s

Wavelength

1080nm（±5nm）

Protection Level

IP54/IP65

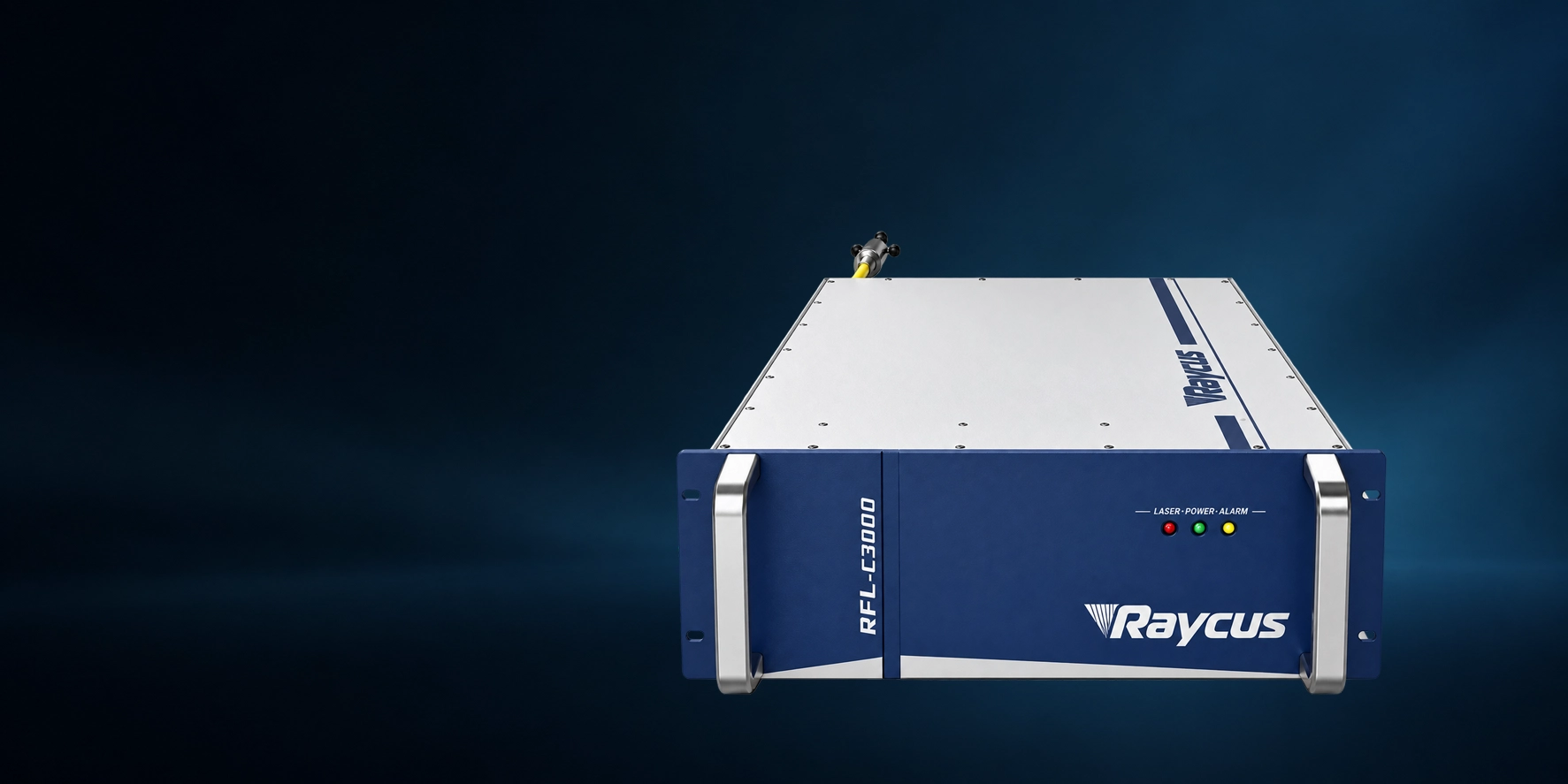

Laser source brand

Raycus

Laser head model

SUP26A（AS）

Weldable plate thickness

0.3-8mm

Power

1500W/2000W/3000W

Fiber length

20 m (Customizable)

Cooling method

Water Cooling

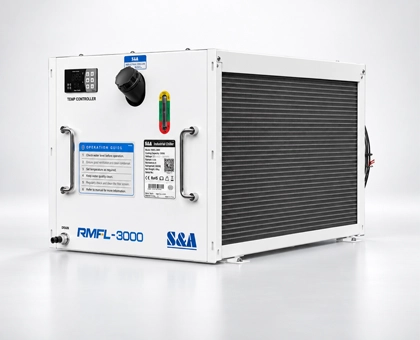

Chiller brand

S＆A

Weldable Materials

Carbon Steel / Stainless Steel / Aluminum Alloy

Input Frequency

50/60Hz

Intelligent Welding In The New Era

RW Series - Collaborative Welding Robot

Hello! Welcome to the RW series intelligent welding solutions. Consult now for exclusive solutions!

Get A Quote

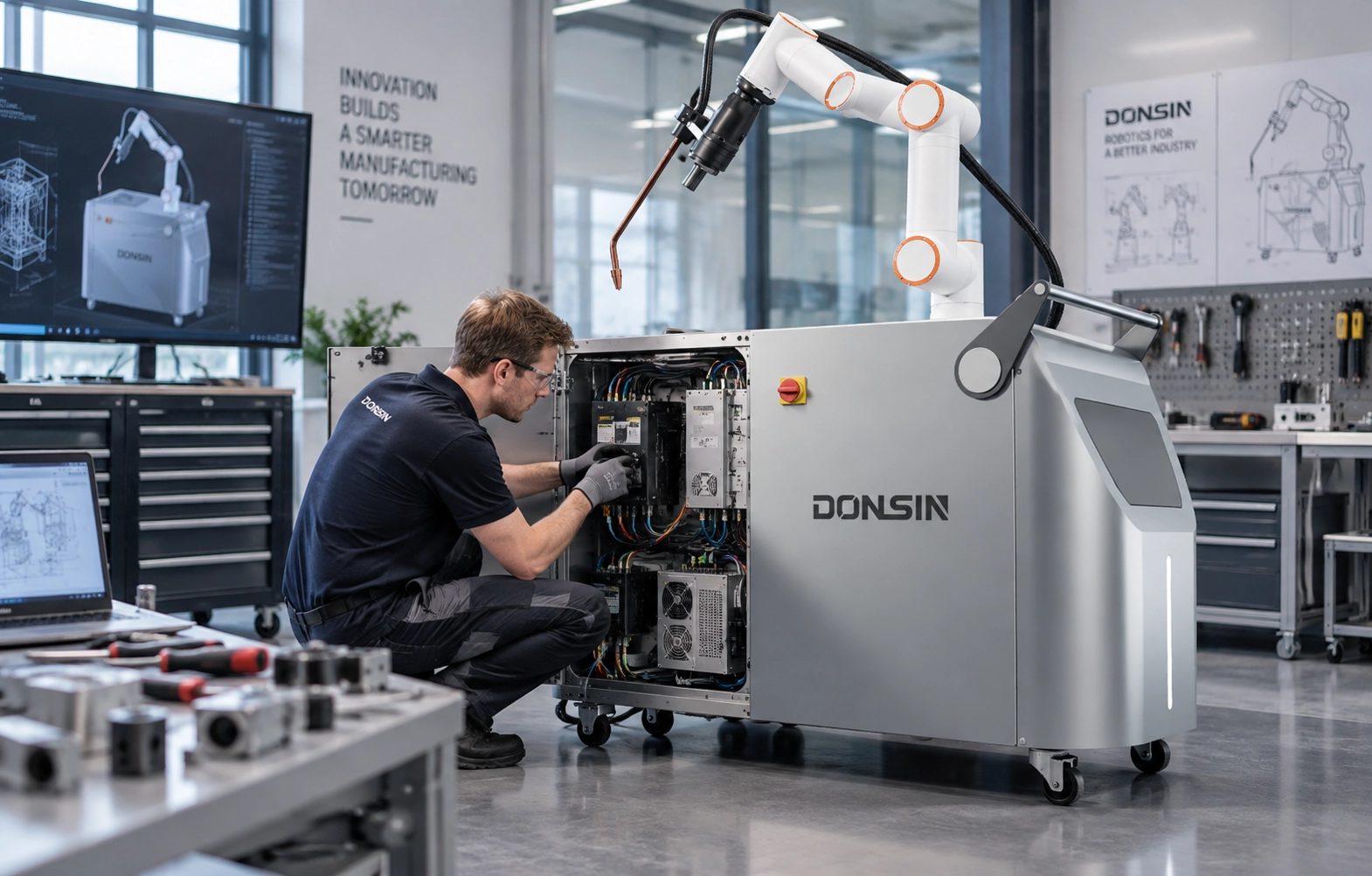

Core Component Advantages

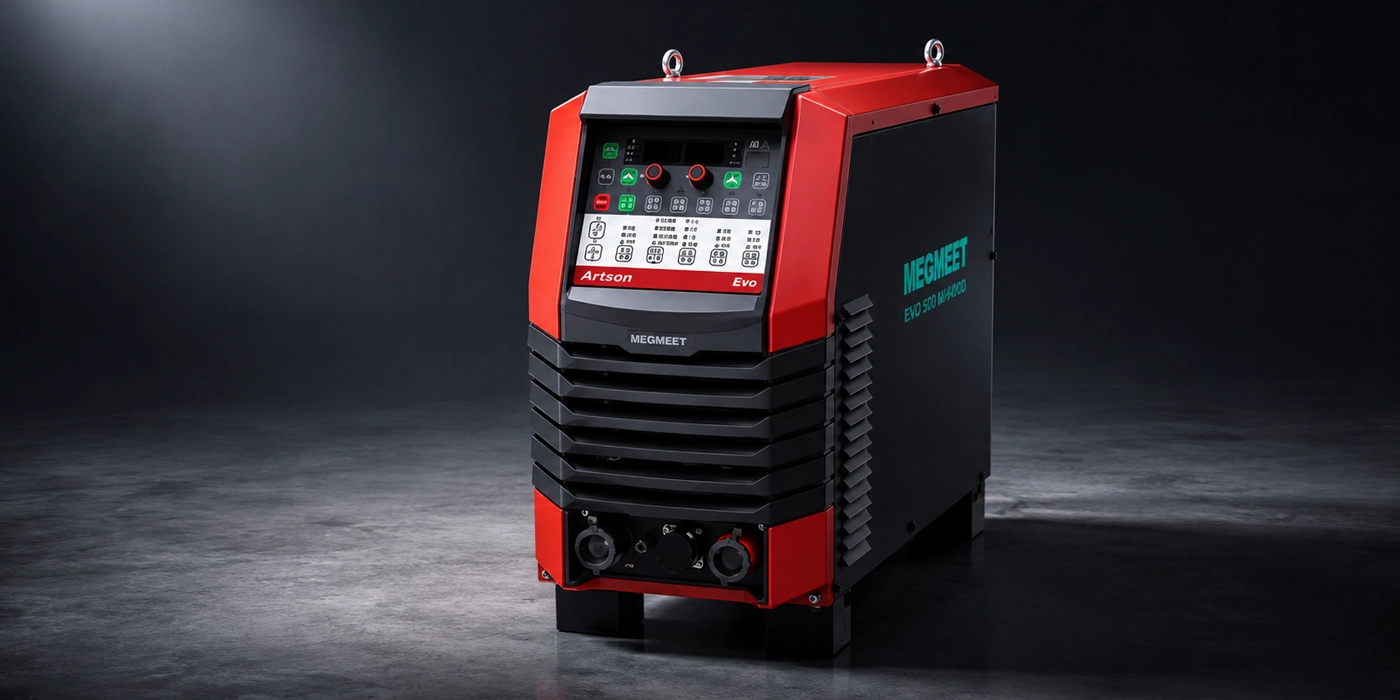

Welding Machine System：Advantages: Megmeet Welding Machines – Ultra-low spatter, high efficiency & energy-saving performance, and superior reliability.

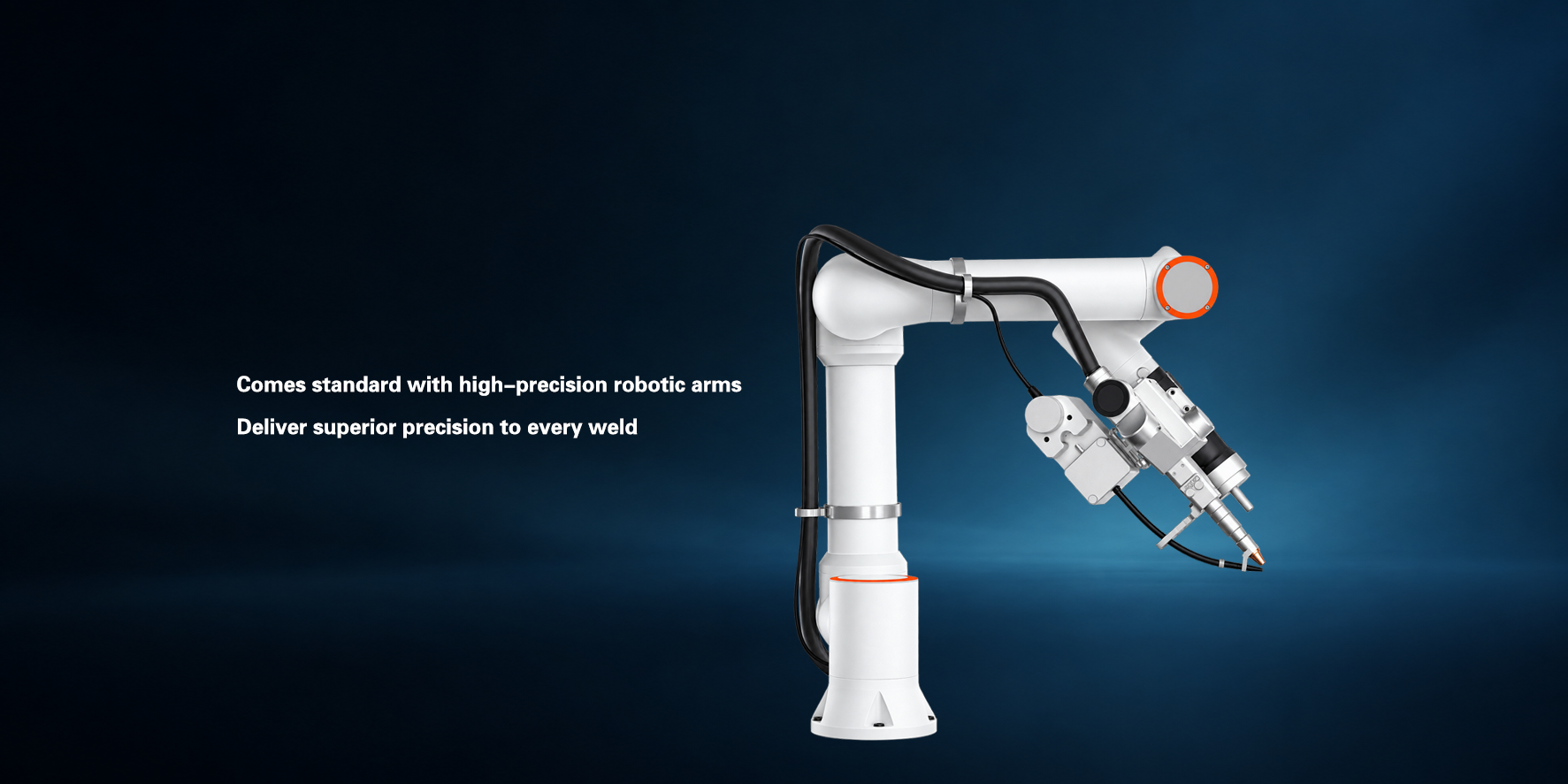

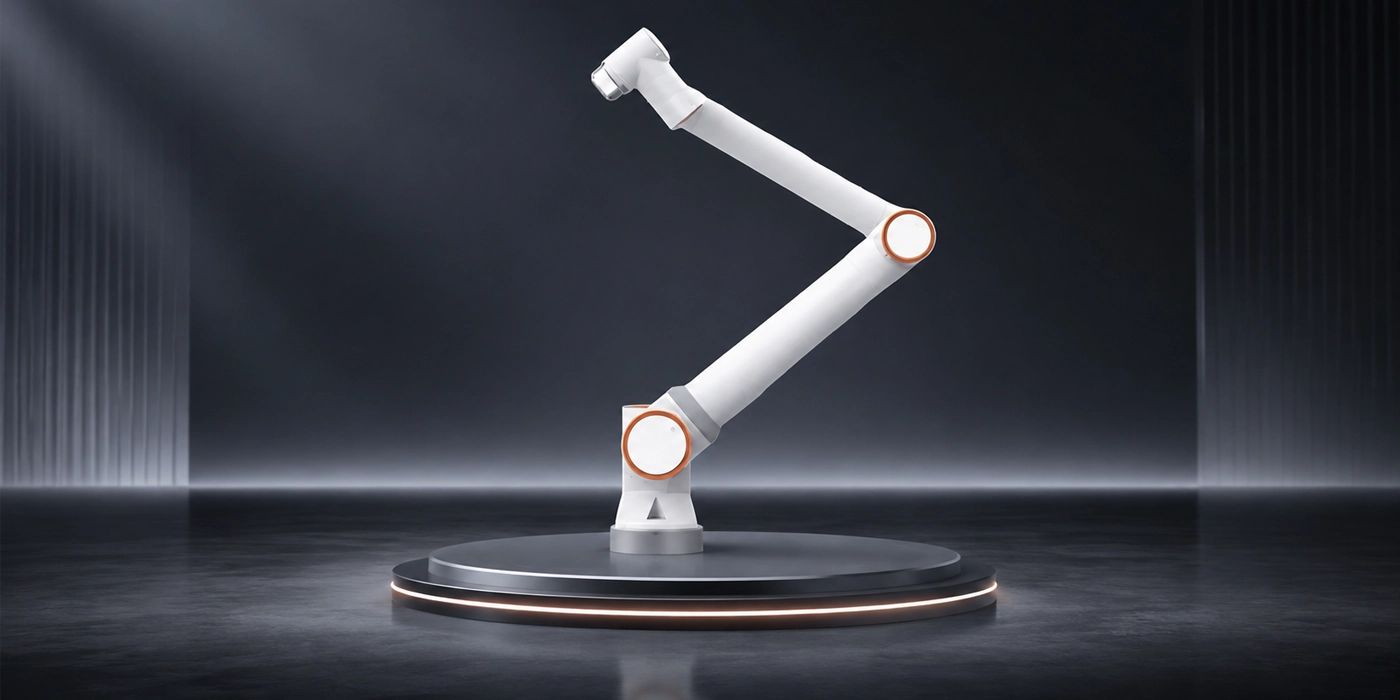

1.Robots Advantages: Fairino Robot – Light weight design, programming-free operation, user-friendly interface, and high stability.

Welding Control System Self-developed System : Highlights – Stable quality, improved efficiency, strong environmental adaptability, and easy operation.
