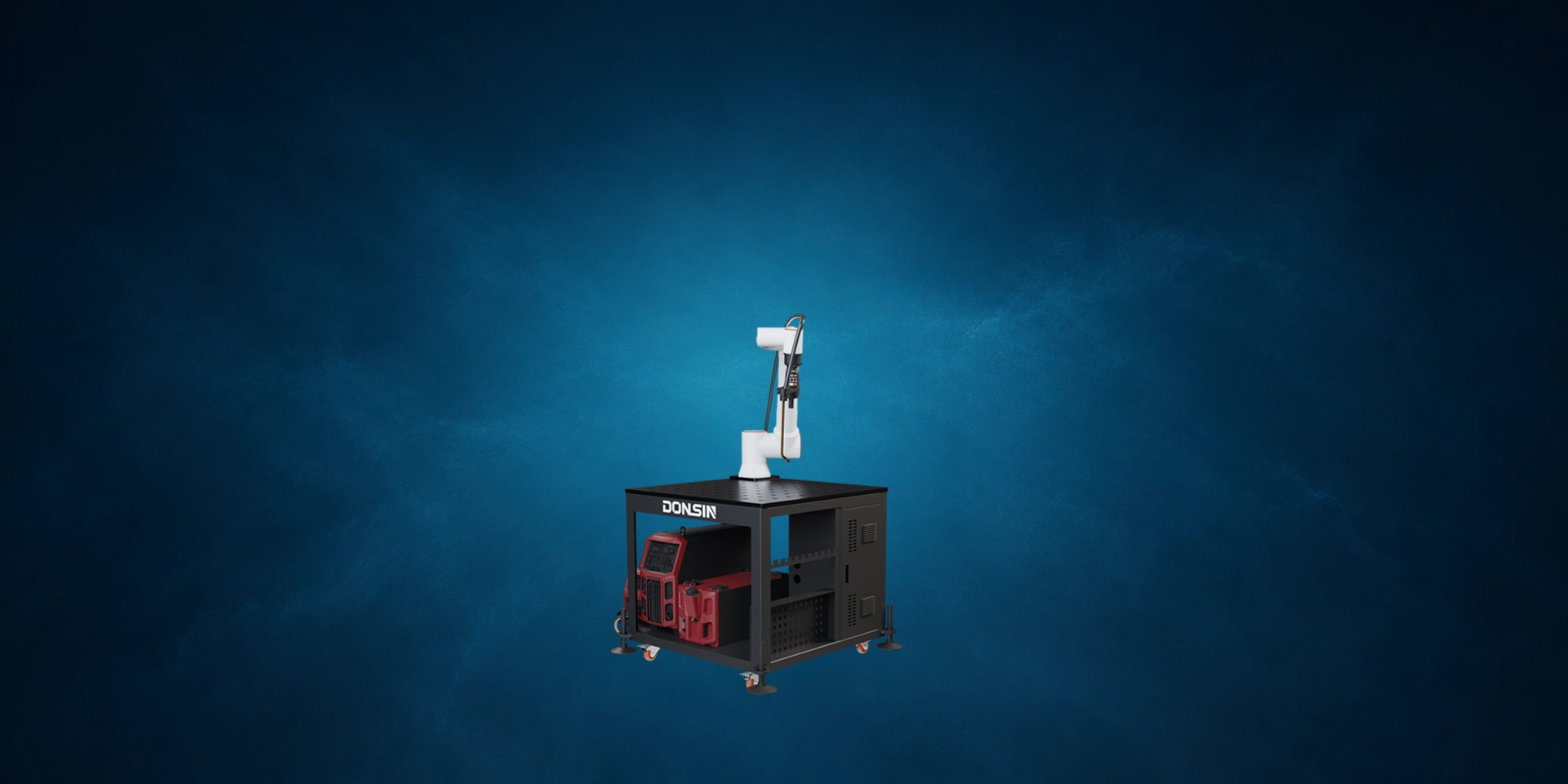

Collaborative Robot Welding-RW-Pro
DONSIN  RW-Pro
Human-Robot Interaction | Collaborative Symbiosis

2-Year Full Machine Warranty Service

Core Value Proposition

It is the intelligent solution for enterprises to tackle the "welder shortage", reduce costs and boost efficiency.

As a never tired "top-tier welder", it helps enterprises secure delivery schedules and win more orders.

Collaborative Robot Welding-RW


What Is It?

Collaborative robot welding is a highly automated solution that integrates collaborative robots with welding technology.

Featuring safe collaboration and user-friendly operation, it enables human-machine co-working in shared spaces.

Collaborative Robot Welding-RW-Pro

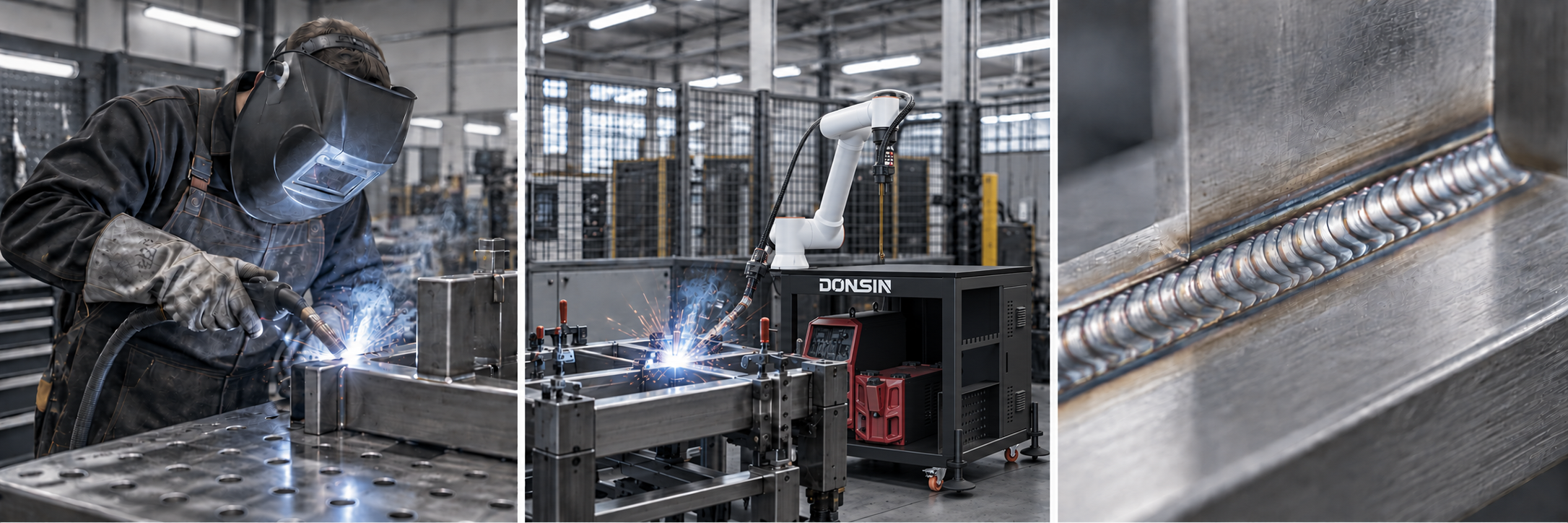

What Problems Does It Solve?

Collaborative robot welding addresses several critical challenges in the manufacturing industry: effectively alleviating the shortage of skilled welders and the pressure of skyrocketing labor costs; overcoming quality fluctuations in manual welding caused by factors like worker fatigue to ensure product consistency; and freeing workers from harsh welding environments (e.g., confined compartments, high temperatures, and harmful fumes) to guarantee workplace safety.

Collaborative Robot Welding-RW-Pro

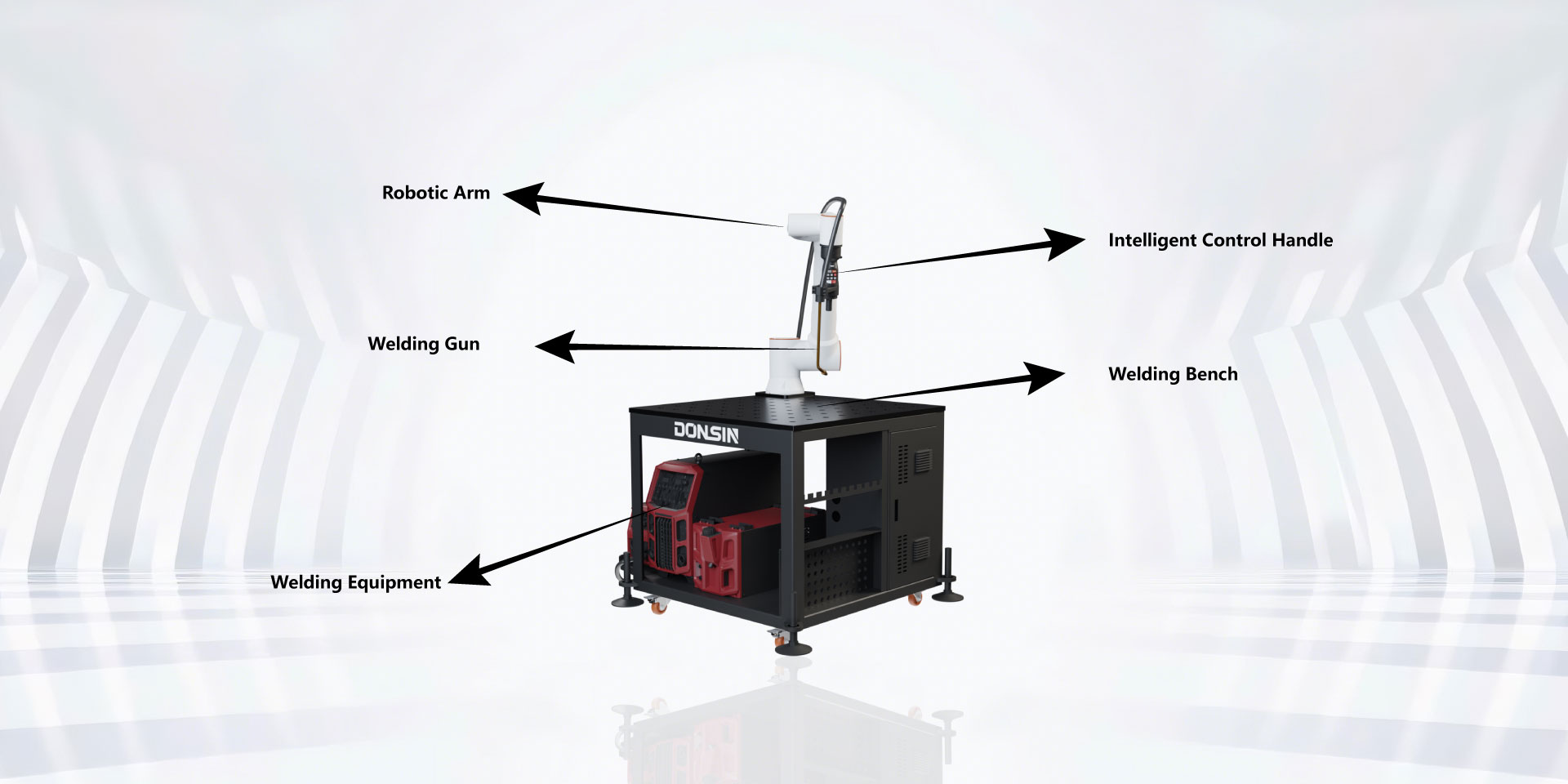

What Parts Does It Consist Of?

Collaborative Robot Welding-RW-Pro

What Are Its Core Selling Points?

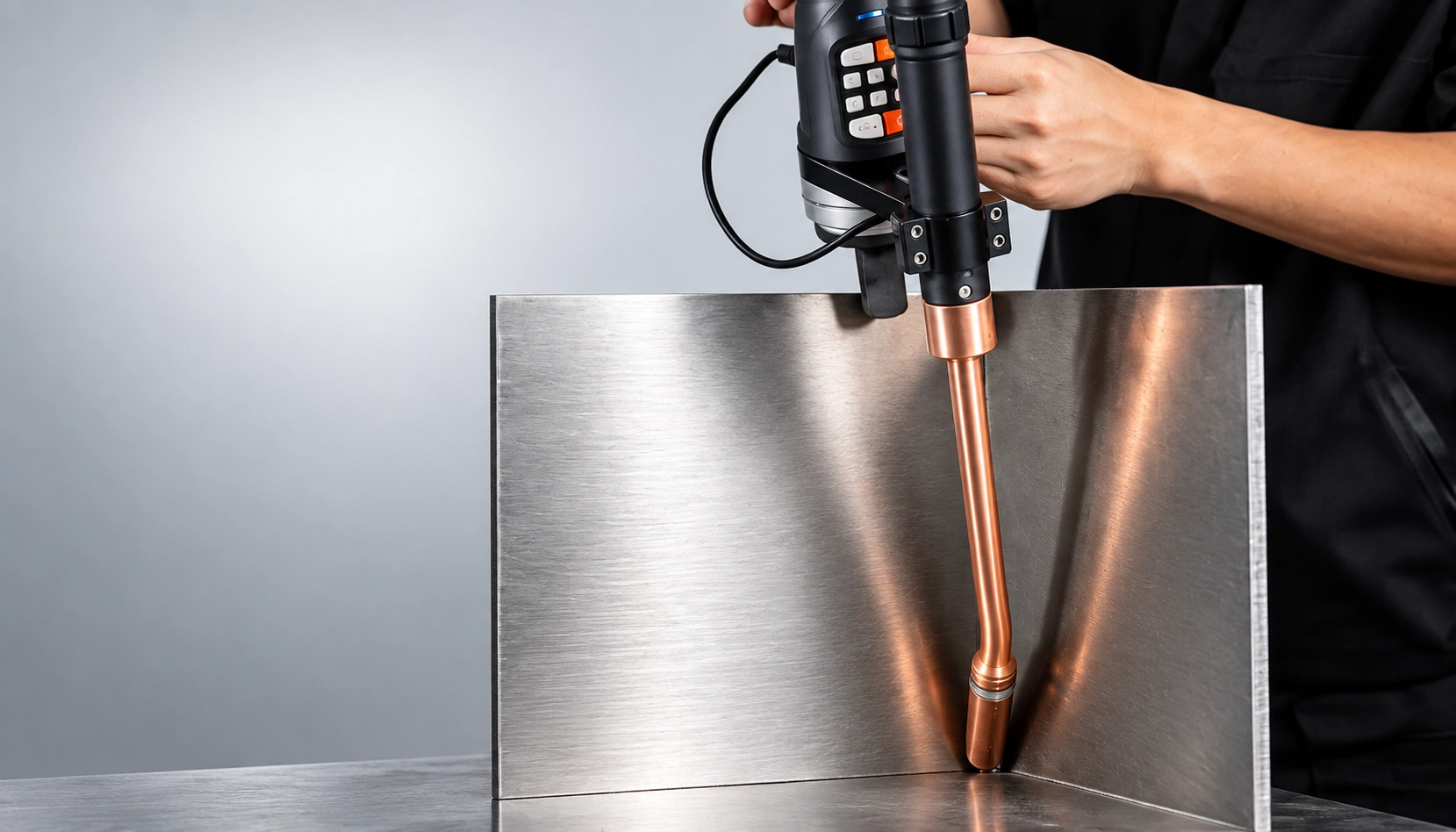

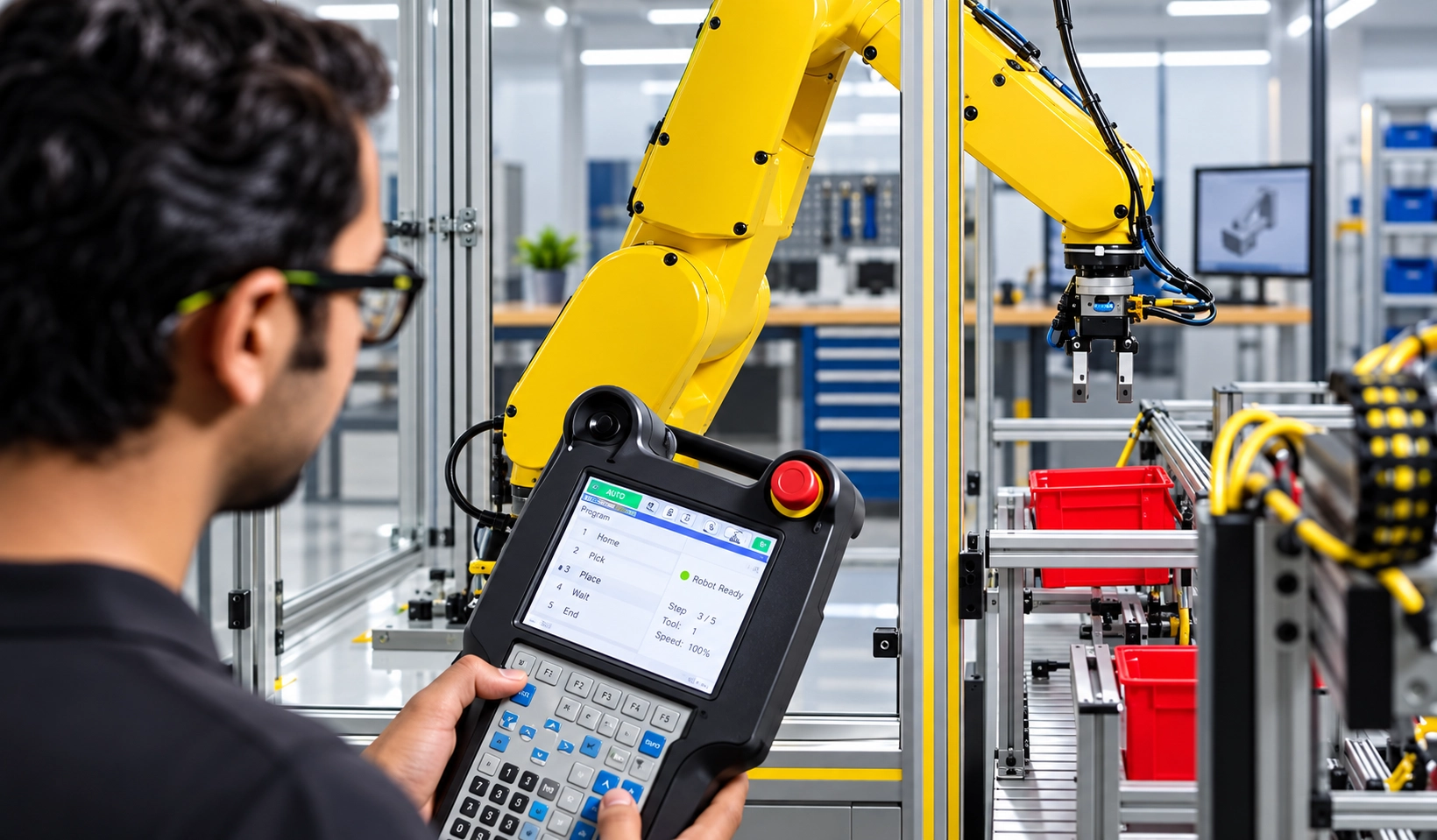

Extreme Ease of Use
Extreme Ease of Use
Extreme Ease of Use
Extreme Ease of Use
Extreme Ease of Use:

Adopting graphical programming and drag-and-drop teaching technologies, ordinary workers can master the operation after short-term training, which significantly lowers the threshold for automation.

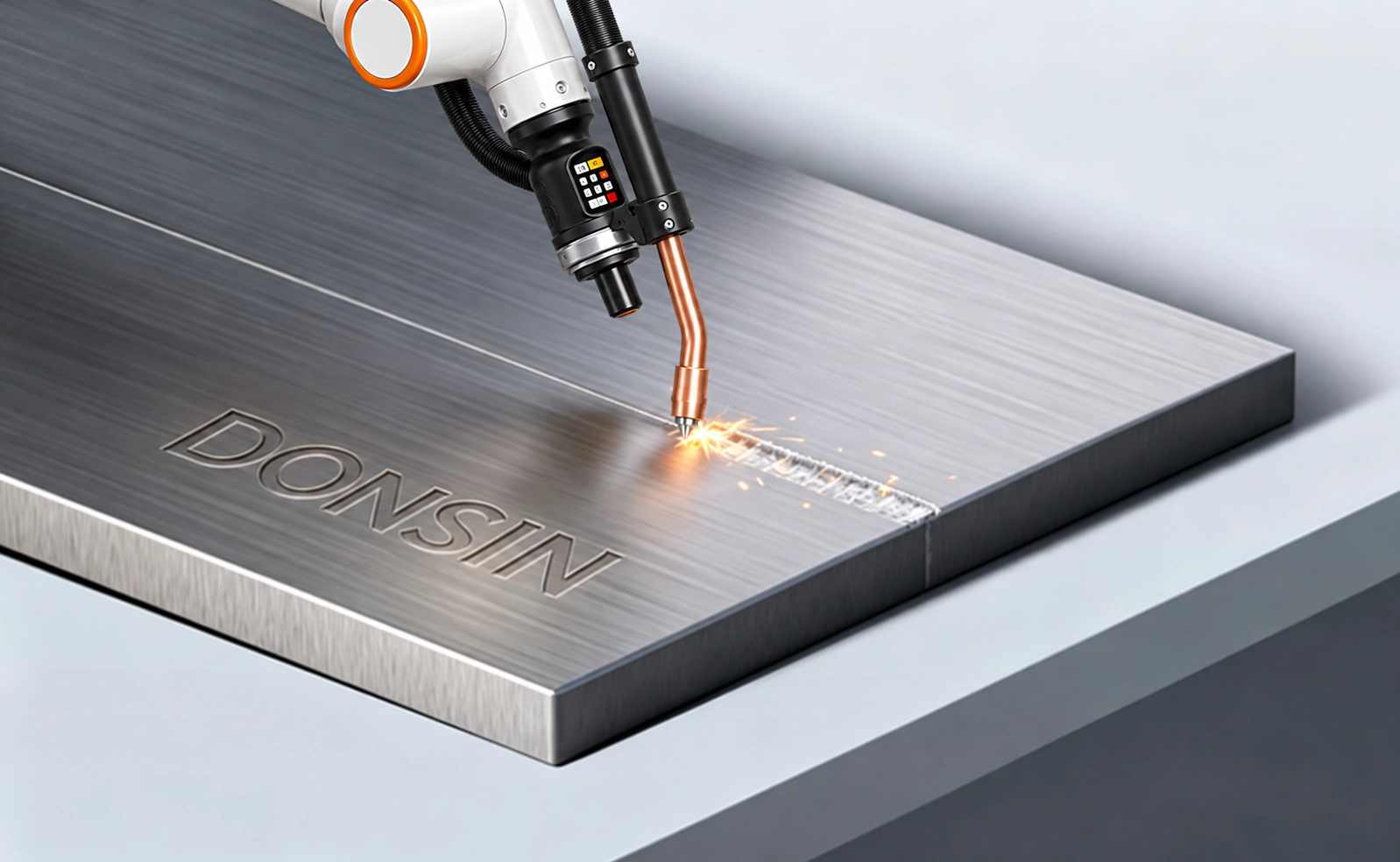

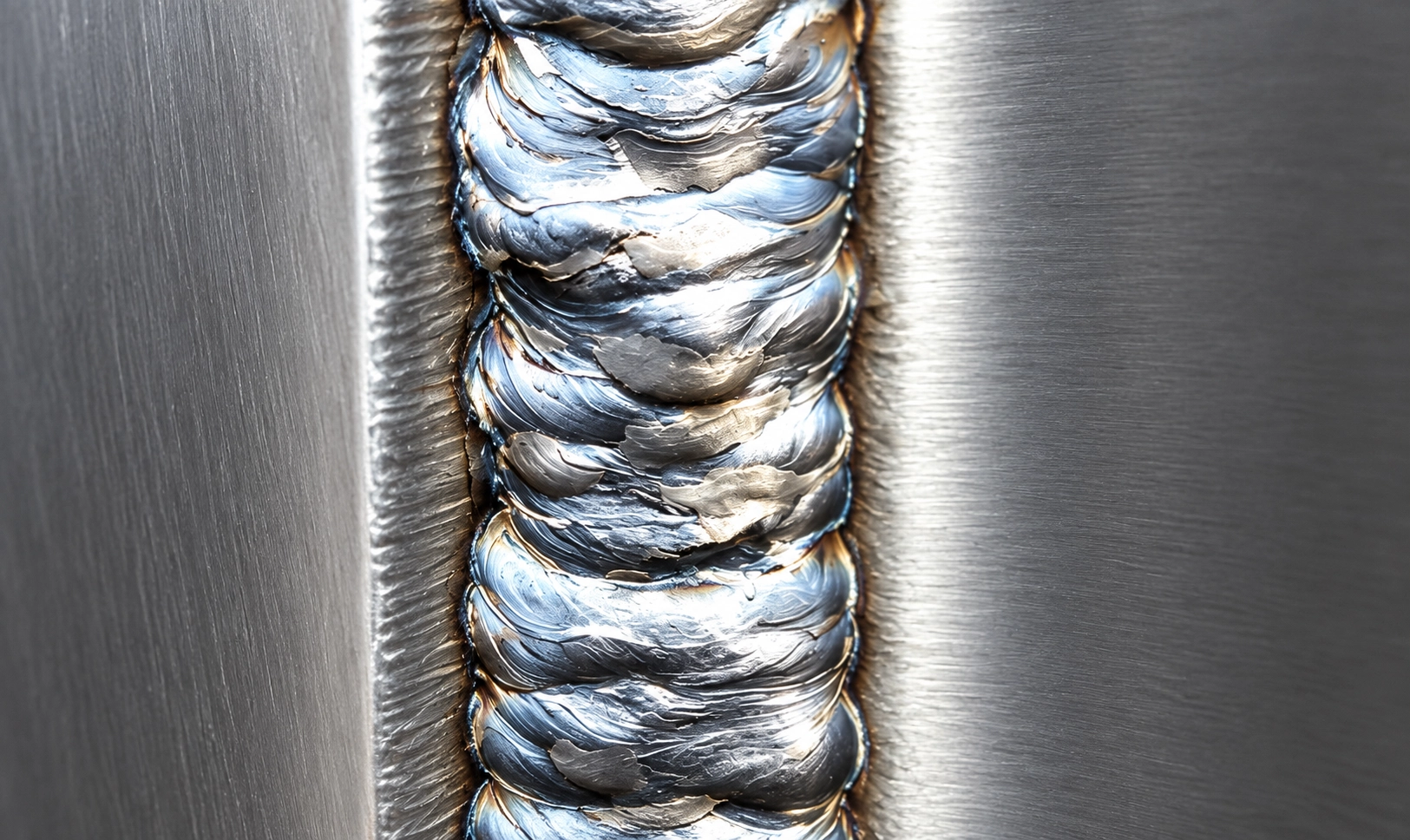

Stable and High Quality
Stable and High Quality
Stable and High Quality
Stable and High Quality
Stable and High Quality

Boasting high repeat positioning accuracy (up to ±0.02mm) and paired with weld seam tracking technology, it ensures perfect consistency of each weld seam and greatly improves the qualification rate.

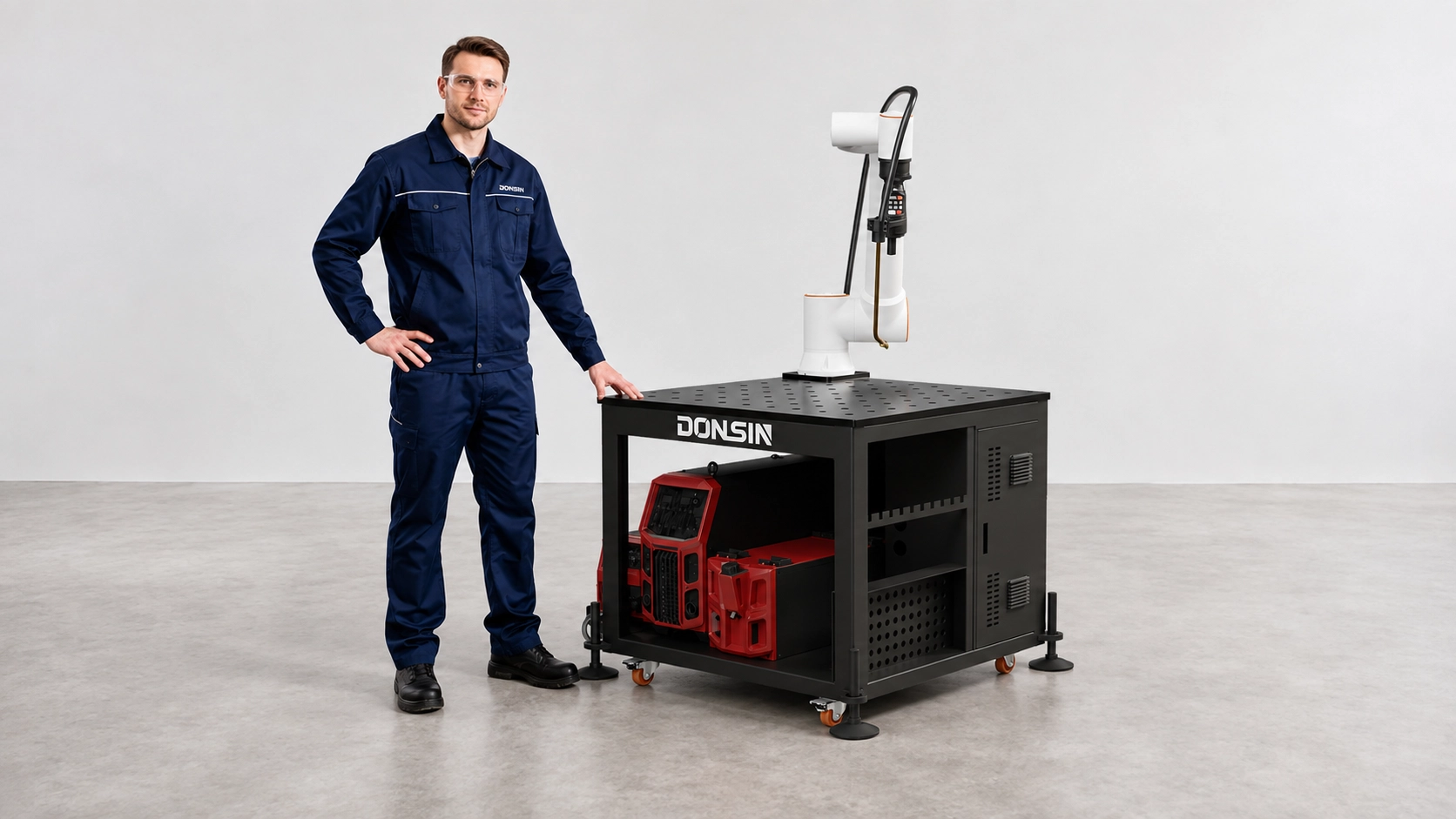

Safe Collaboration
Safe Collaboration
Safe Collaboration
Safe Collaboration
Safe Collaboration

Built-in safety functions enable the robot to automatically stop or decelerate upon contact with humans. Safety fences are generally not required, achieving human-machine integration.

Fast Return on Investment
Fast Return on Investment
Fast Return on Investment
Fast Return on Investment
Fast Return on Investment

With flexible deployment, it can be quickly integrated into existing production lines to boost efficiency (cases have shown an efficiency increase of up to 3 times), helping enterprises recover their investment rapidly.

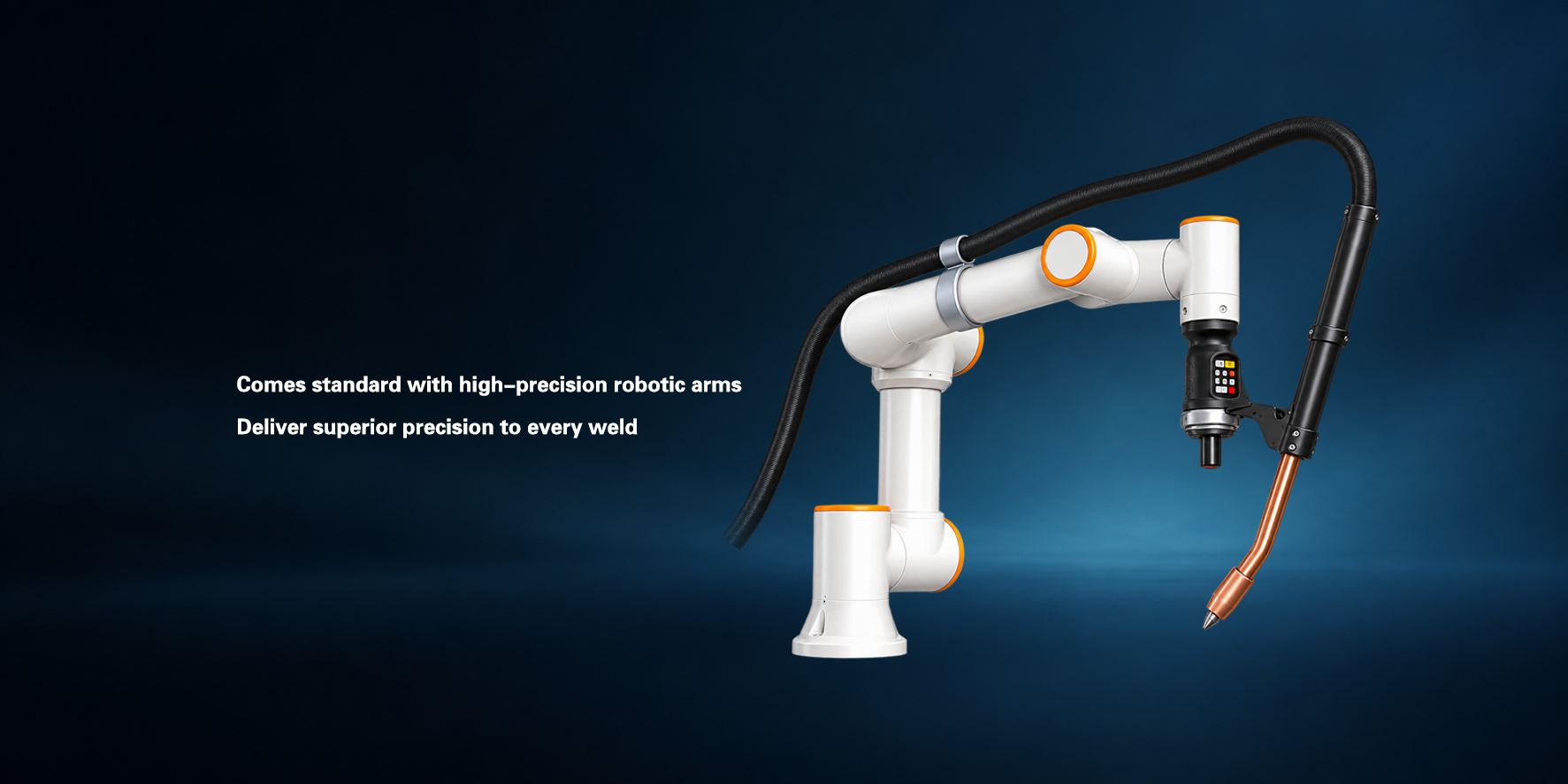

Robot Motion System

Collaborative Robot Welding-RW-Pro

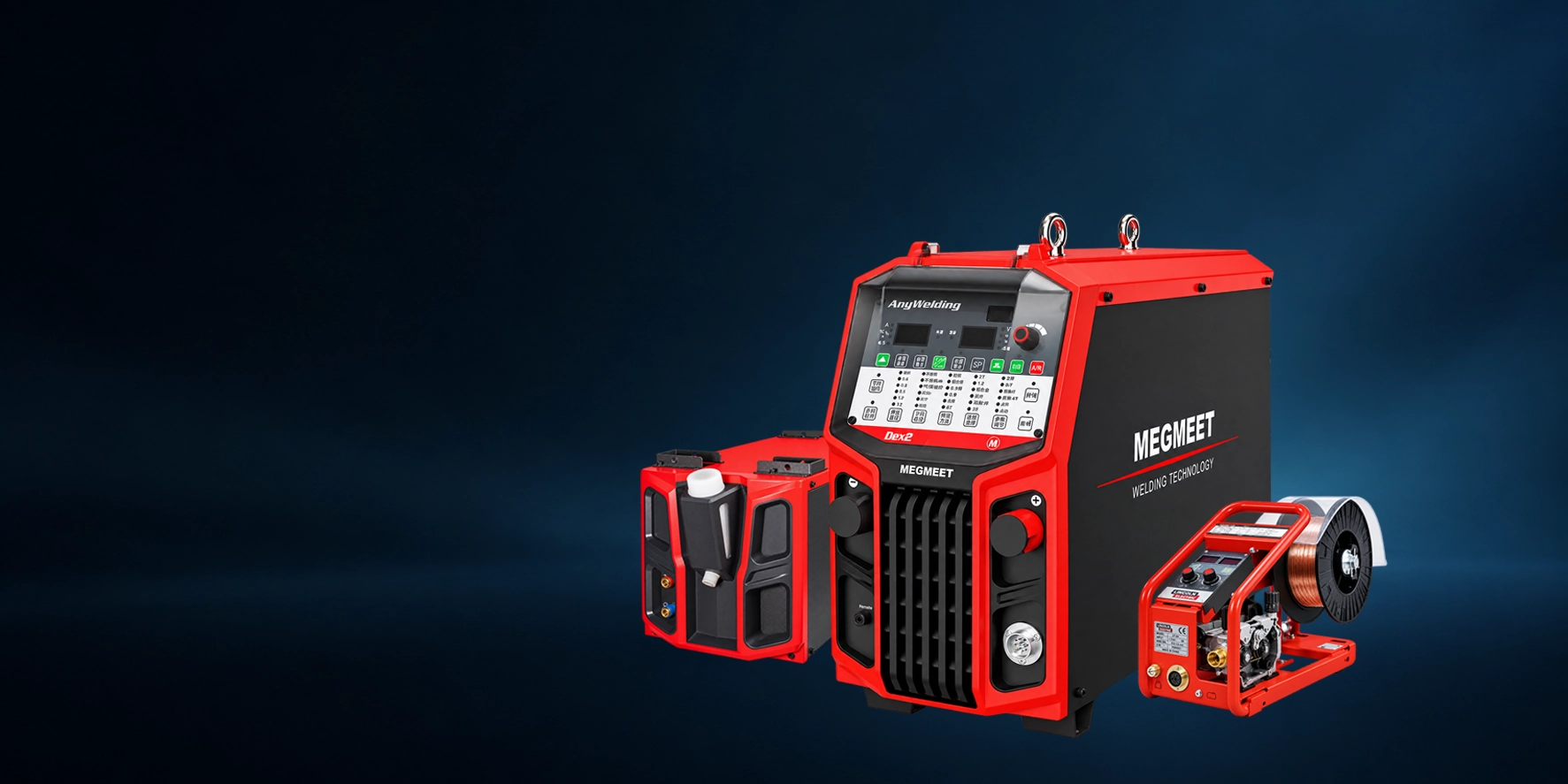

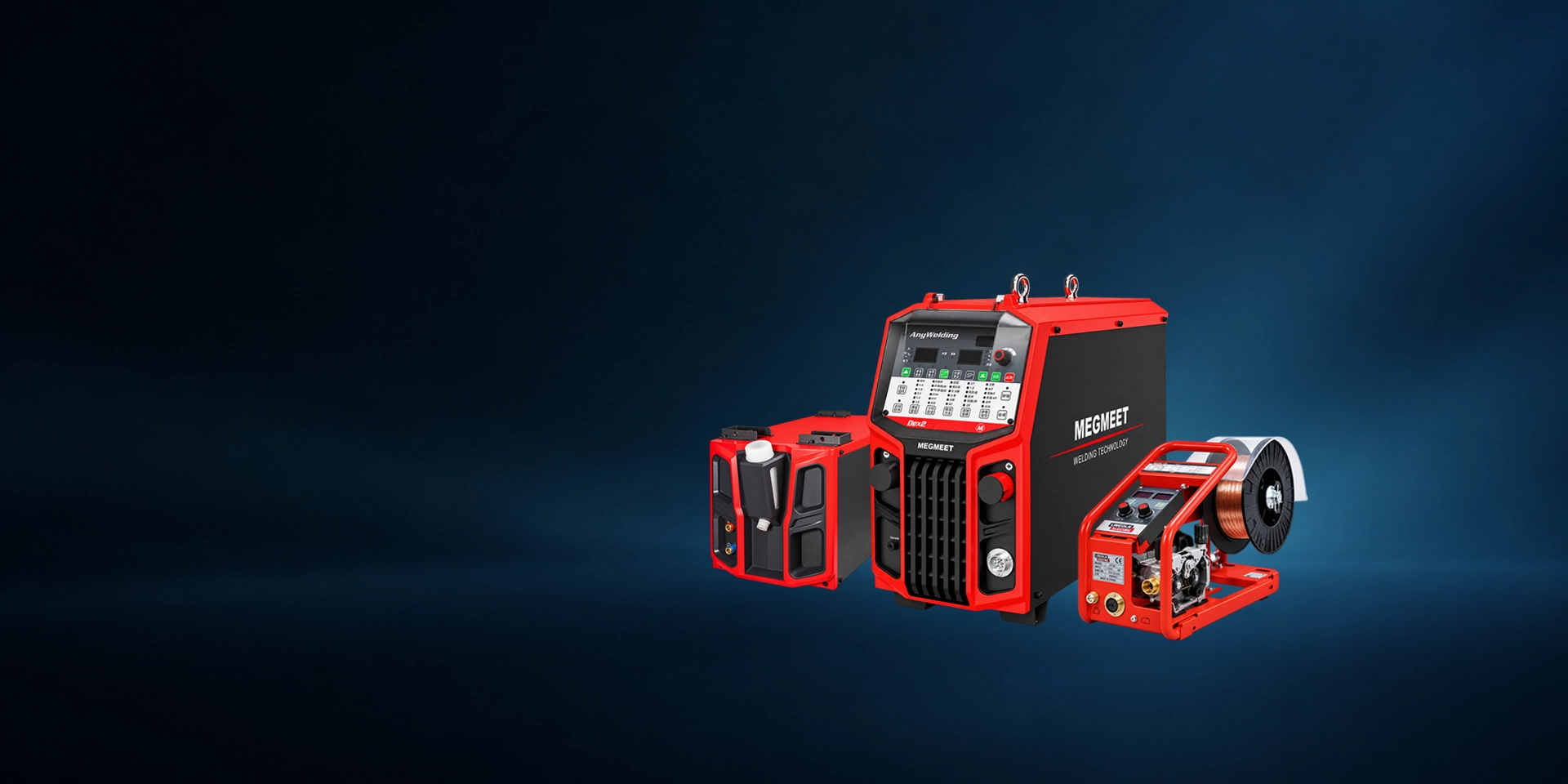

Welding Execution System
Welding Execution System

Megmeet Welding Machine

DEX2-500A-MPR

Double-Pulse Welding Machine

Pulse Welding Process

Supports Networked Group Control

DONSIN  RW-Pro
DONSIN  RW-Pro
DONSIN  RW-Pro

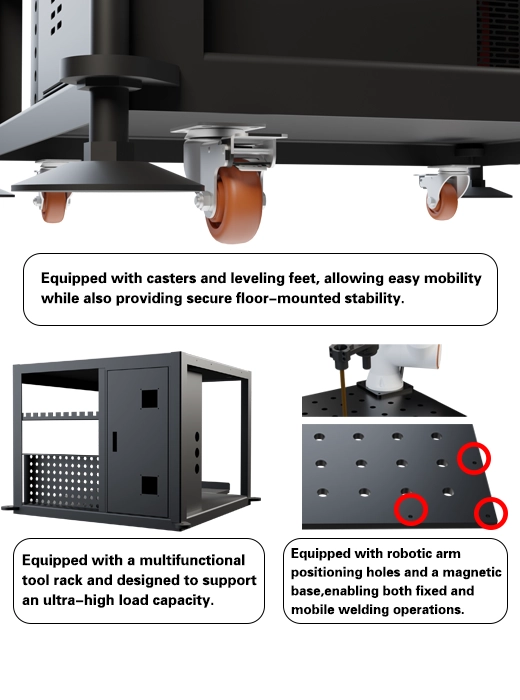

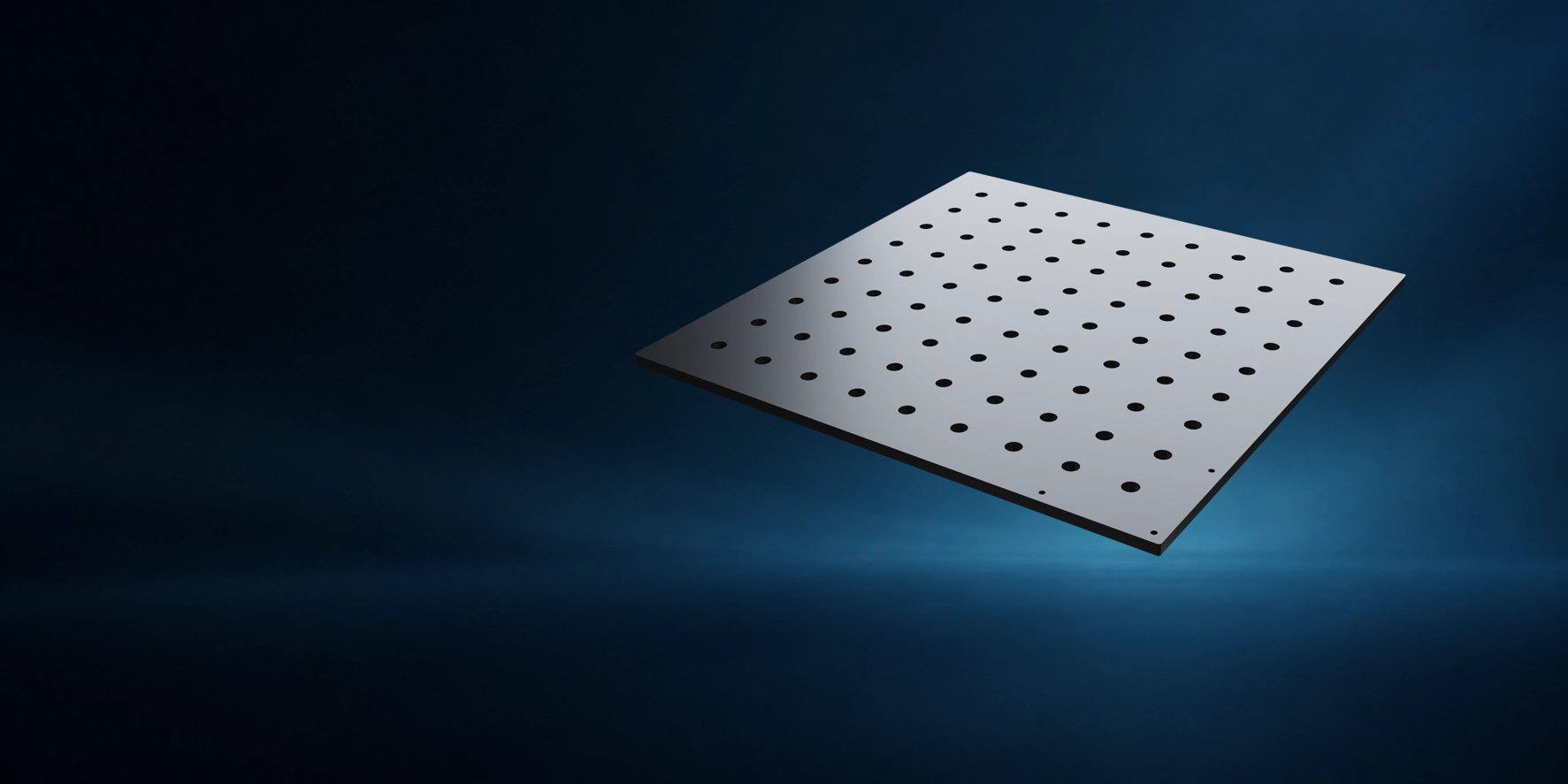

Standard Welding Platform

Thickness

20 mm

Material:Nitrided Steel Plate

Standard Hole Pattern

DONSIN  RW-Pro
DONSIN  RW-Pro

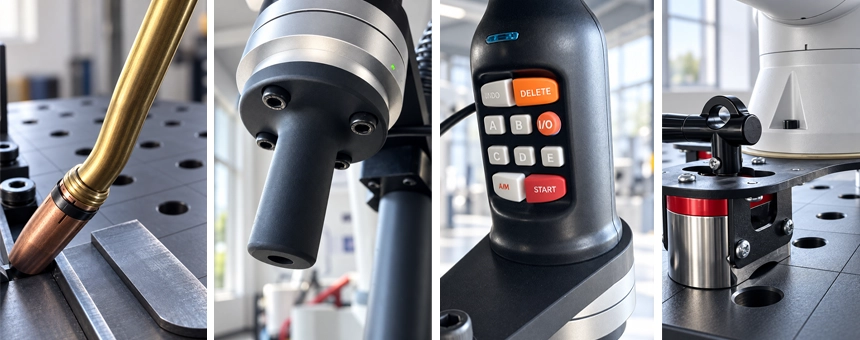

Make Welding More Stable Make Dragging Easier Make Operation More Convenient Make Mobility Simpler
No Installation Required, Plug and Play

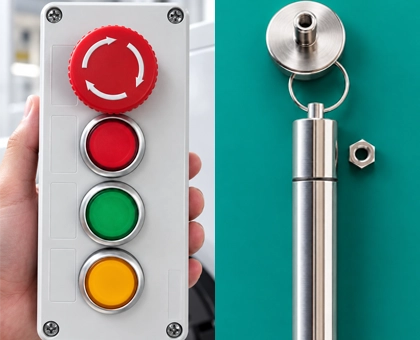

Easily perform repetitive welding operations, with a standard tool for repeated calibration.
What Are Its Application Scenarios?
Shipbuilding
Shipbuilding
Automotive Industry
Automotive Industry
Construction/Bridge
Construction/Bridge
Energy Equipment
Energy Equipment
New Energy
New Energy
Special Machinery
Special Machinery
Agricultural Equipment
Agricultural Equipment
Fitness Equipment
Fitness Equipment
Which Product Is Suitable For You?
Focusing on laser cleaning and collaborative robot welding,
reshaping the global manufacturing ecosystem
RW-Pro3
collaborative robot welding-RW-pro3
RW-Pro3 Learn More >
Robot Working Radius
622mm
Effective Welding Size
≤1100mm
Overall Dimensions
1600mm*730mm*1200mm
Packing Dimensions
Main Unit: Approx. 1770 × 1010 × 1470 mm Robot Arm FR3: Approx. 800 × 450 × 450 mm
Total Machine Weight (Excluding Manipulator)
395kg
Gross Weight (Robot Arm)
35kg
Net Weight (Excluding Robot Arm)
300kg
Robot Unit Weight
≈21kg
Repeat Positioning Accuracy
±0.02mm
The Wire Feeder Is Farther From The Welding Gun
3m (Customizable)
Wire Feeder To Main Body Line
9.5m
Typical Tcp Speed (End-Point Operating Speed)
1m/s
Protection Level
IP54/IP65
Standard Welding Power Source
Evo 500HPR
Rated Output Current
500A
Rated Power
≈28KW
Welding Power Source Weight
51.7kg
Cooling Method
Water Cooling
Adapted Welding Method
CO₂/MAG/MIG
Weldable Materials
Capable of delivering high-quality welding for carbon steel and stainless steel application
Material & Welding Wire Compatibility
Solid Wire Carbon Steel, Flux-Cored Carbon Steel, Solid Wire Stainless Steel, Flux-Cored Stainless Steel
Input Frequency
45~65Hz
Power Supply Requirements
Three-phase 380 V (±15%)
RW-Pro5
collaborative robot welding-RW-pro5
RW-Pro5 Learn More >
Robot Working Radius
922mm
Effective Welding Size
≤1800mm
Overall Dimensions
1600mm*730mm*1200mm
Packing Dimensions
Main Unit: Approx. 1770 × 1010 × 1470 mm
Total Machine Weight (Excluding Manipulator)
395kg
Gross Weight (Robot Arm)
55kg
Net Weight (Excluding Robot Arm)
300kg
Robot Unit Weight
≈33kg
Repeat Positioning Accuracy
±0.02mm
The Wire Feeder Is Farther From The Welding Gun
3m (Customizable)
Wire Feeder To Main Body Line
9.5m
Typical Tcp Speed (End-Point Operating Speed)
1m/s
Protection Level
IP54/IP65
Standard Welding Power Source
Evo 500HPR
Rated Output Current
500A
Rated Power
≈28KW
Welding Power Source Weight
51.7kg
Cooling Method
Water Cooling
Adapted Welding Method
CO₂/MAG/MIG
Weldable Materials
Capable of delivering high-quality welding for carbon steel and stainless steel application
Material & Welding Wire Compatibility
Solid Wire Carbon Steel, Flux-Cored Carbon Steel, Solid Wire Stainless Steel, Flux-Cored Stainless Steel
Input Frequency
45~65Hz
Power Supply Requirements
Three-phase 380 V (±15%)

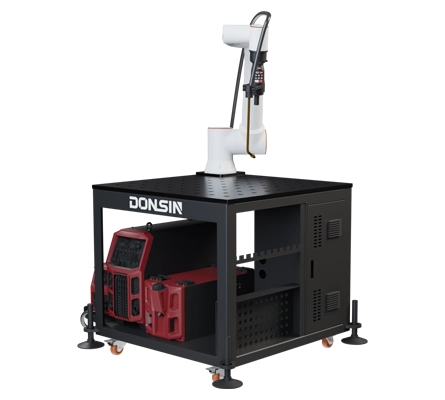

RW-Pro10
collaborative robot welding-RW-pro10
RW-Pro10 Learn More >
Robot Working Radius
1400mm
Effective Welding Size
≤2600mm
Overall Dimensions
1600mm*730mm*1200mm
Packing Dimensions
Main Unit: Approx. 1770 × 1010 × 1470 mm Robot Arm FR10: Approx. 1000 × 500 × 500 mm
Total Machine Weight (Excluding Manipulator)
395kg
Gross Weight (Robot Arm)
61kg
Net Weight (Excluding Robot Arm)
300kg
Robot Unit Weight
≈40kg
Repeat Positioning Accuracy
±0.05mm
The Wire Feeder Is Farther From The Welding Gun
3m (Customizable)
Wire Feeder To Main Body Line
9.5m
Typical Tcp Speed (End-Point Operating Speed)
1.5m/s
Protection Level
IP54/IP65
Standard Welding Power Source
Evo 500HPR
Rated Output Current
500A
Rated Power
≈28KW
Welding Power Source Weight
51.7kg
Cooling Method
Water Cooling
Adapted Welding Method
CO₂/MAG/MIG
Weldable Materials
Capable of delivering high-quality welding for carbon steel and stainless steel application
Material & Welding Wire Compatibility
Solid Wire Carbon Steel, Flux-Cored Carbon Steel, Solid Wire Stainless Steel, Flux-Cored Stainless Steel
Input Frequency
45~65Hz
Power Supply Requirements
Three-phase 380 V (±15%)
RW-Pro20
collaborative robot welding-RW-pro20
RW-Pro20 Learn More >
Robot Working Radius
1900mm
Effective Welding Size
≤3700mm
Overall Dimensions
1600mm*730mm*1200mm
Packing Dimensions
Main Unit: Approx. 1770 × 1010 × 1470 mm Robot Arm FR20: Approx. 1100 × 500 × 500 mm
Total Machine Weight (Excluding Manipulator)
395kg
Gross Weight (Robot Arm)
61kg
Net Weight (Excluding Robot Arm)
300kg
Robot Unit Weight
≈75kg
Repeat Positioning Accuracy
±0.1mm
The Wire Feeder Is Farther From The Welding Gun
3m (Customizable)
Wire Feeder To Main Body Line
9.5m
Typical Tcp Speed (End-Point Operating Speed)
2m/s
Protection Level
IP54/IP65
Standard Welding Power Source
Evo 500HPR
Rated Output Current
500A
Rated Power
≈28KW
Welding Power Source Weight
51.7kg
Cooling Method
Water Cooling
Adapted Welding Method
CO₂/MAG/MIG
Weldable Materials
Capable of delivering high-quality welding for carbon steel and stainless steel application
Material & Welding Wire Compatibility
Solid Wire Carbon Steel, Flux-Cored Carbon Steel, Solid Wire Stainless Steel, Flux-Cored Stainless Steel
Input Frequency
45~65Hz
Power Supply Requirements
Three-phase 380 V (±15%)
Intelligent Welding In The New Era
RW Series - Collaborative Welding Robot

Hello! Welcome to the RW series intelligent welding solutions. Consult now for exclusive solutions!

Get A Quote
Intelligent Welding In The New Era
Core Component Advantages

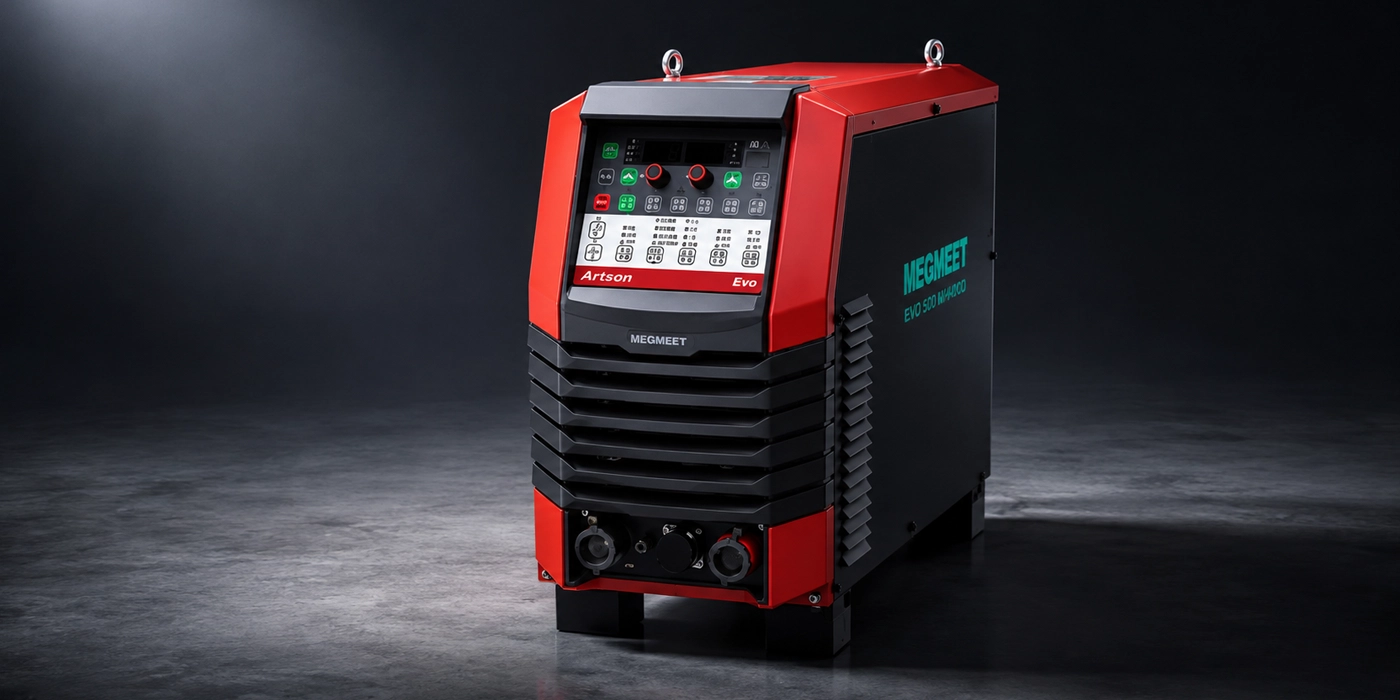

Welding Machine System:Advantages: Megmeet Welding Machines – Ultra-low spatter, high efficiency & energy-saving performance, and superior reliability.
Welding Machine System:Advantages: Megmeet Welding Machines – Ultra-low spatter, high efficiency & energy-saving performance, and superior reliability.

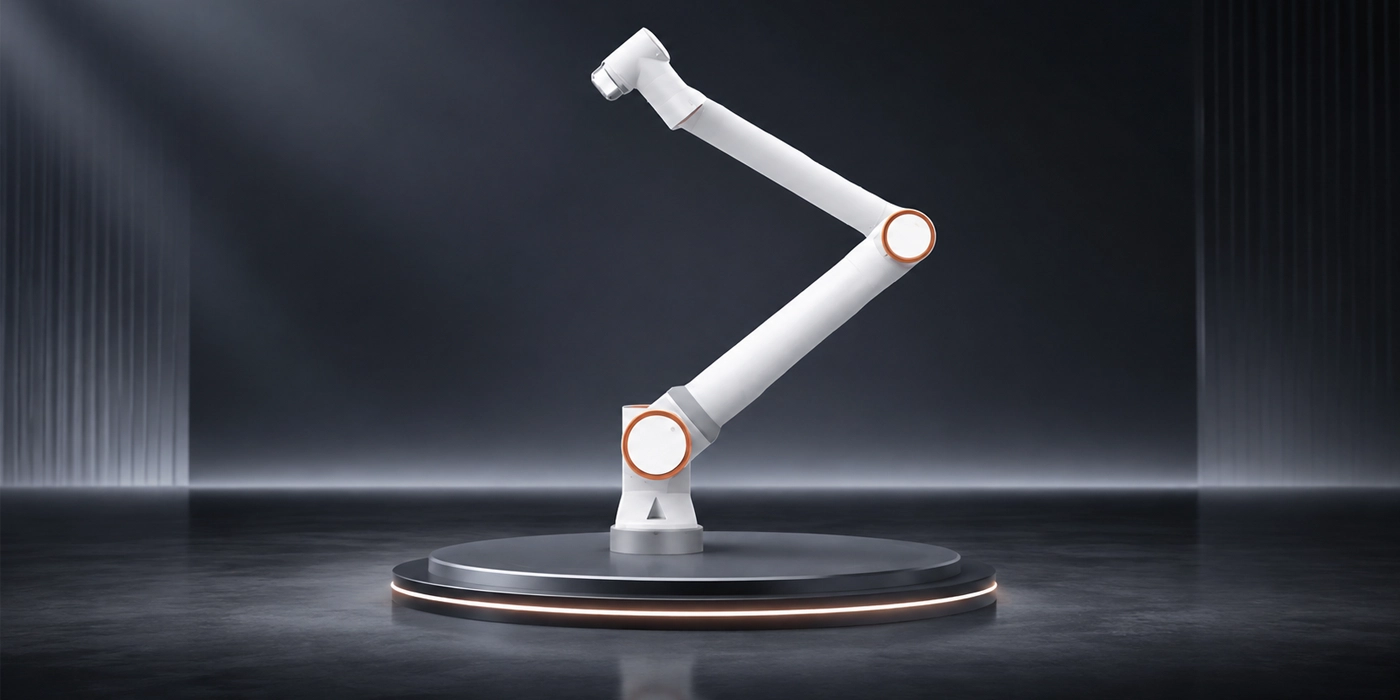

Robots Advantages: Light weight design, programming-free operation, user-friendly interface, and high stability.
Robots Advantages: Light weight design, programming-free operation, user-friendly interface, and high stability.
Welding Control System Self-developed System : Highlights – Stable quality, improved efficiency, strong environmental adaptability, and easy operation.
Welding Control System Self-developed System : Highlights – Stable quality, improved efficiency, strong environmental adaptability, and easy operation.

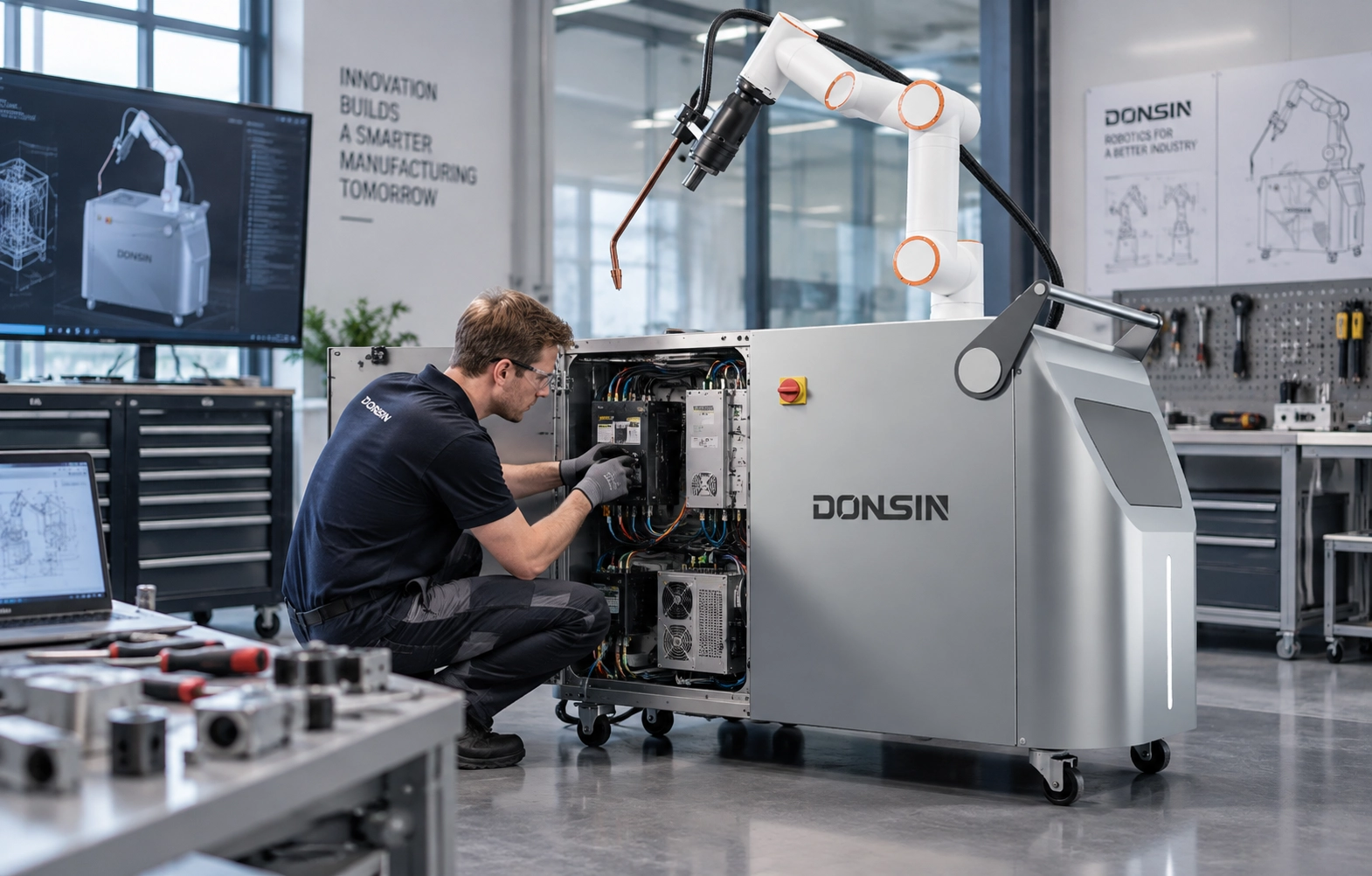

Core Technologies
Core Technologies

Oscillating Welding

Arc Tracking

Automatic Identification of Flat Welding/Vertical Welding

Welding Interruption Recovery

Step Welding & Multi-layer & Multi-pass Welding


Product Highlights
Product Highlights

No need to set protective barriers within the safety zone.

Supports manual intervention and commissioning operations.



Process Expert Database
Process Expert Database

10+ welding parameter libraries

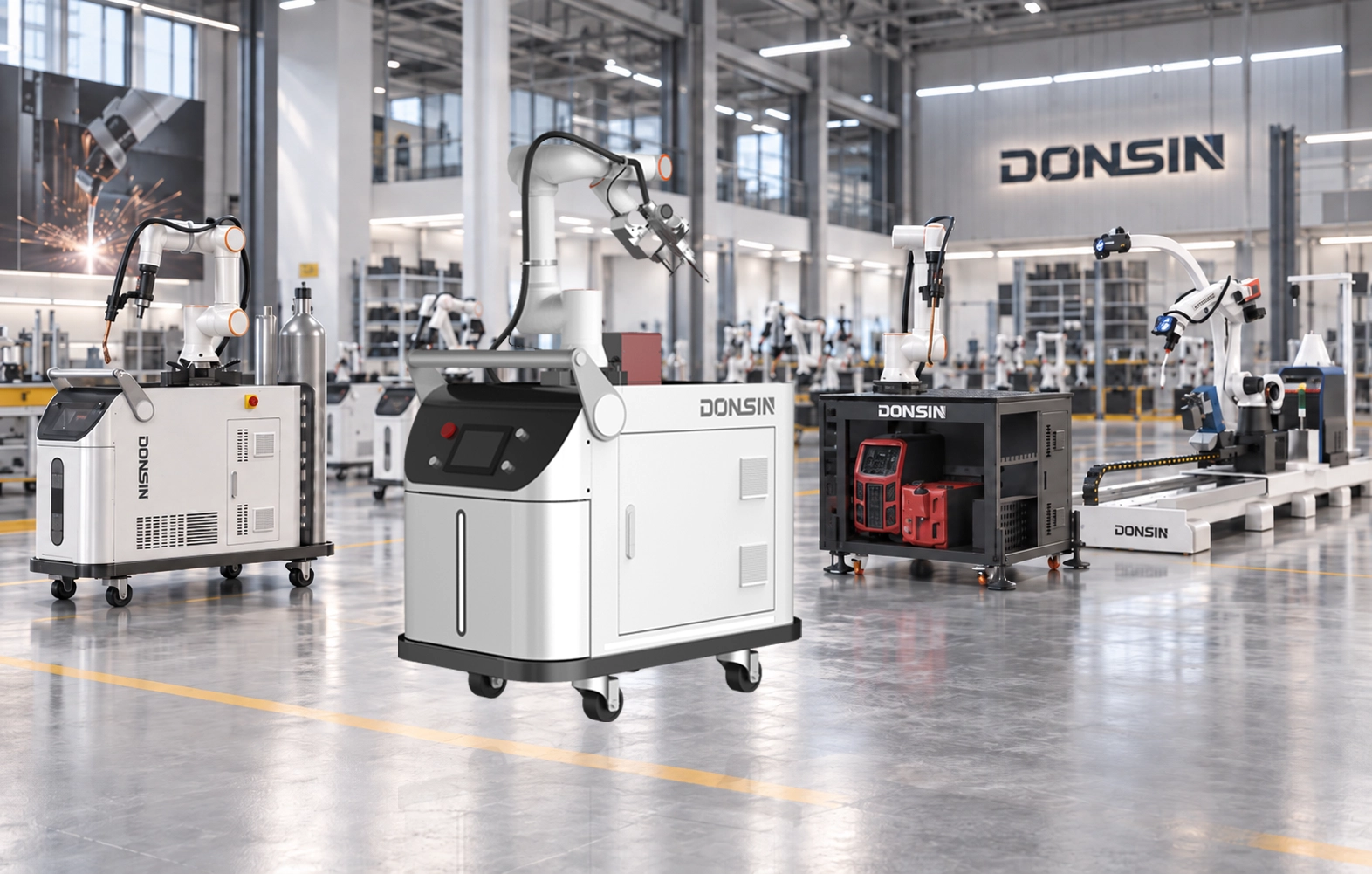

Flexible Production
Flexible Production

6-axis joint design with a maximum working radius of 1.6 meters, and optional load capacity ranging from 3 kg to 10 kg.

Born of Creation
Inspired by Imagination
Learn More
Service And Support
3-Year Warranty
2-Year Warranty
2-year warranty for the entire machine
7 × 24 Response
7 × 24 Response
Online technical support network
Service And Support
Application Scenarios
Application Scenarios
