The in-depth integration of industrial design and industrial aesthetics is reshaping the product value system. This integration is not only reflected in the perfect balance between function and form, but also endows industrial products with emotional resonance and cultural connotation through consumer-grade product design innovation, achieving the dual upgrading of "intelligent manufacturing + quality manufacturing".

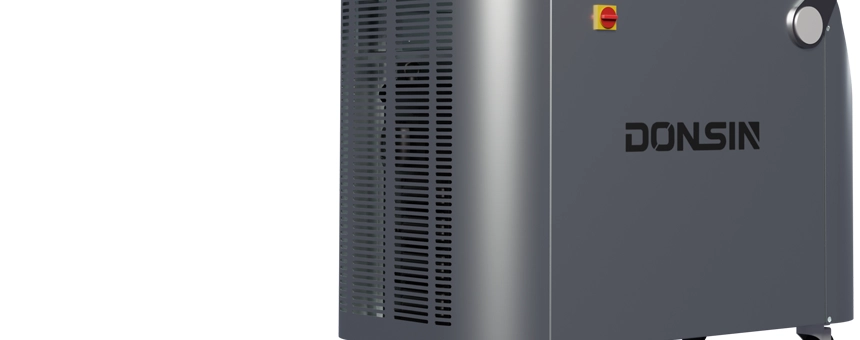

The welder features a visualized design for parameter adjustment and a dust-proof structure in its appearance, enabling real-time monitoring of working status.

Front-end quick removal of the protective cover.

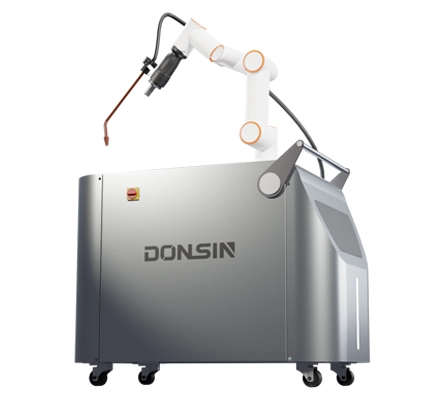

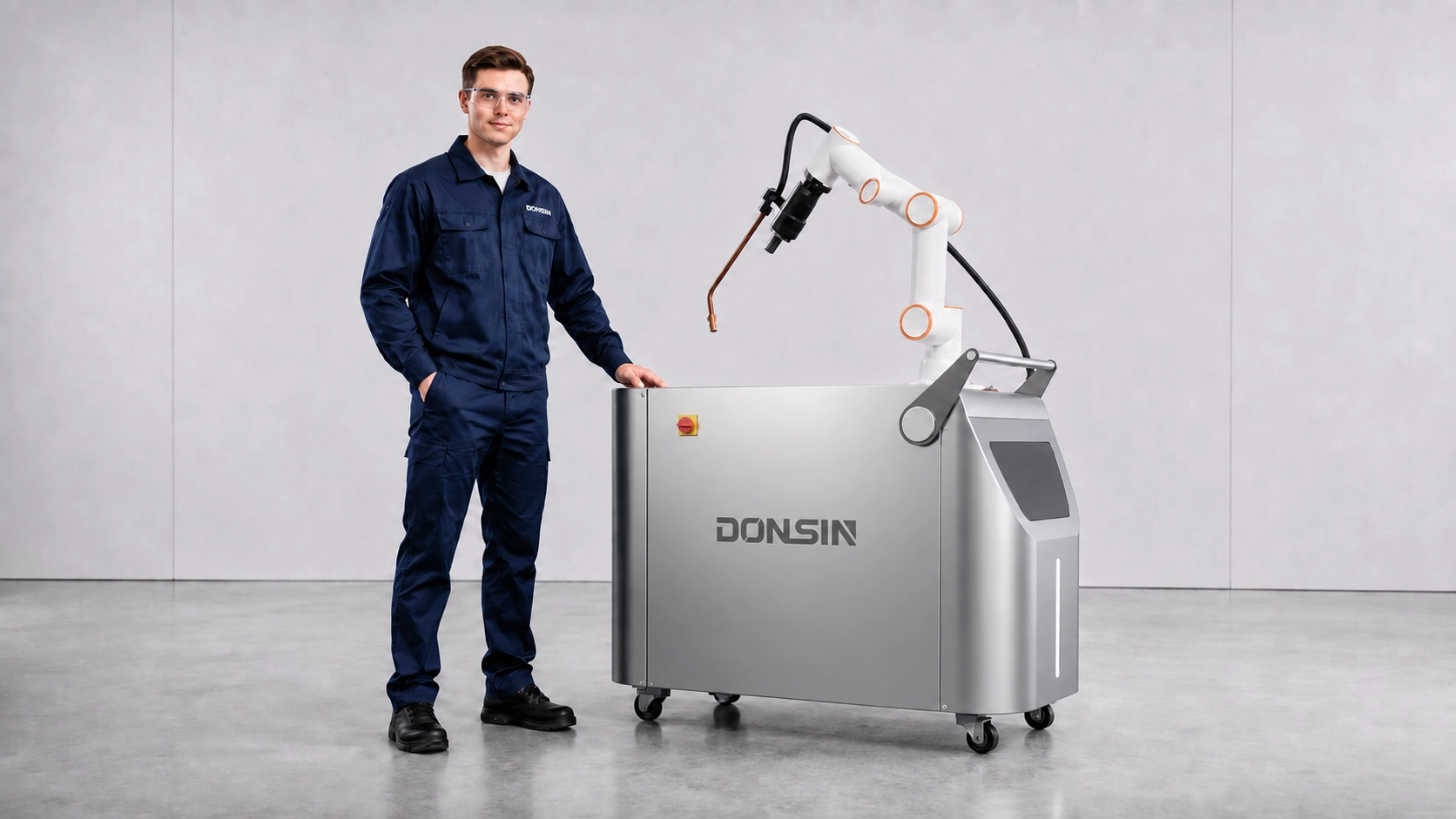

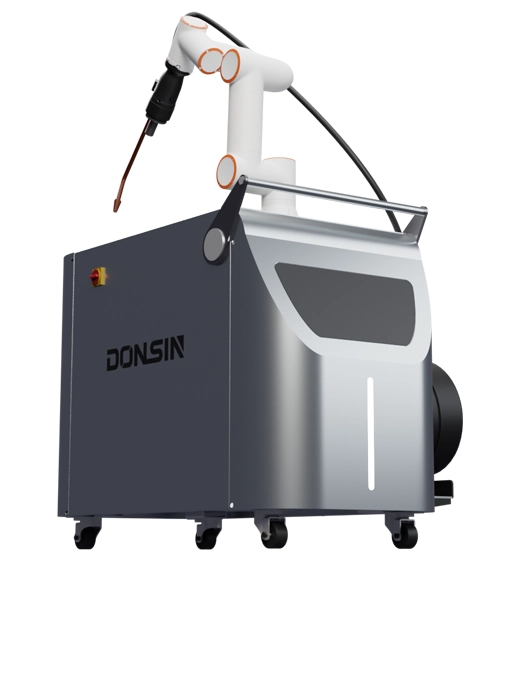

With a streamlined surface design and modular appearance, the robot presents a futuristic form that combines a sense of technology with industrial aesthetics.

Performance Is King
Fearless Of Challenges

TCP speed

1 .5 m/s

Welding current

500 A

Repeat positioning accuracy

±0 .02 mm

Protection level

IP54/IP65

Performance Data

Focusing on laser cleaning and collaborative robot welding, reshaping the global manufacturing ecosystem

Minimum power

17 KW

Continuous operating time

36 h

Overall lifespan

30000 h

Which Product Is Suitable For You?

Focusing on laser cleaning and collaborative robot welding,
reshaping the global manufacturing ecosystem

RW-Smart3

collaborative robot welding-RW-Smart5

Learn More >

Robot Working Radius

622mm

Effective Welding Size

≤1100mm

Overall Dimensions

1600mm*730mm*1200mm

Packing Dimensions

Main Unit: Approx. 1770 × 1010 × 1470 mm Robot Arm FR3: Approx. 800 × 450 × 450 mm

Total Machine Weight (Excluding Manipulator)

415kg

Gross Weight (Robot Arm)

35kg

Net Weight (Excluding Robot Arm)

320kg

Robot Unit Weight

≈21kg

Repeat Positioning Accuracy

±0.02mm

The Wire Feeder Is Farther From The Welding Gun

3m (Customizable)

Wire Feeder To Main Body Line

9.5m

Typical Tcp Speed (End-Point Operating Speed)

1m/s

Protection Level

IP54/IP65

Standard Welding Power Source

Ehave2 CM

Rated Output Current

350A/500A

Rated Power

≈25KW/≈16KW

Welding Power Source Weight

34kg

Cooling Method

‌Air Cooling

Adapted Welding Method

CO₂/MAG/MIG

Weldable Materials

Suitable for high-quality welding of carbon steel and stainless steel

Material & Welding Wire Compatibility

Solid carbon steel, flux-cored carbon steel, solid stainless steel, flux-cored stainless steel

Input Frequency

45～65Hz

Power Supply Requirements

Three-phase 380 V (±15%)

Intelligent Welding In The New Era

RW Series - Collaborative Welding Robot

Hello! Welcome to the RW series intelligent welding solutions. Consult now for exclusive solutions!

Get A Quote

Core Component Advantages

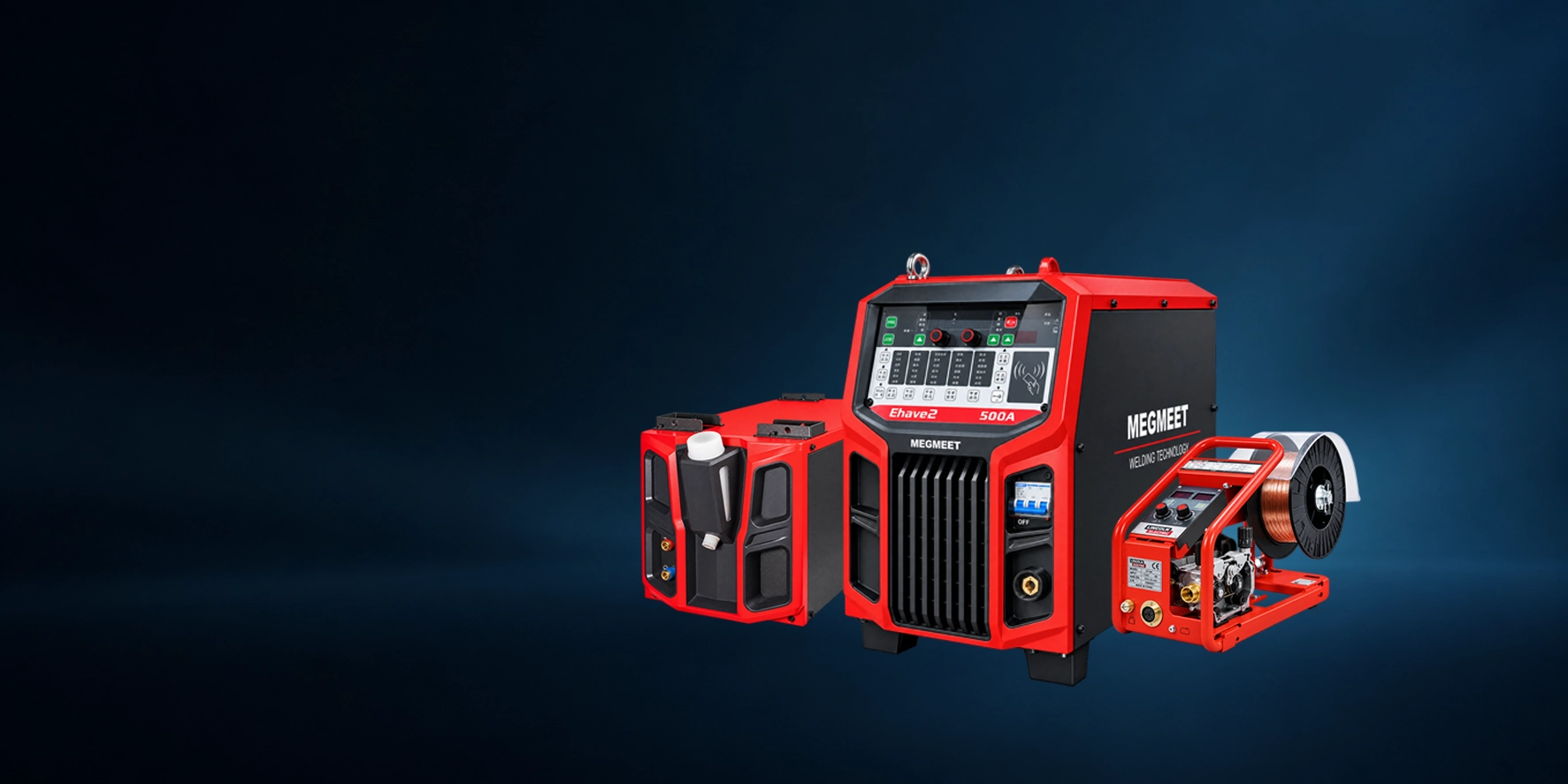

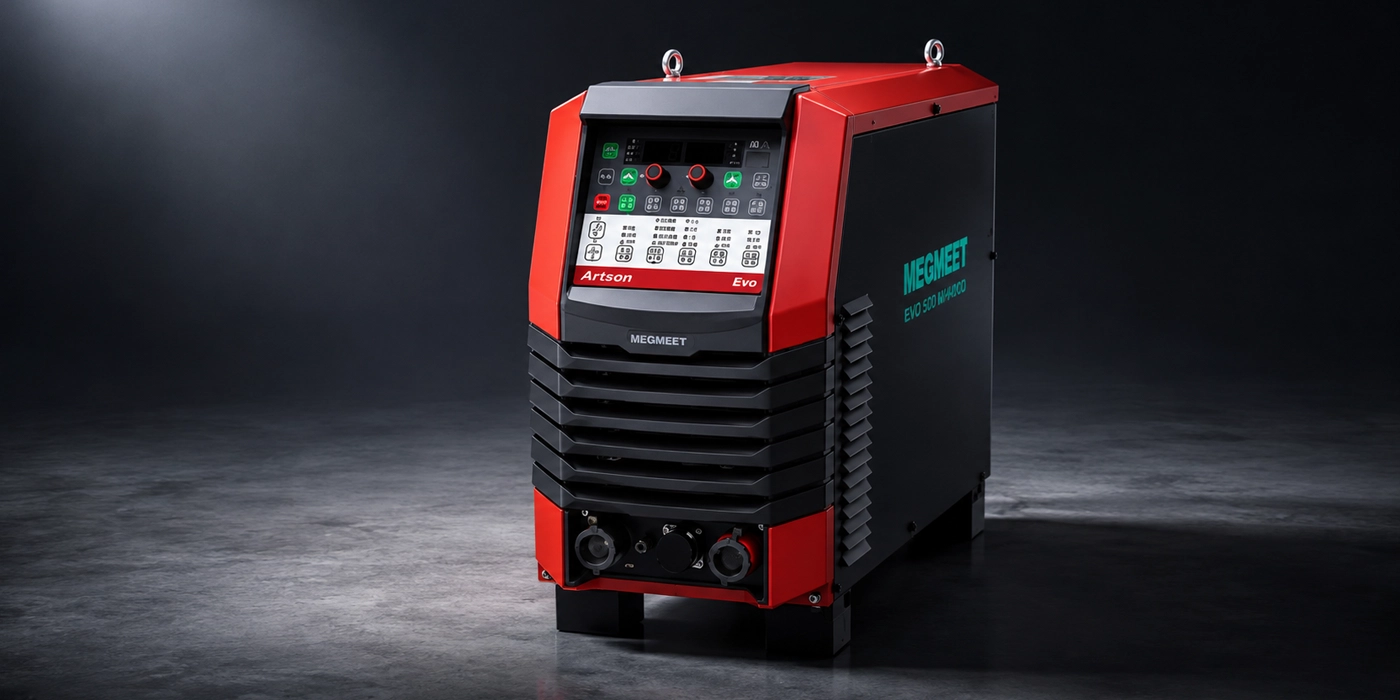

Welding Machine System：Advantages: Megmeet Welding Machines – Ultra-low spatter, high efficiency & energy-saving performance, and superior reliability.

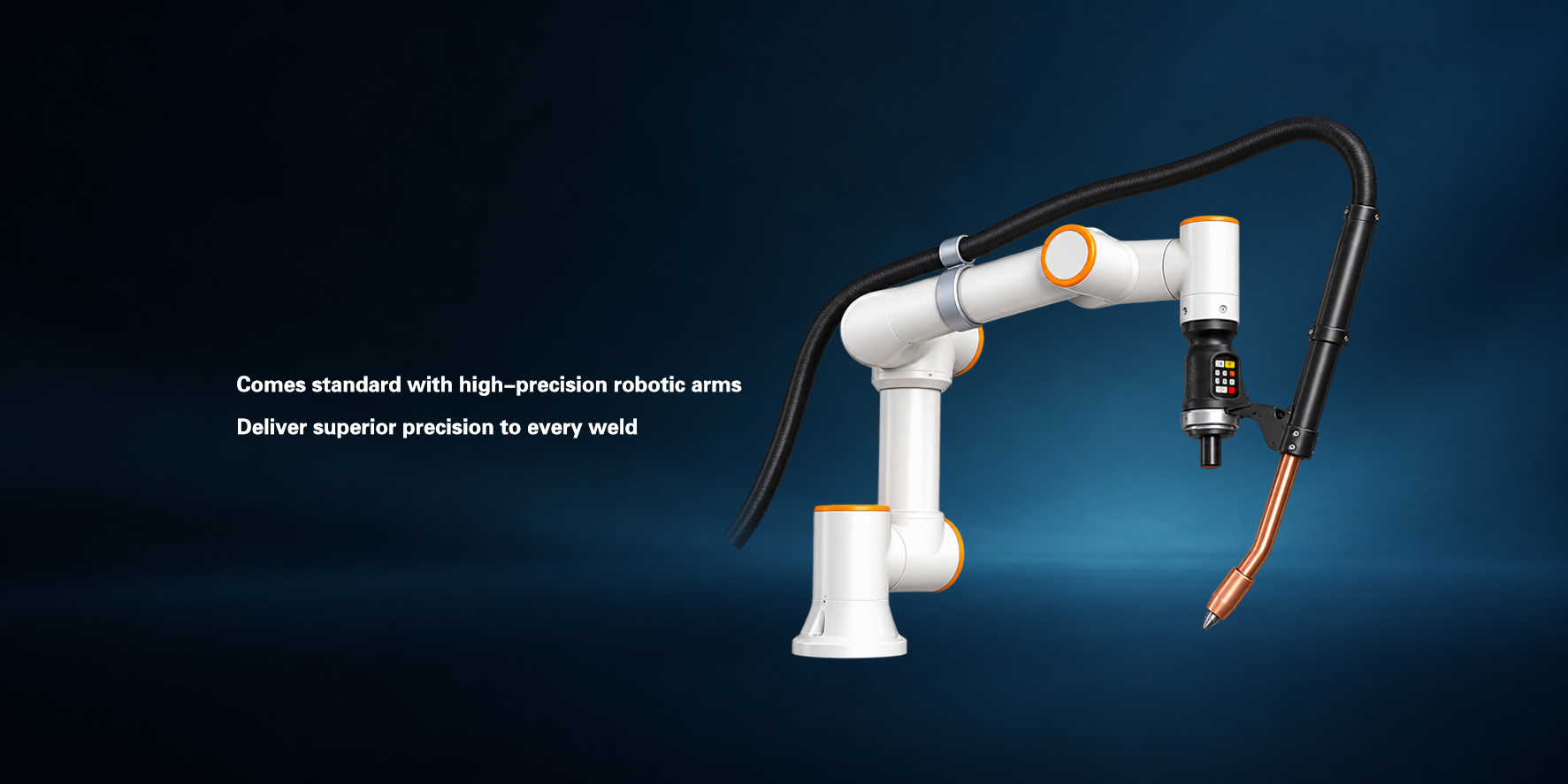

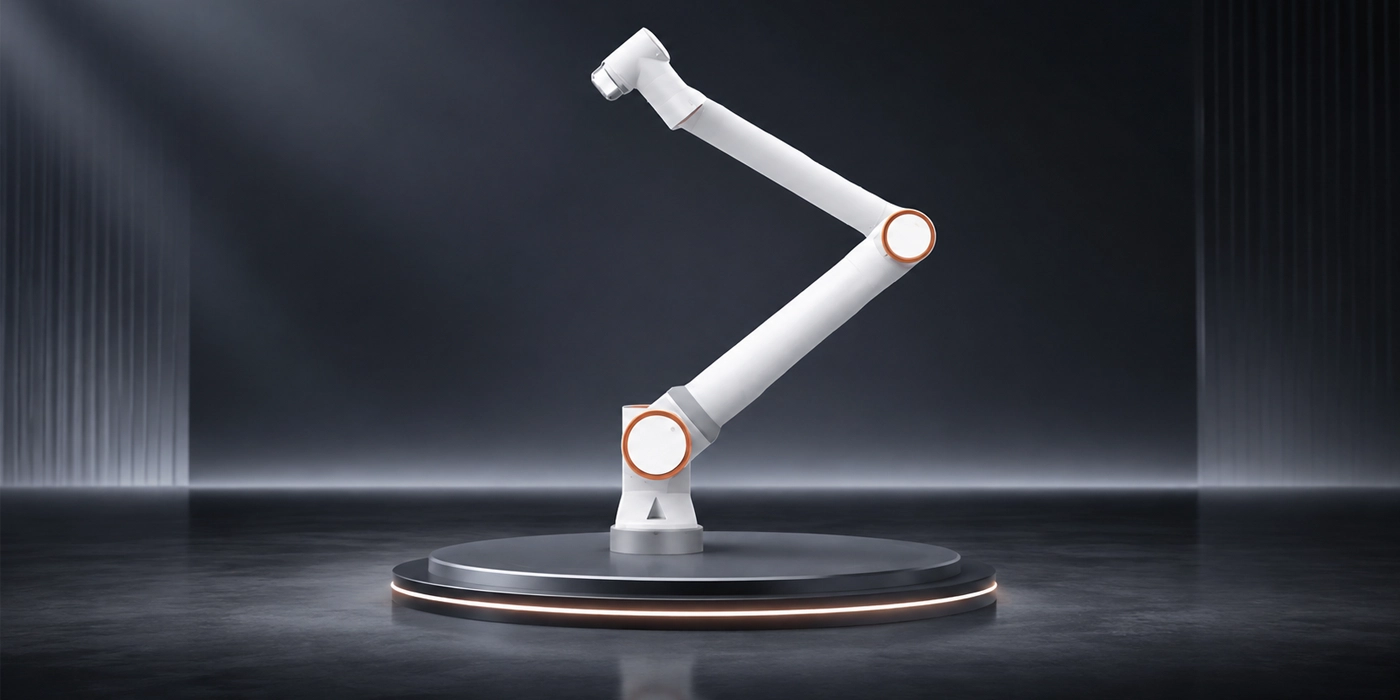

1.Robots Advantages: Fairino Robot – Light weight design, programming-free operation, user-friendly interface, and high stability.

Welding Control System Self-developed System : Highlights – Stable quality, improved efficiency, strong environmental adaptability, and easy operation.
