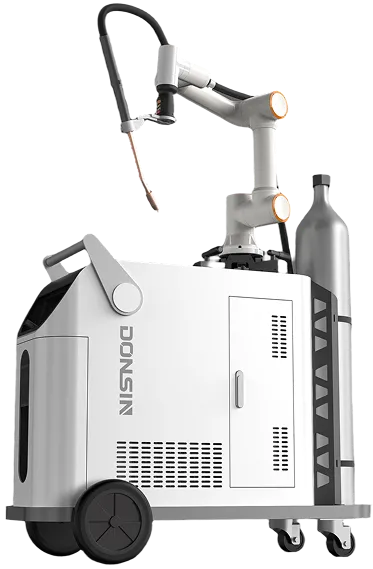

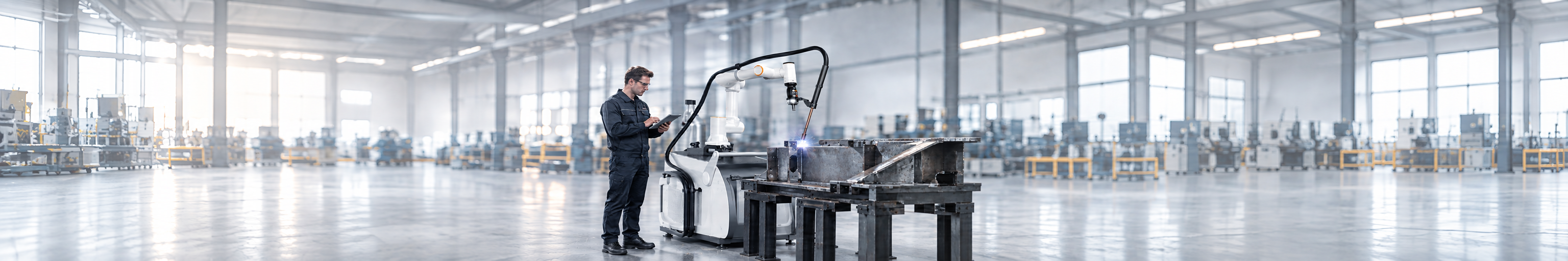

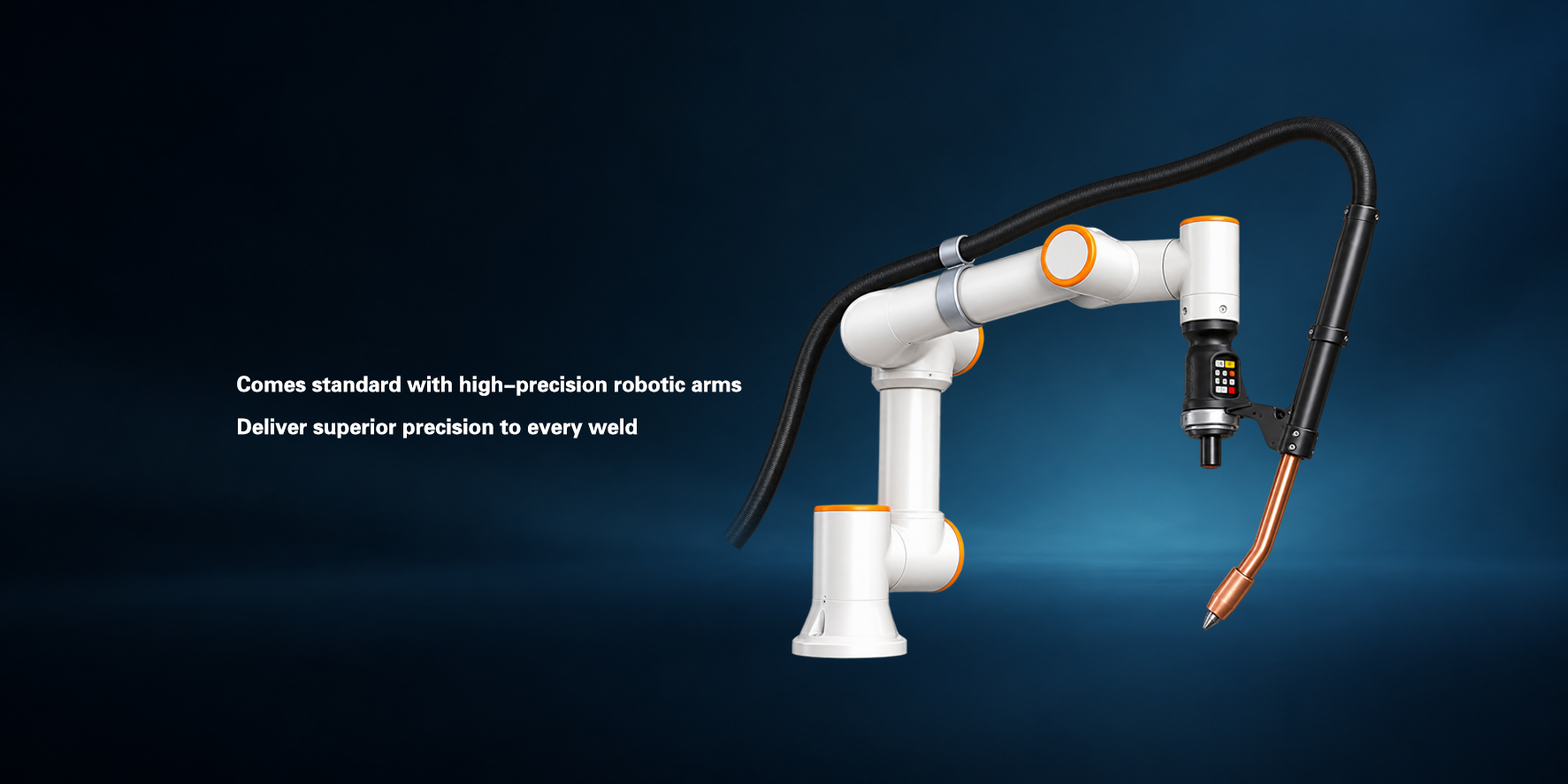

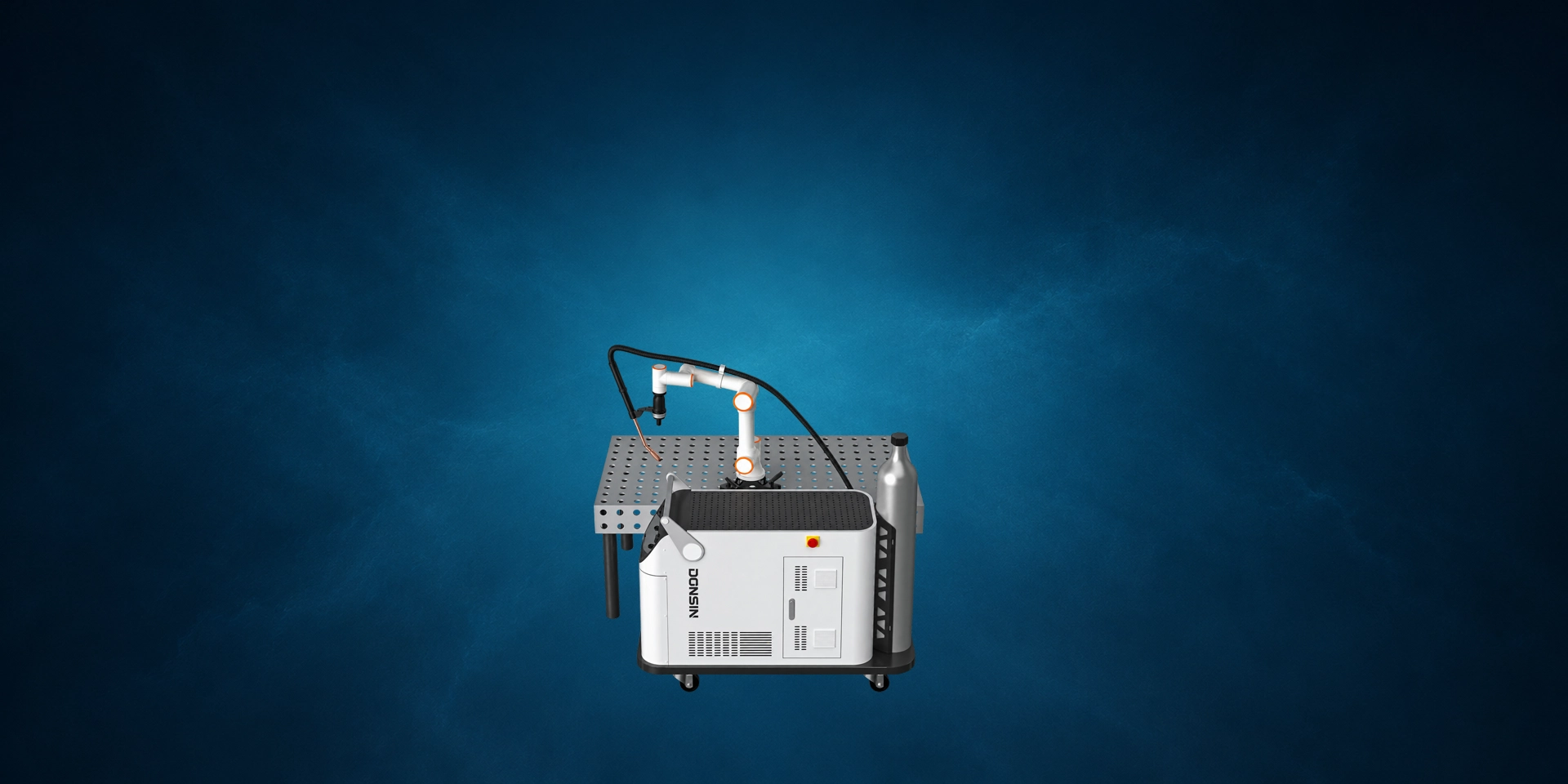

Collaborative Robot Welding-RW

Core Value Proposition

It is the intelligent answer for enterprises to solve the "welding shortage" and reduce costs and increase efficiency.

A tireless' gold medal welder 'helps companies ensure delivery and win orders.

What Is He?

Collaborative robot welding is a highly automated solution that integrates collaborative robots with welding. It has the characteristics of safe collaboration and ease of use, and can collaborate with workers in a shared space.

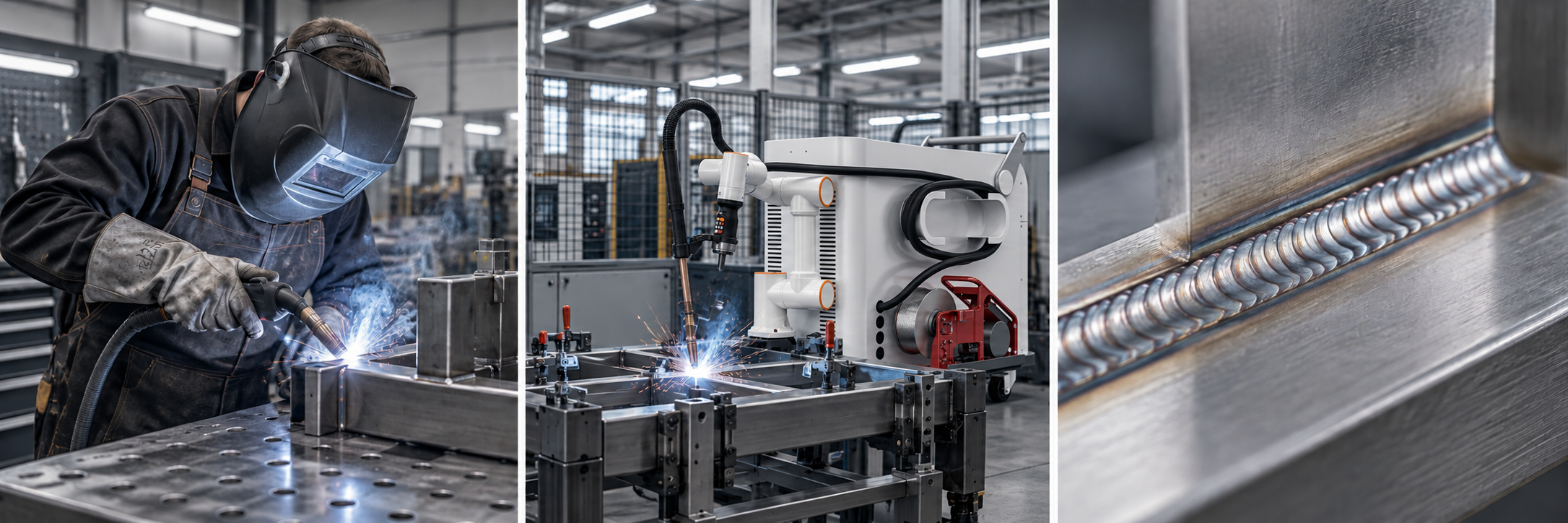

What Problem Does It Solve?

Collaborative robot welding mainly addresses several severe challenges in the manufacturing industry: effectively alleviating the shortage of skilled welders and high labor costs; Overcome quality fluctuations caused by factors such as fatigue in manual welding and ensure product consistency; Liberate workers from harsh welding environments such as small cabins, high temperatures, and harmful gases to ensure safety.

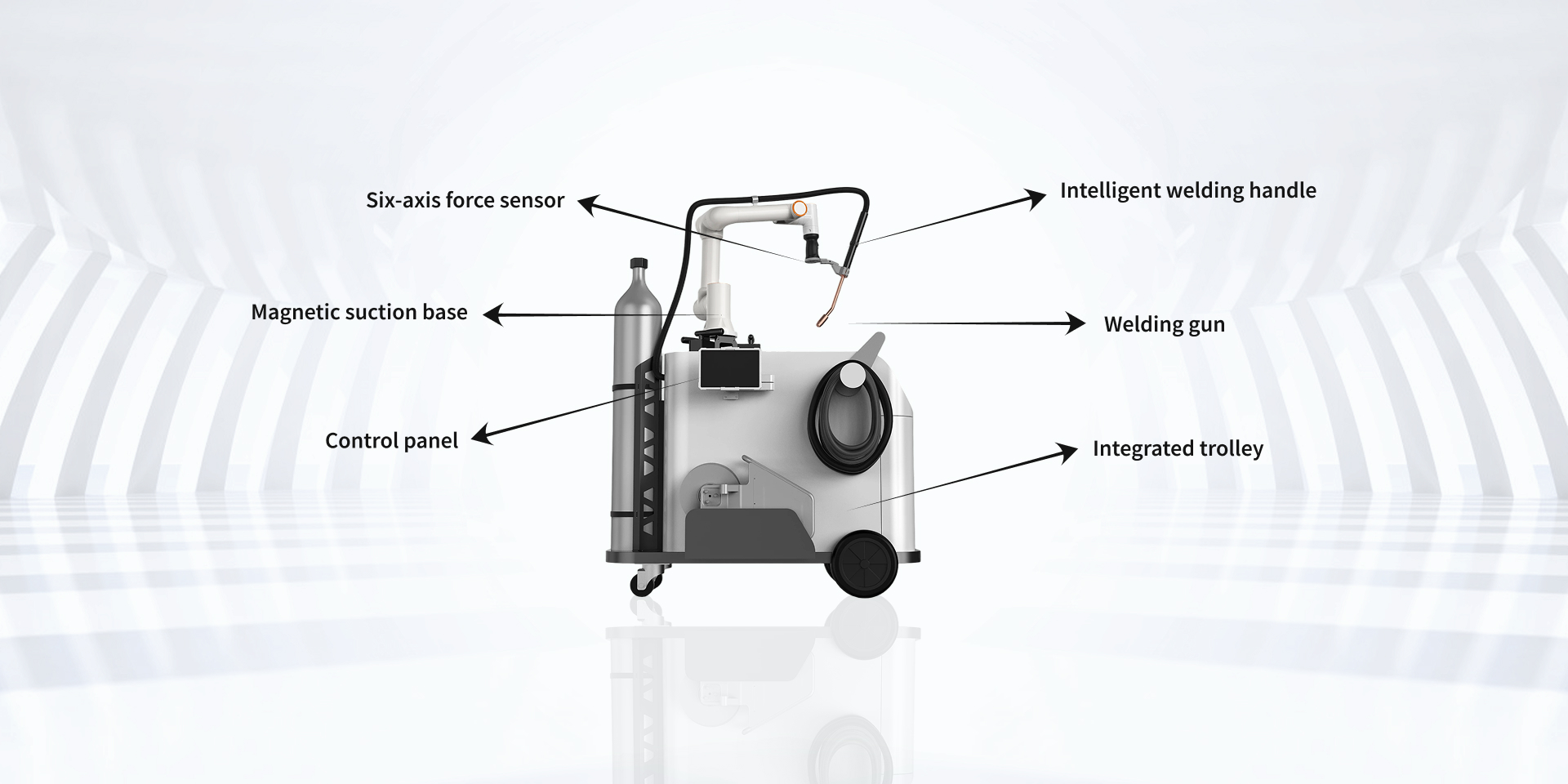

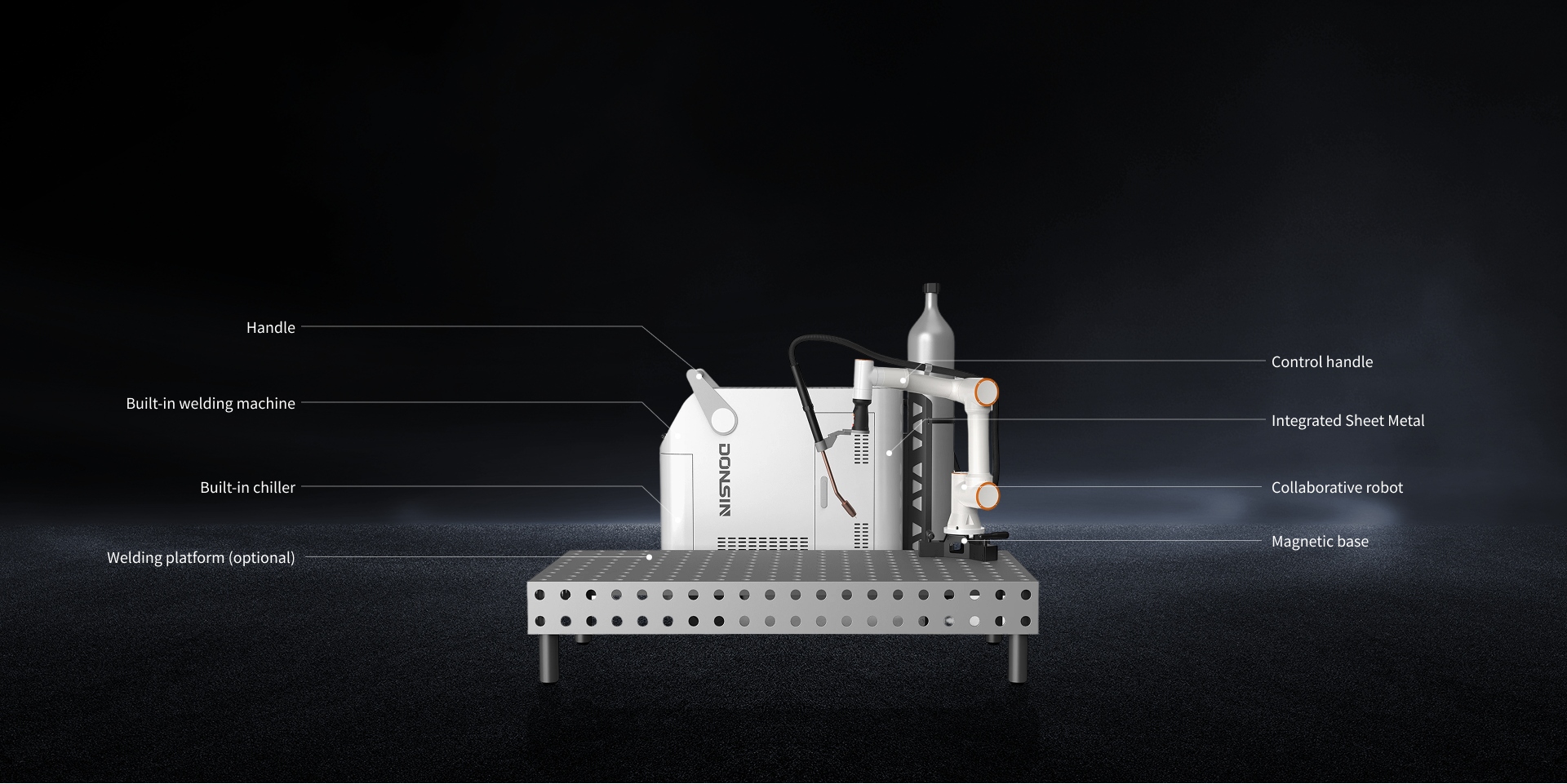

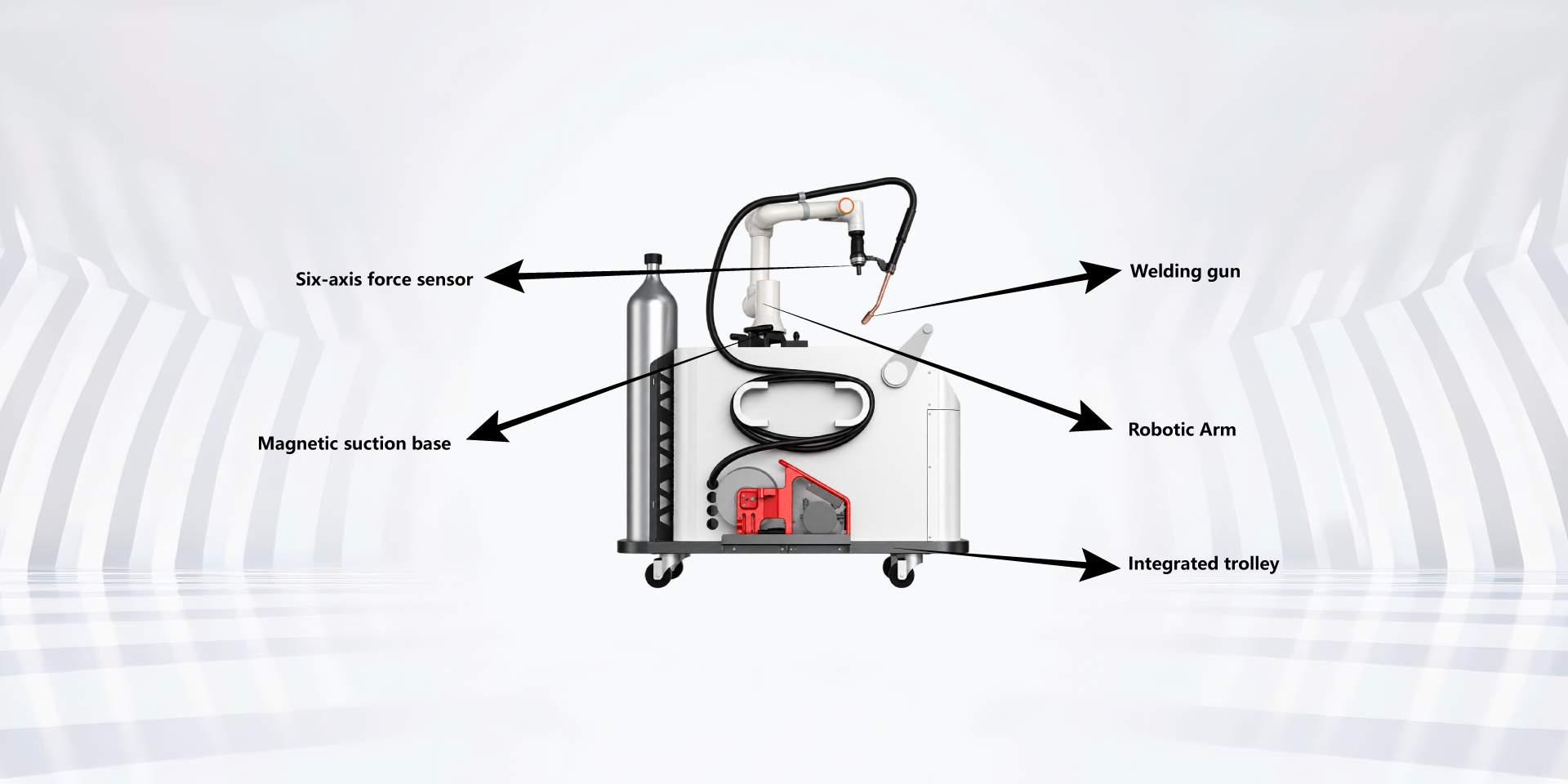

What Parts Does It Consist Of?

What Is Its Core Selling Point?

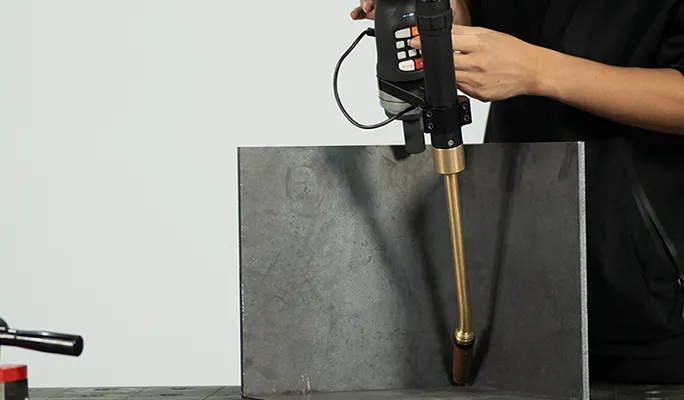

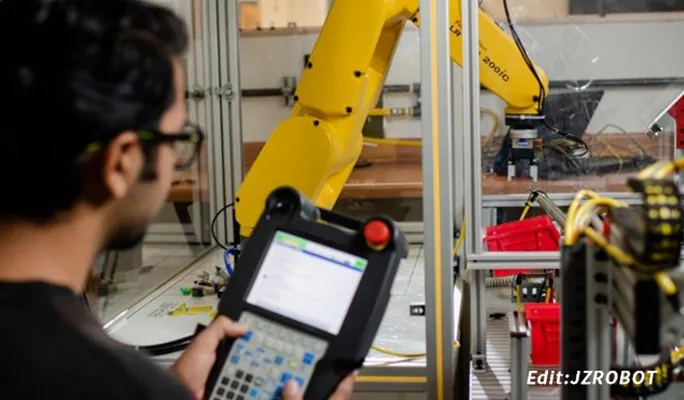

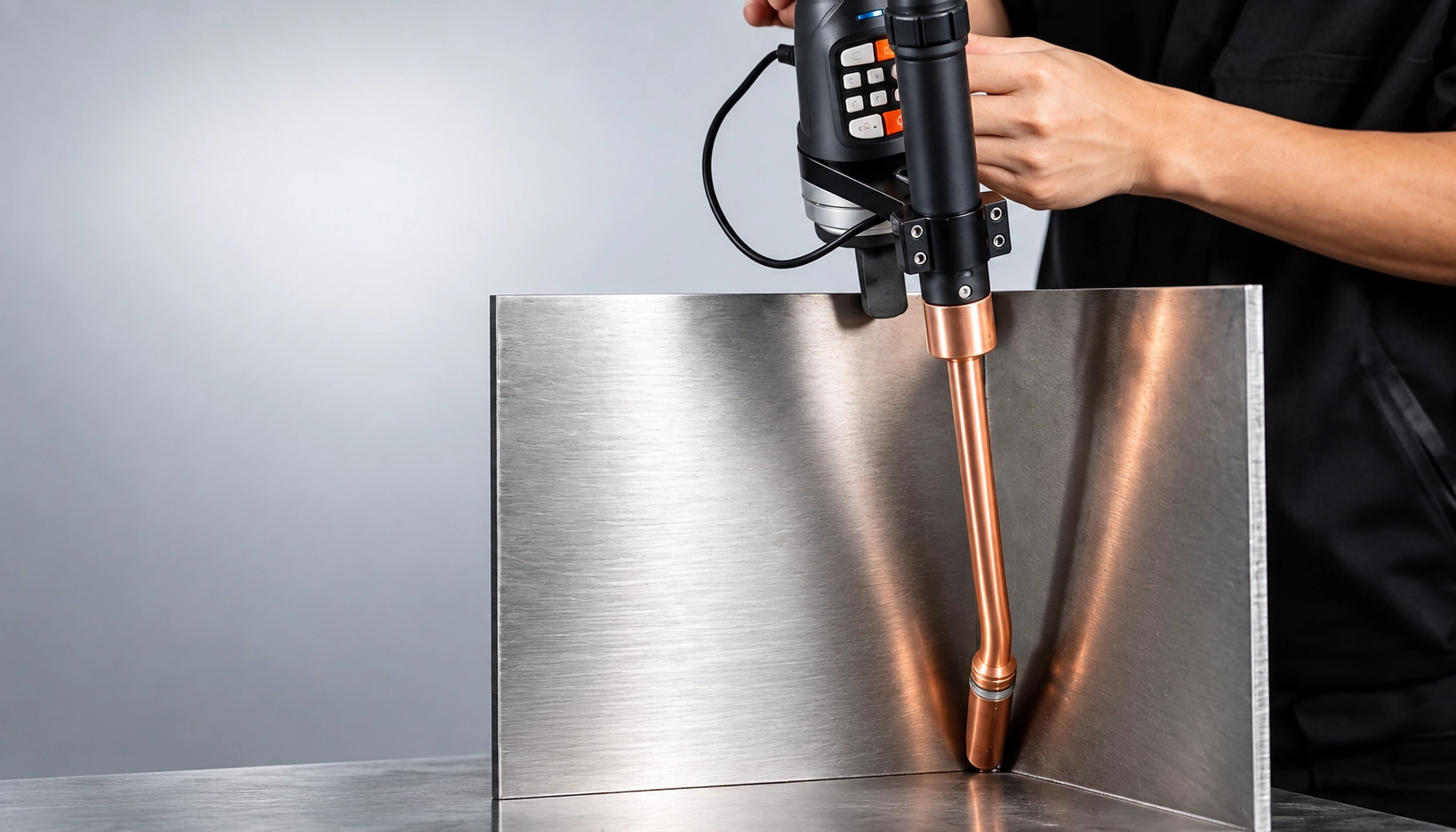

Ultimate Ease Of Use

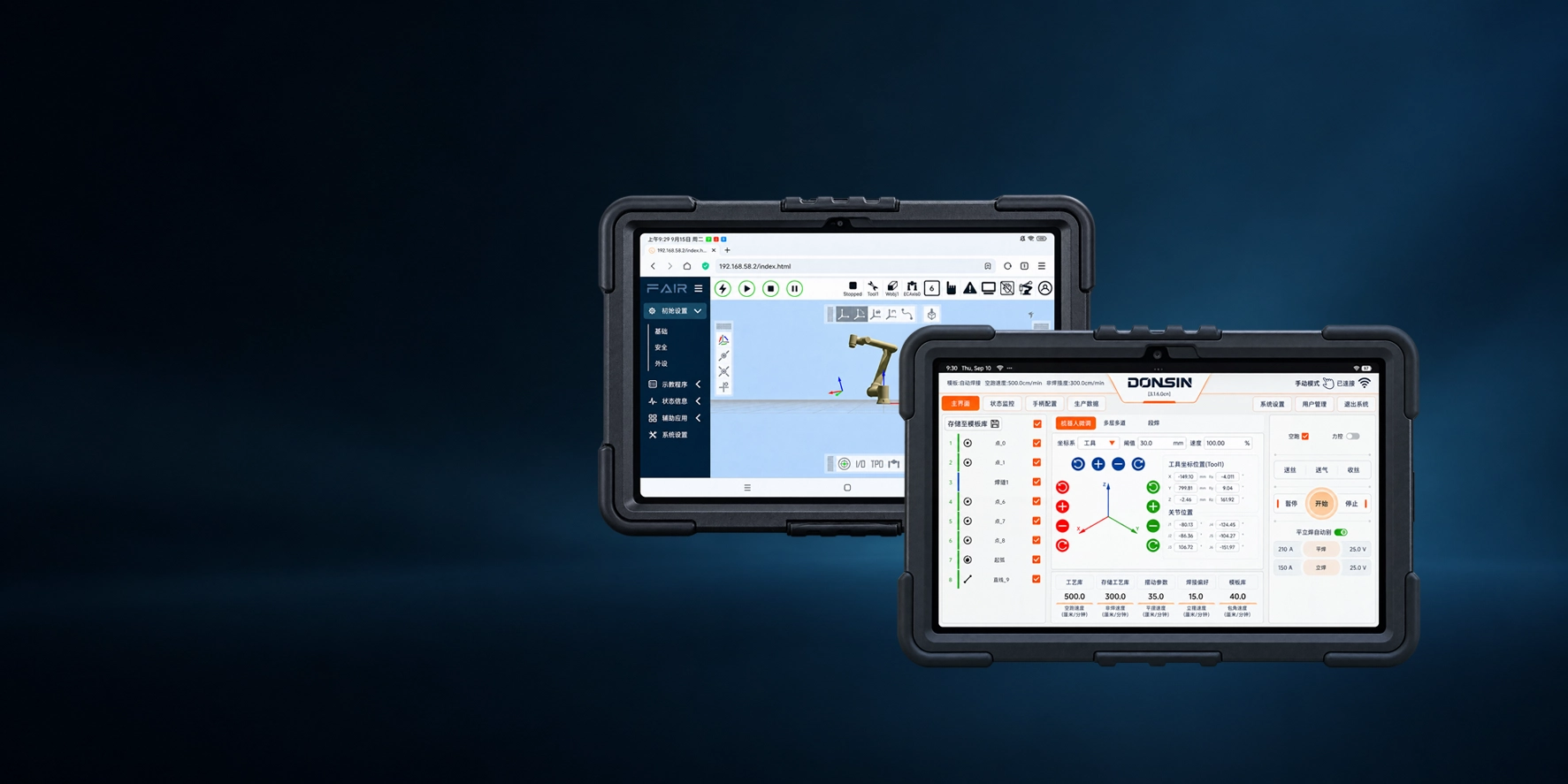

By using graphical programming and drag and drop teaching techniques, ordinary workers can get started after short-term training, greatly reducing the threshold for automation.

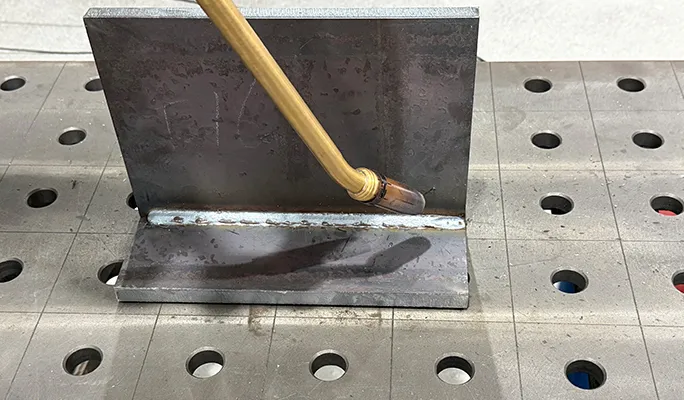

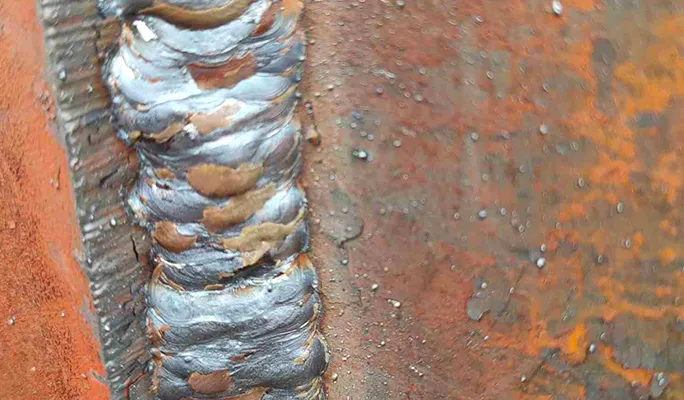

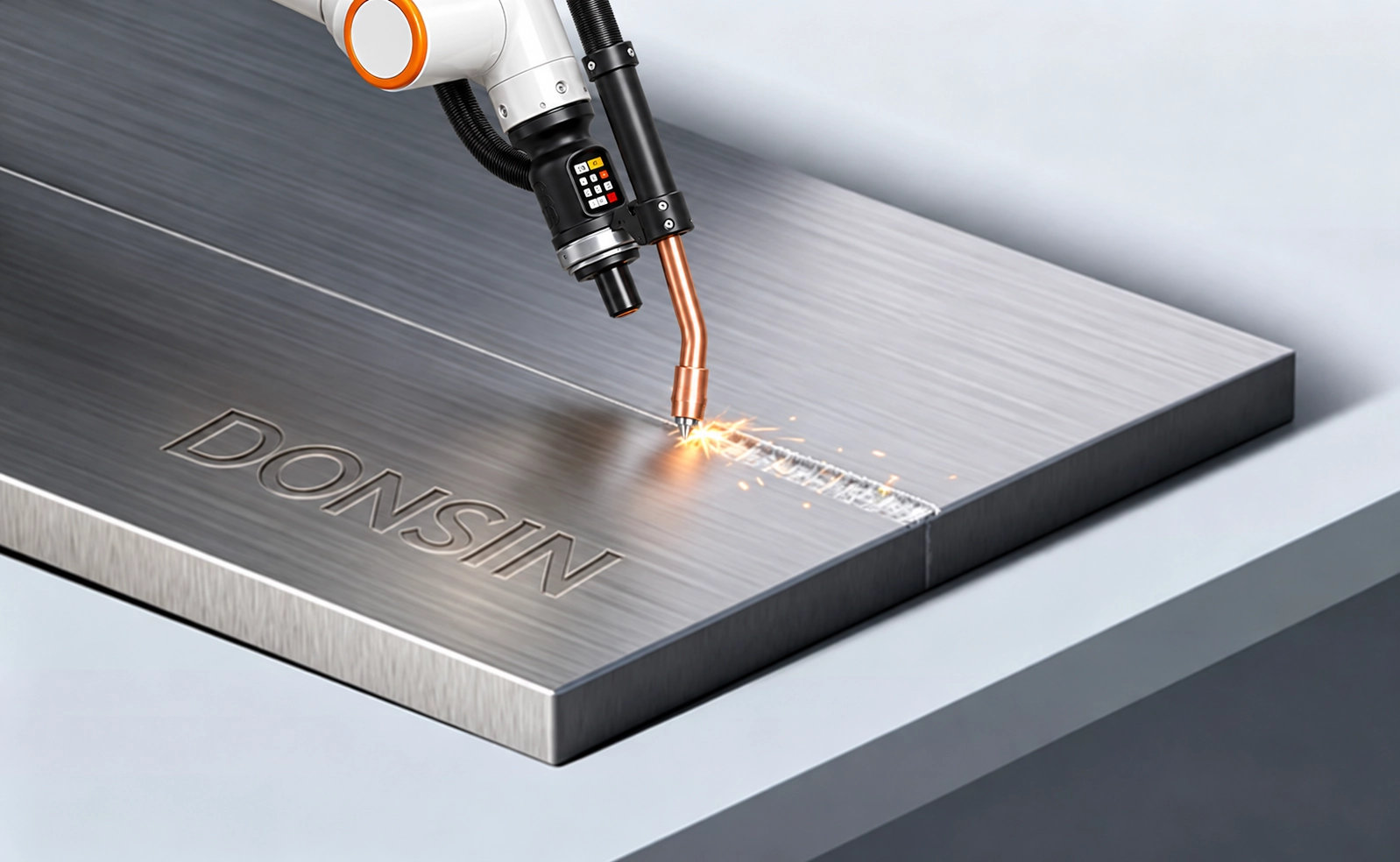

Stable And High-Quality

High repeatability accuracy (up to ± 0.02mm), combined with weld seam tracking technology, ensures that each weld seam is perfectly consistent, greatly improving the qualification rate.

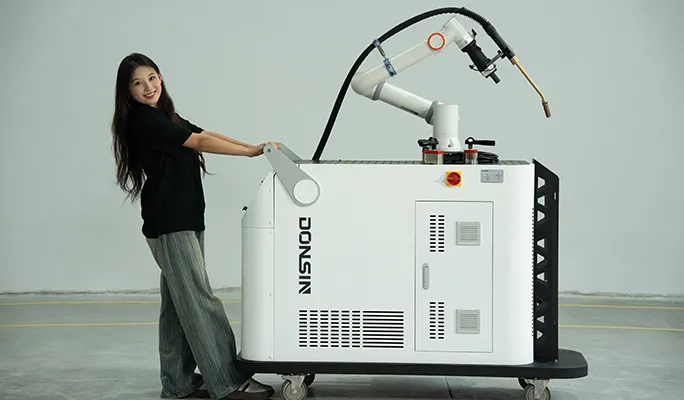

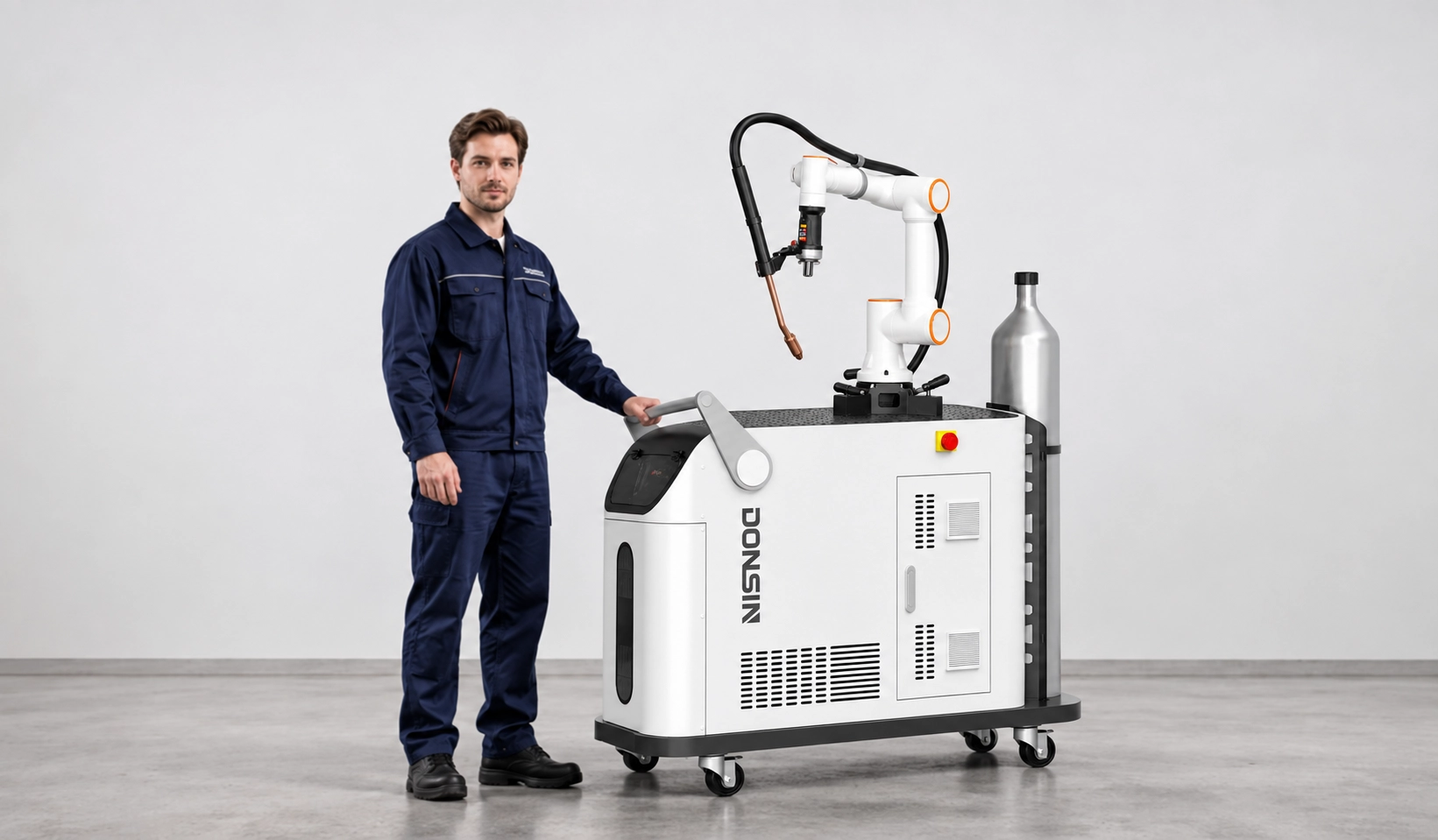

Secure Collaboration

Built in safety function, which can automatically stop or slow down when in contact with personnel, usually without the need to install safety fences, achieving human-machine integration.

Quick Returns

Flexible deployment, able to quickly integrate into existing production lines, improve efficiency (up to three times in some cases), and help enterprises quickly recoup their investments.

What Are The Application Scenarios?

Ship Manufacturing

Automotive Industry

Architecture/Bridge

Energy Equipment

New Energy

Special Machinery

Agricultural Equipment

Fitness Equipment

Detail Presentation
Unique And Ingenious Ideas

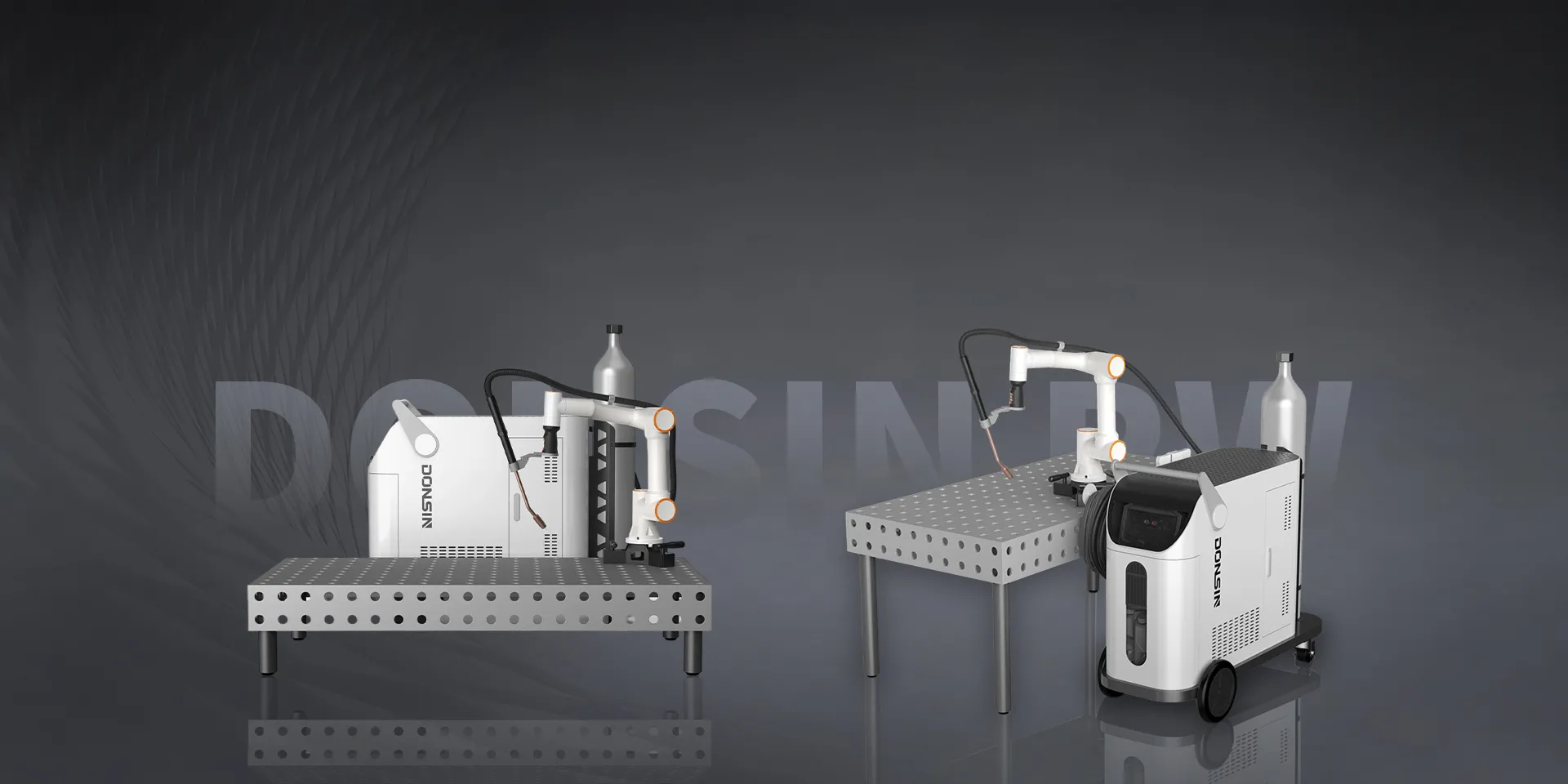

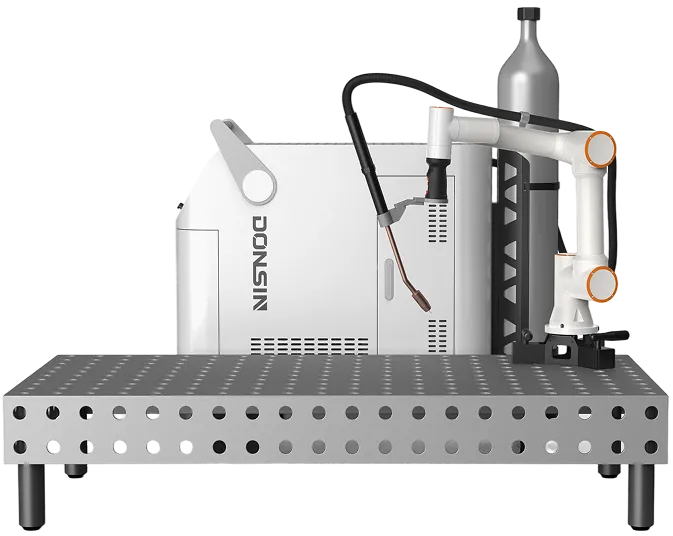

Collaborative Robot Welding-RW

The deep integration of industrial design and industrial aesthetics is reshaping the product value system. This integration is not only reflected in the perfect balance between function and form, but also in endowing industrial products with emotional resonance and cultural connotation through innovation in consumer-grade product design, forming a dual upgrade of "intelligent manufacturing + quality manufacturing."

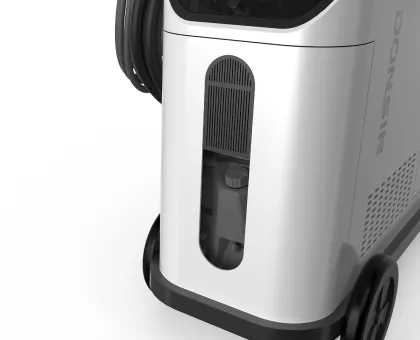

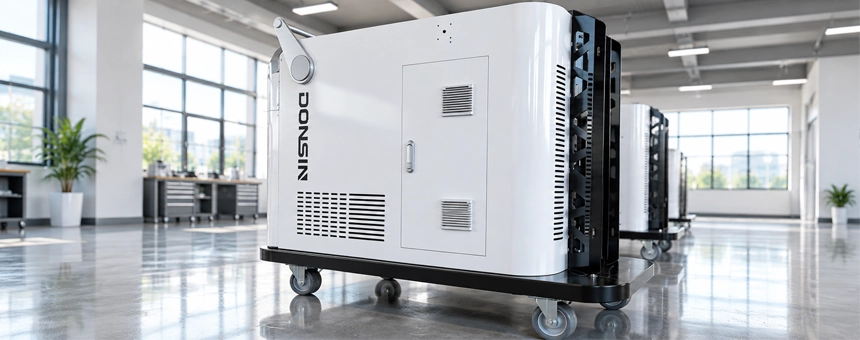

The welding machine features a visualized design for parameter adjustment, a dustproof exterior structure, and real-time monitoring of its operating status.

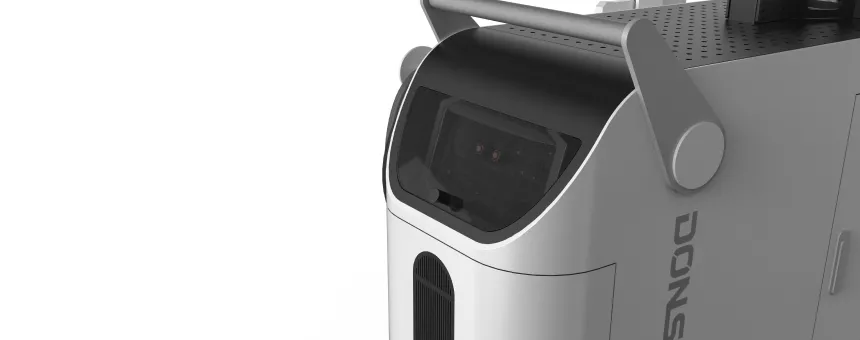

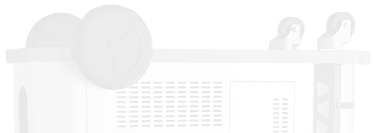

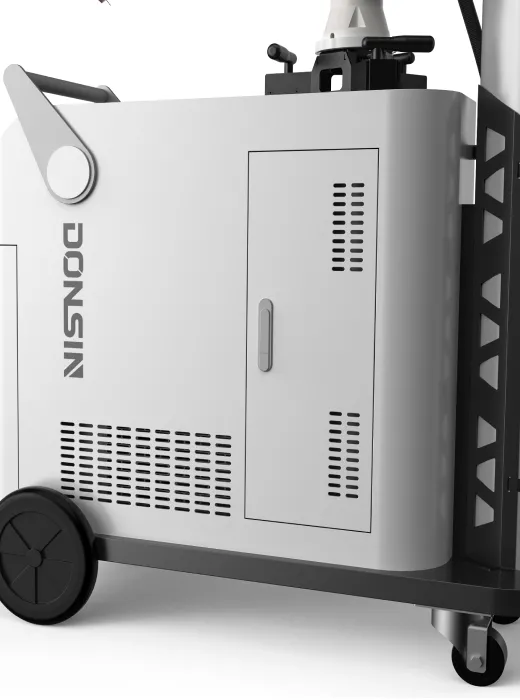

A quick-release protective cover at the front allows for tool-free disassembly and maintenance.

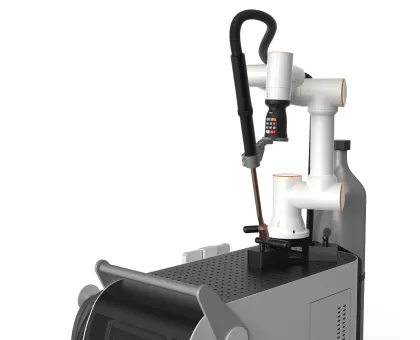

The robot, through its streamlined curved surface design and modular appearance, creates a futuristic form that combines technological sophistication with industrial aesthetics.

Performance Is King
Fearless Of Challenges

TCP speed

1 .5 m/s

Welding current

500 A

Repeat positioning accuracy

±0 .02 mm

Protection level

IP54/IP65

Performance Data

Focusing on laser cleaning and collaborative robot welding, reshaping the global manufacturing ecosystem

Minimum power

17 KW

Continuous working time

36 h

Overall lifespan

30000 h

Which Product Is Suitable For You?

Focusing on laser cleaning and collaborative robot welding,
reshaping the global manufacturing ecosystem

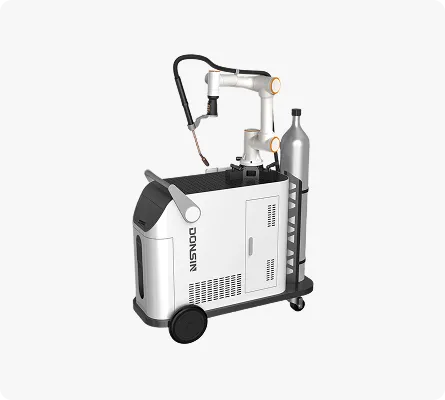

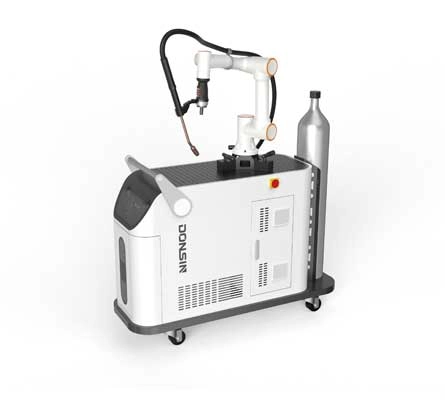

RW-3

Collaborative Robot Welding-RW

Learn More >

Robot Working Radius

622mm

Effective Welding Size

≤1100mm

Overall Dimensions

1600mm*730mm*1200mm

Total Machine Weight (Excluding Manipulator)

330kg

Robot Unit Weight

≈21kg

Repeat Positioning Accuracy

±0.02mm

The Wire Feeder Is Farther From The Welding Gun

Wire Feeder To Main Body Line

9.5m

Typical Tcp Speed (End-Point Operating Speed)

1m/s

Protection Level

IP54/IP65

Rated Output Current

500A

Rated Total Power

≈16.5kw

Welding Machine Weight

51.7kg

Cooling Method

Water Cooling

Adapted Welding Method

CO₂/MAG/MIG pulsed gas shielded welding

Material & Welding Wire Compatibility

Solid carbon steel, flux-cored carbon steel, solid stainless steel, flux-cored stainless steel

RW-5

Collaborative Robot Welding-RW

Learn More >

Robot Working Radius

922mm

Effective Welding Size

≤1800mm

Overall Dimensions

1600mm*730mm*1200mm

Total Machine Weight (Excluding Manipulator)

330kg

Robot Unit Weight

≈33kg

Repeat Positioning Accuracy

±0.02mm

The Wire Feeder Is Farther From The Welding Gun

Wire Feeder To Main Body Line

9.5m

Typical Tcp Speed (End-Point Operating Speed)

1m/s

Protection Level

IP54/IP65

Rated Output Current

500A

Rated Total Power

≈17kw

Welding Machine Weight

51.7kg

Cooling Method

Water Cooling

Adapted Welding Method

CO₂/MAG/MIG pulsed gas shielded welding

Material & Welding Wire Compatibility

Solid carbon steel, flux-cored carbon steel, solid stainless steel, flux-cored stainless steel

RW-10

Collaborative Robot Welding-RW

Learn More >

Robot Working Radius

1400mm

Effective Welding Size

≤2600mm

Overall Dimensions

1600mm*730mm*1200mm

Total Machine Weight (Excluding Manipulator)

330kg

Robot Unit Weight

≈40kg

Repeat Positioning Accuracy

±0.05mm

The Wire Feeder Is Farther From The Welding Gun

Wire Feeder To Main Body Line

9.5m

Typical Tcp Speed (End-Point Operating Speed)

1.5m/s

Protection Level

IP54/IP65

Rated Output Current

500A

Rated Total Power

≈17.5kw

Welding Machine Weight

51.7kg

Cooling Method

Water Cooling

Adapted Welding Method

CO₂/MAG/MIG pulsed gas shielded welding

Material & Welding Wire Compatibility

Solid carbon steel, flux-cored carbon steel, solid stainless steel, flux-cored stainless steel

Intelligent Welding In The New Era

RW Series - Collaborative Welding Robot

Hello! Welcome to the RW series intelligent welding solutions. Consult now for exclusive solutions!

Get A Quote

Core Component Advantages

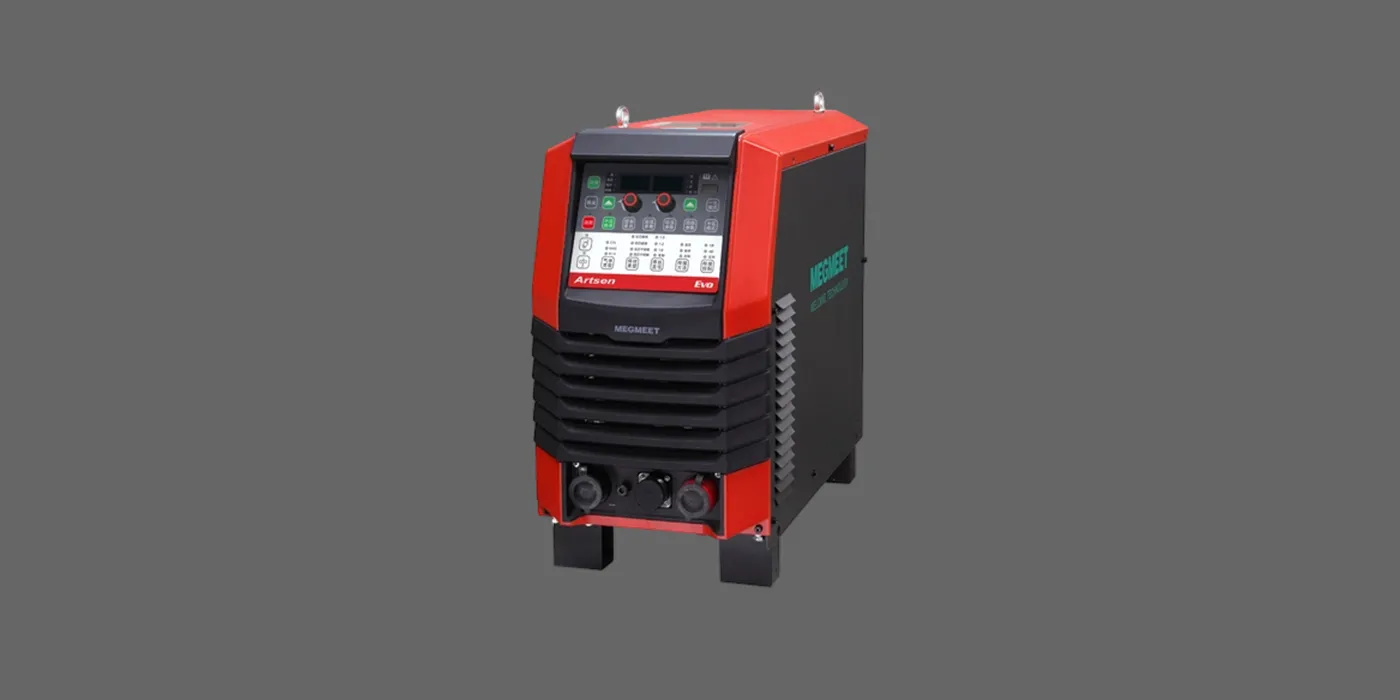

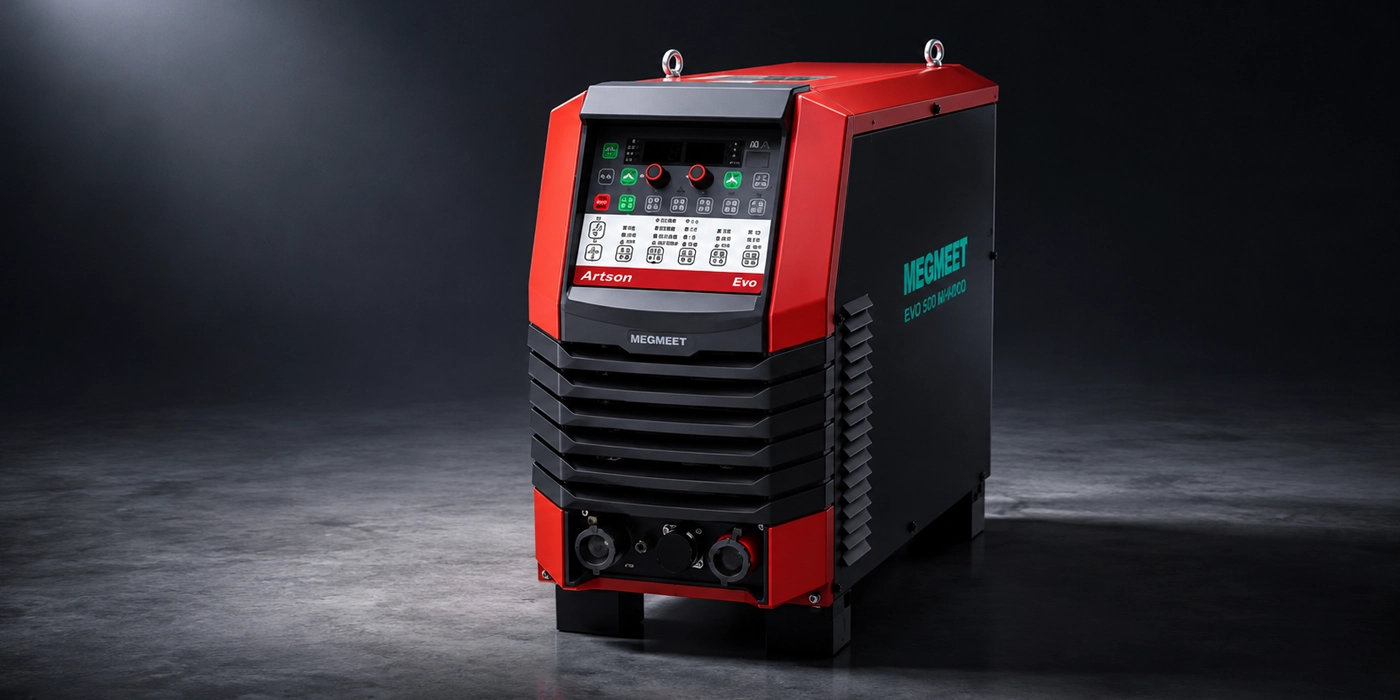

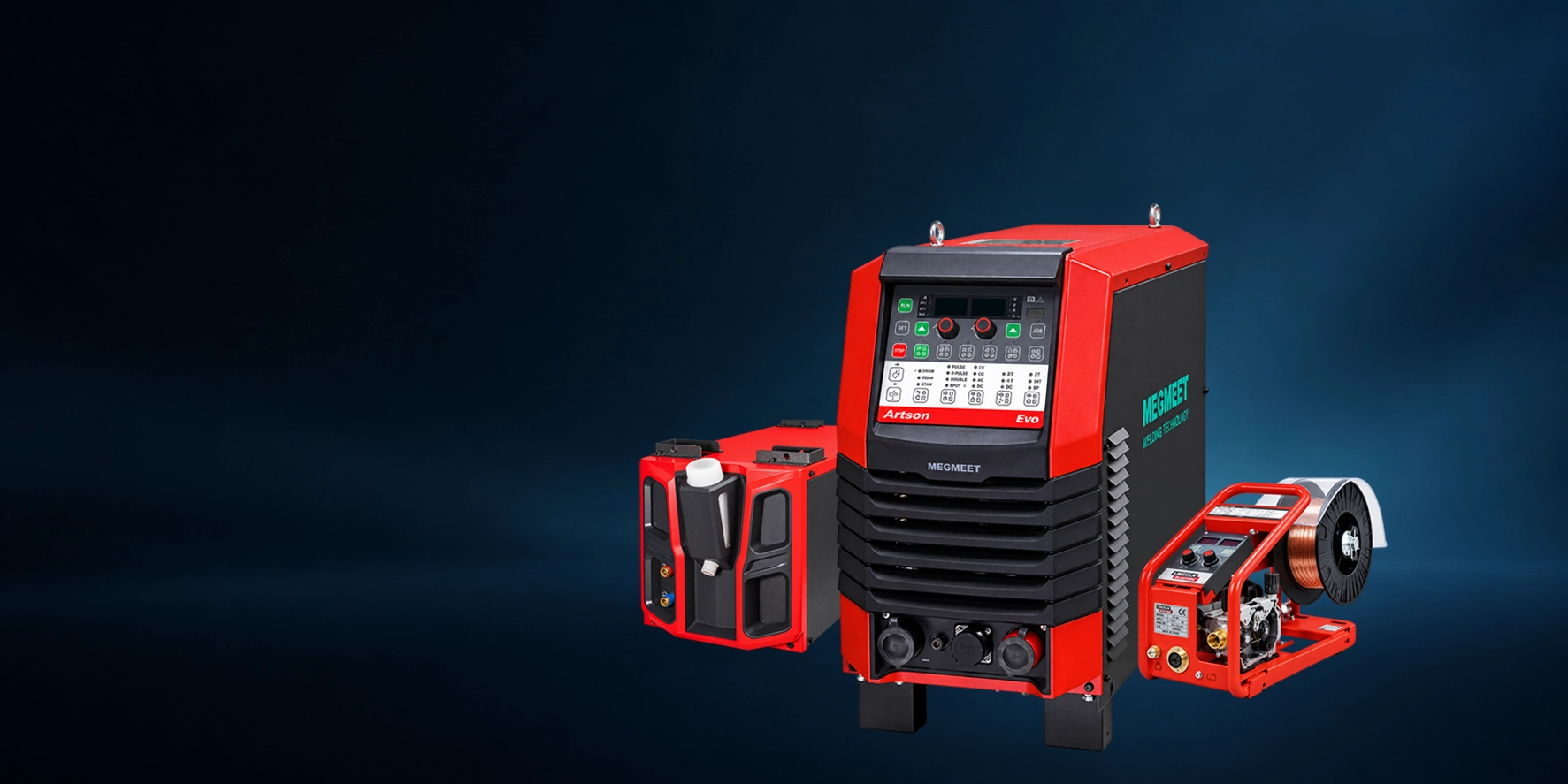

Welding System Advantages: Megmeet welding machines: ultra-low spatter, high efficiency and energy saving, high reliability

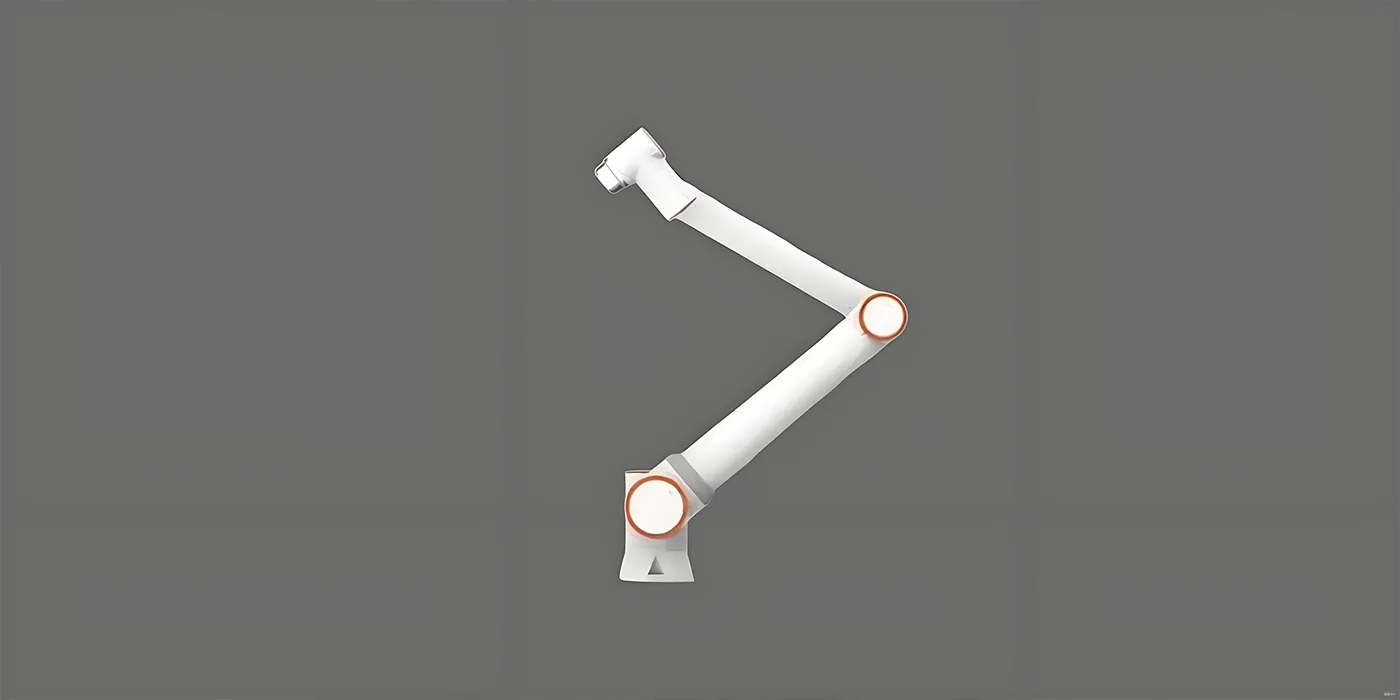

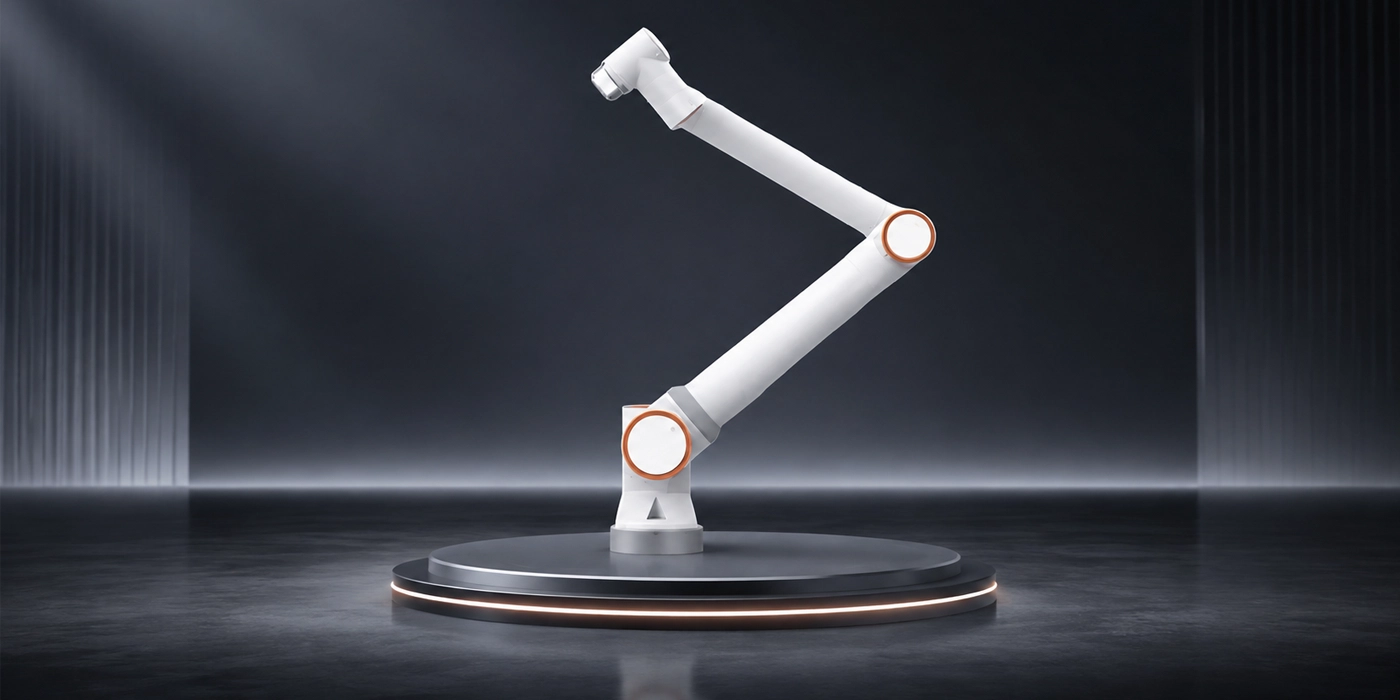

Robot Advantages: Fao robotic arm: lightweight design, no programming required, easy to use, high stability

Welding Control System Advantages: Self-developed system: stable quality, improved efficiency, strong environmental adaptability, and easy operation.

Core Technology

Swing Welding

Arc Tracking

Self Recognition Of Flat/Vertical Welding

Welding Interruption Recovery

Intermittent Welding And Multi-Layer And Multi Pass Welding

Product Highlights

No need for protective barriers within a safe distance, supports manual intervention and debugging

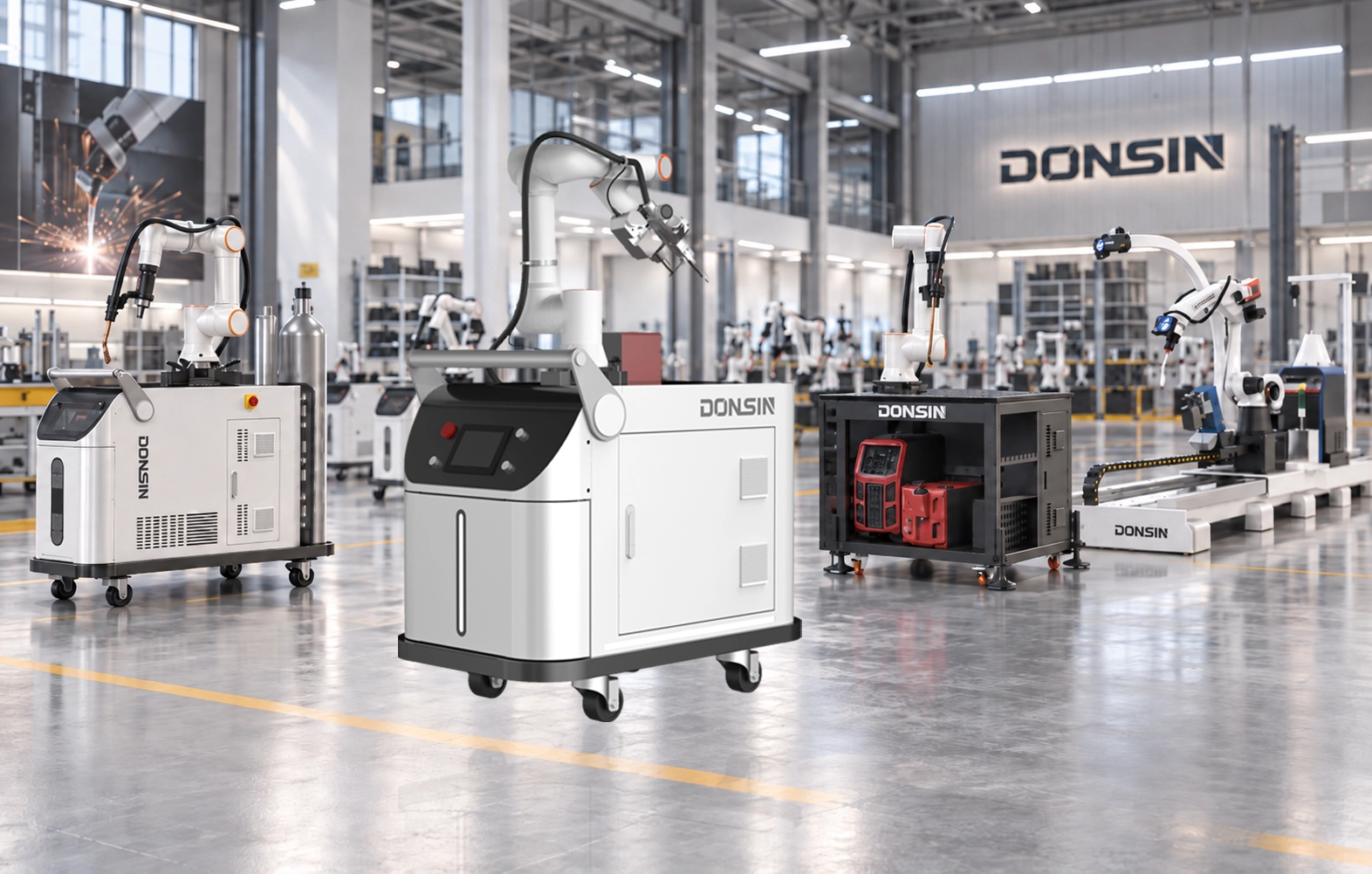

Flexible Production

6-axis joint design, working radius up to 1.6m, optional load of 3-10kg

Process Expert Database

10+Welding Parameter Library
