Laser Cleaning Machine-LR
DONSIN  LR
Human-Robot Interaction | Collaborative Symbiosis

3-year warranty service for the whole machine

Core Value Proposition

A robust solution for enterprises to break through the bottlenecks of traditional cleaning and achieve green intelligent manufacturing.

As an around-the-clock "intelligent guardian", it helps enterprises overcome environmental barriers and establish quality benchmarks.

What is it?

A laser cleaning machine is a surface cleaning technology that uses high-energy laser beams to achieve non-contact, non-damaging, and eco-friendly cleaning. It is gradually replacing traditional chemical and mechanical cleaning methods.

What Problems Does It Solve?

The laser cleaning machine is designed to address multiple pain points in traditional industrial cleaning: it replaces chemical-agent-based cleaning methods to avoid environmental pollution; enables precision and selective cleaning, resolving the issue that molds, precision parts and other items are difficult to clean effectively with traditional methods; and serves as a high-efficiency pretreatment methods before welding and spraying to improve the quality of subsequent procedures.

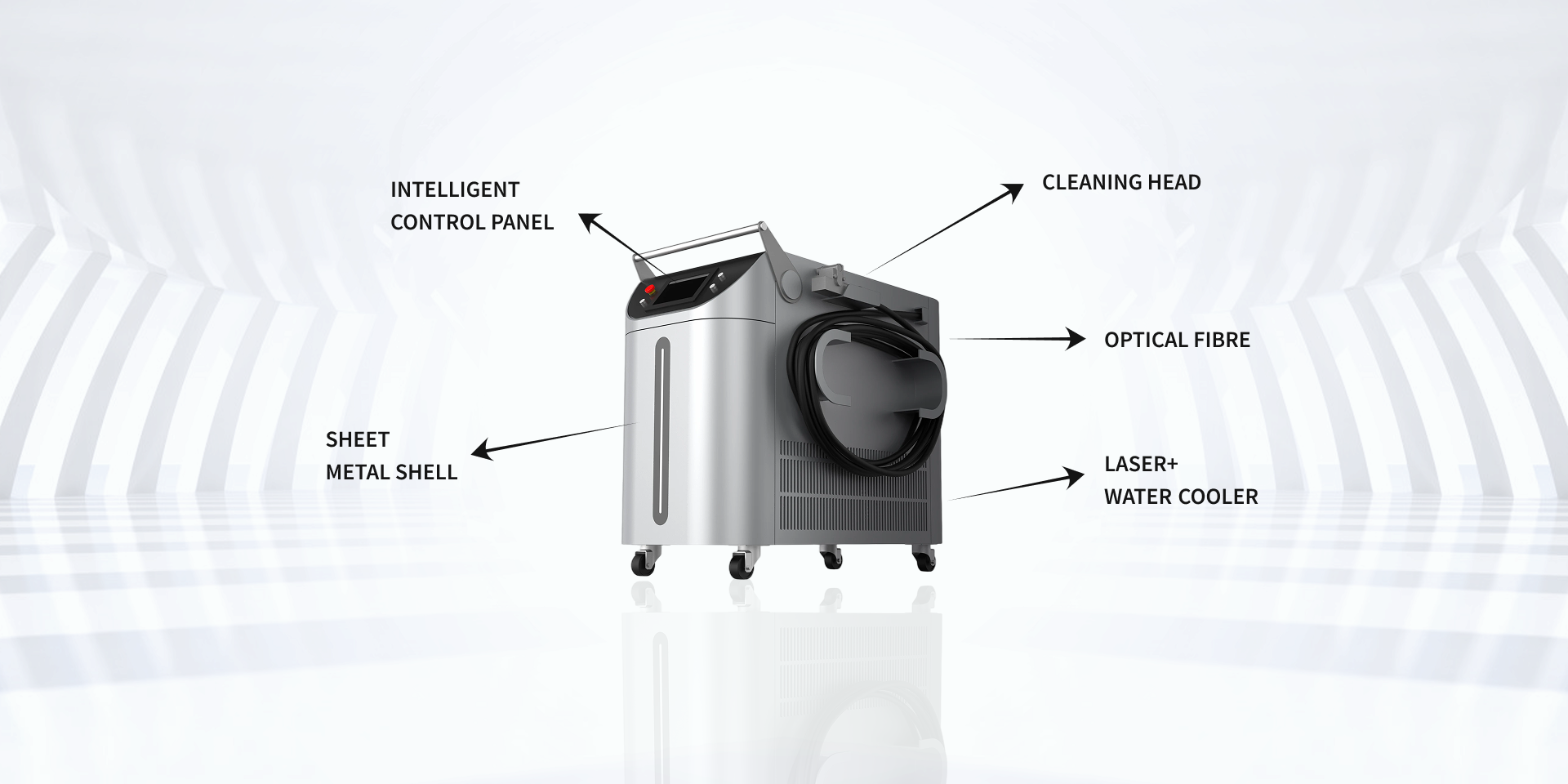

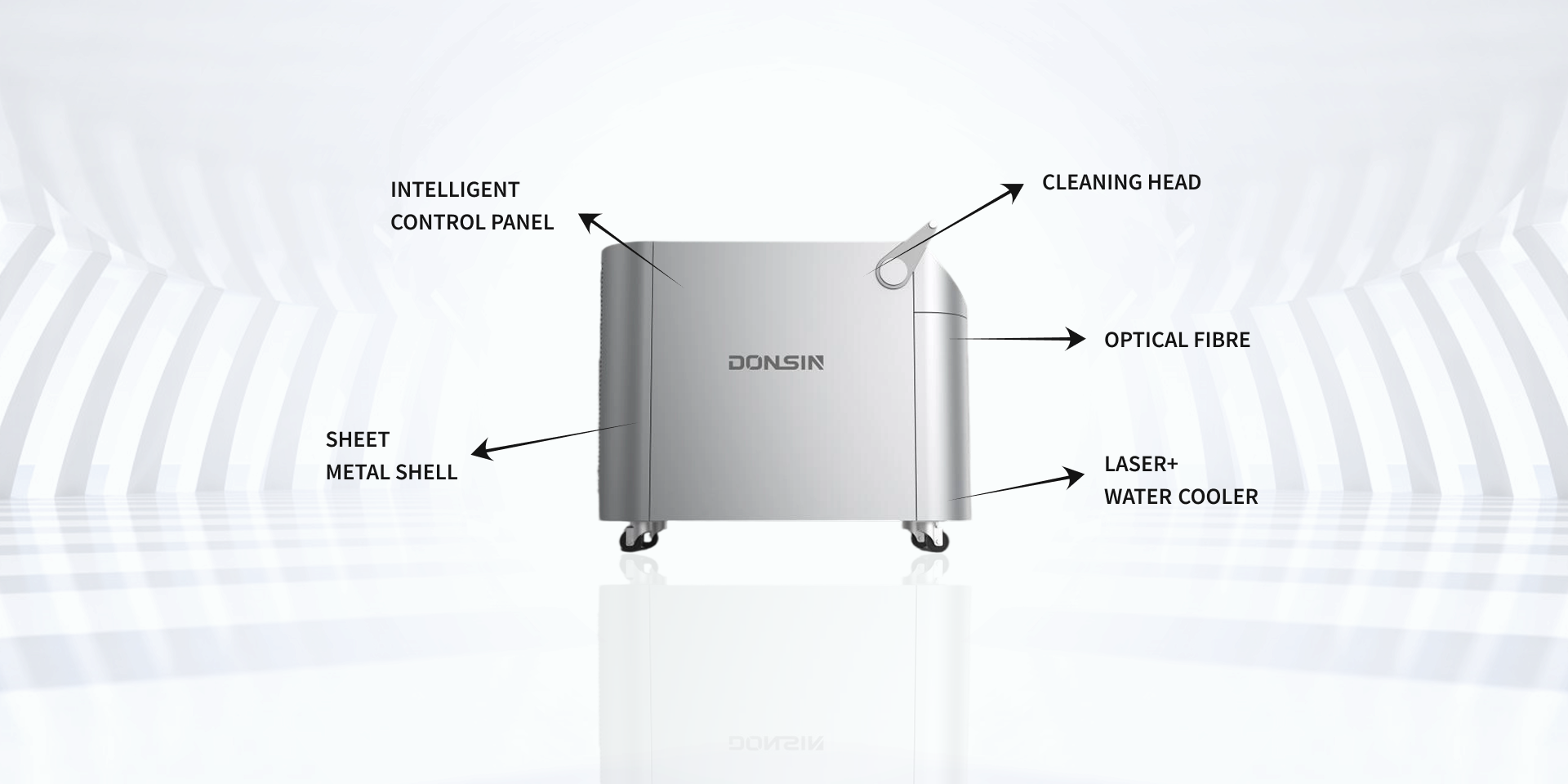

What Parts Does It Consist Of?

Collaborative Robot Welding-RW5

What Are Its Core Selling Points?
Eco-friendly
Eco-friendly
Eco-friendly
Eco-friendly
Eco-friendly

No chemical agents are required during the cleaning process, no wastewater or waste gas is discharged, and waste materials are easy to recycle.

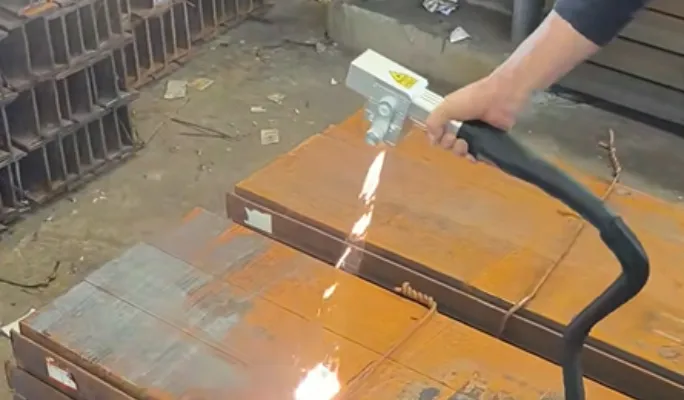

Precise & Non-damaging
Precise & Non-damaging
Precise & Non-damaging
Precise & Non-damaging
Precise & Non-damaging

The cleaning area and depth can be precisely controlled, causing almost zero damage to the substrate. It is particularly suitable for precision components and cultural relic restoration.

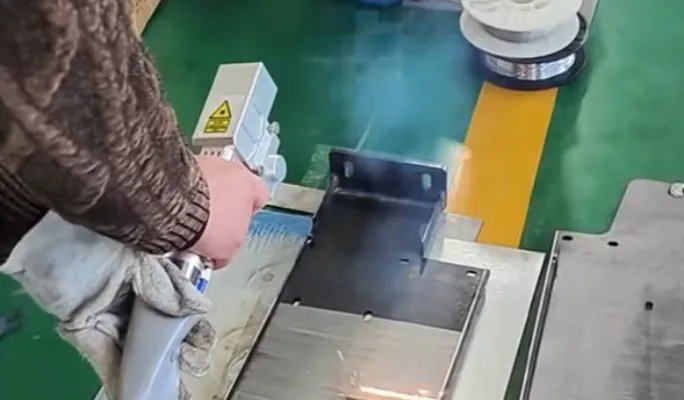

Efficient & Flexible
Efficient & Flexible
Efficient & Flexible
Efficient & Flexible
Efficient & Flexible

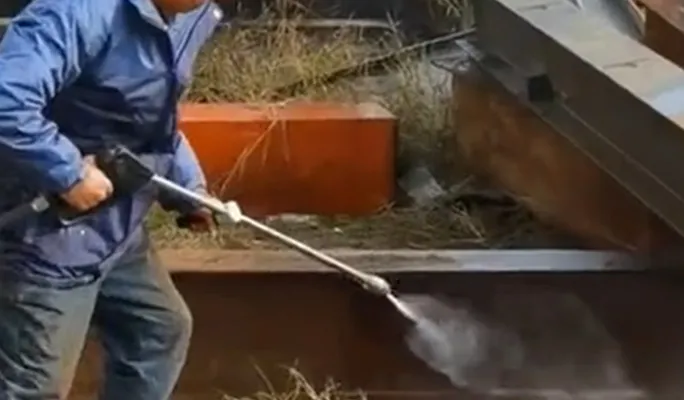

Fast cleaning speed, operable either manually or integrated with automated equipment, and capable of cleaning areas that are hard to reach with traditional methods.

Cost-effective
Cost-effective
Cost-effective
Cost-effective
Cost-effective

Almost no consumable costs except for electricity fees during long-term operation. Although the initial investment is relatively high, the comprehensive operating cost is low.

What Are The Application Scenarios?
Shipbuilding
Shipbuilding
Automotive Industry
Automotive Industry
Construction/Bridge
Construction/Bridge
Energy Equipment
Energy Equipment
New Energy
New Energy
Special Machinery
Special Machinery
Agricultural Equipment
Agricultural Equipment
Fitness Equipment
Fitness Equipment
Detail Presentation
Unique And Ingenious Ideas

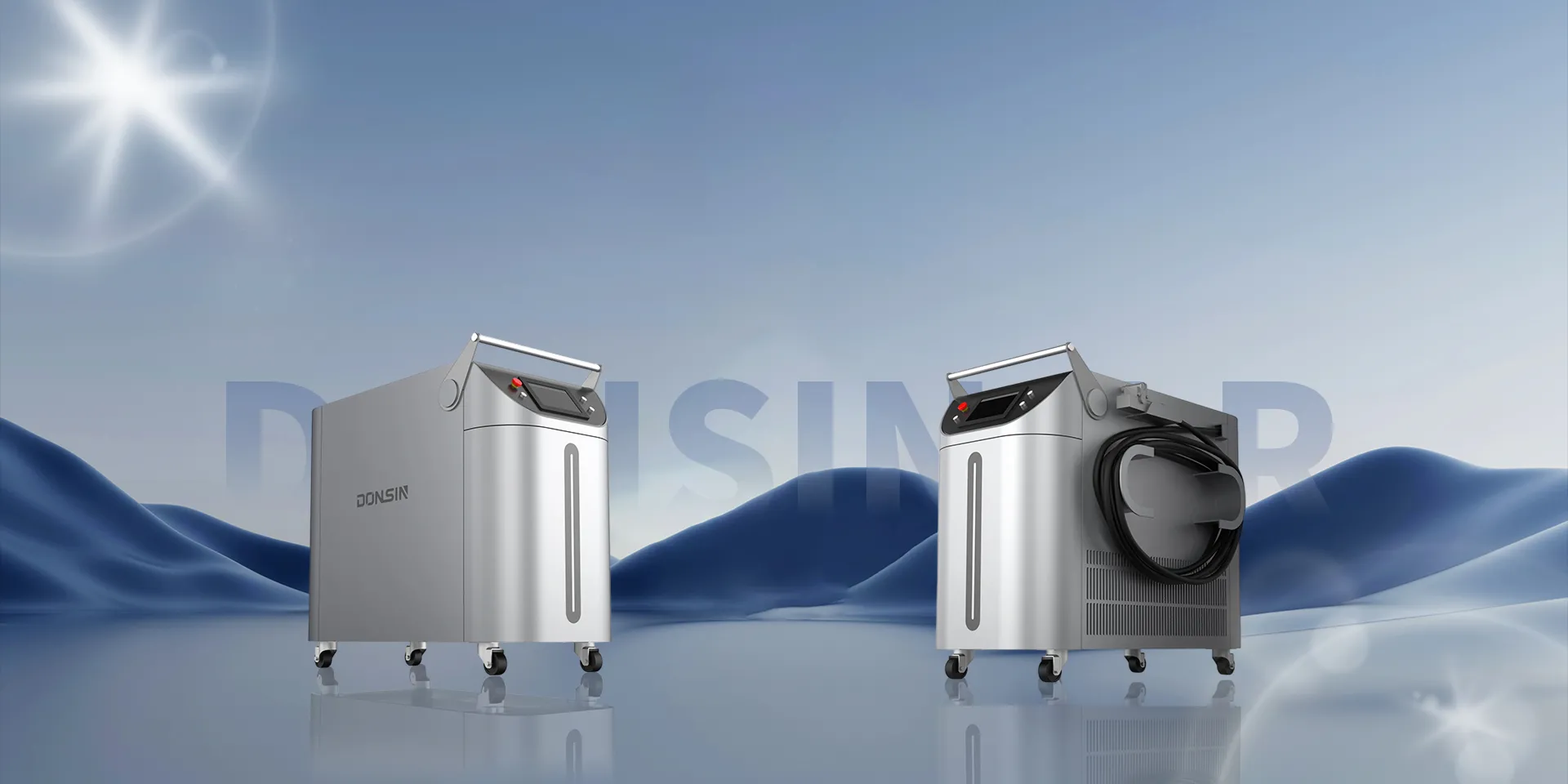

Laser Cleaning Machine-LR

Product Details
Product Details
Wheels + cable storage design for easy movement and neat arrangement
Product Details
Product Details

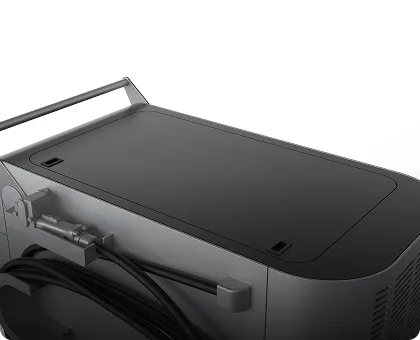

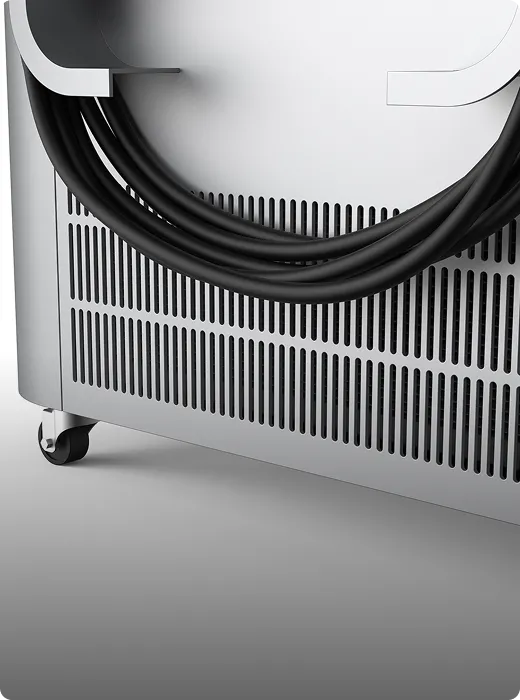

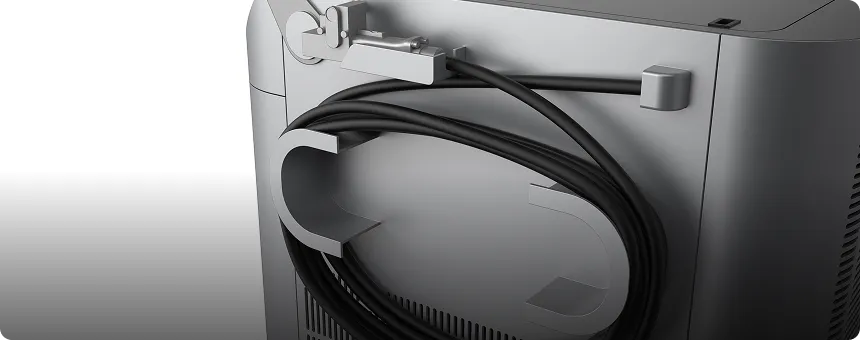

Tidy cable organization for a cleaner and more streamlined equipment appearance
Product Details
Product Details

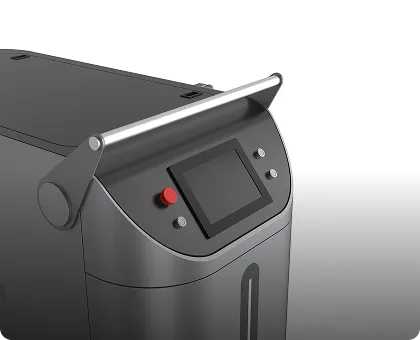

Equipped with an intelligent control panel for precise parameter adjustment
Product Details
Product Details
Integrated all-in-one design to save space and improve efficiency
Performance Is King
Fearless Of Challenges
Performance Is King
Fearless Of Challenges

Overall service life of the machine

100,000 hours

Continuous operating time

36 hours

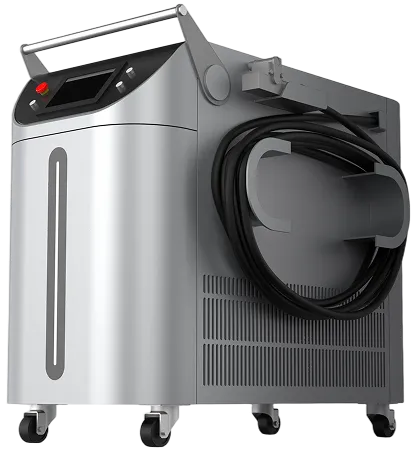

DONSIN  LR
DONSIN  LR
Which Product Is Suitable For You?
Focusing on laser cleaning and collaborative robot welding,
reshaping the global manufacturing ecosystem

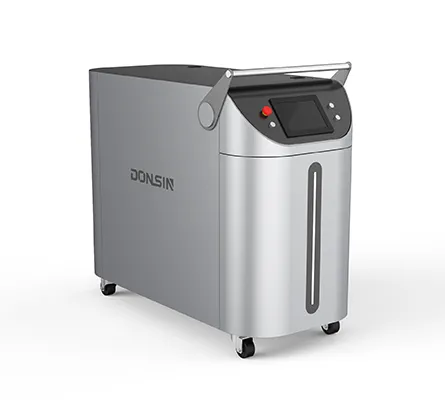

LR-1500
Laser Cleaning Machine-LR
LR-1500 Learn More >
Laser Type
Fiber Laser
Industrial Laser Head Brand
SUP
Laser Source Brand
Raycus/Specified
Application Scenarios
PVC/Carbon Steel/Aluminum
Weight
≈200kg
Dimensions (L×W×H)
1110mm*670mm*1100mm
Laser Power
1500W
Modulation Frequency
1 - 5000Hz
Power Adjustment Range
10 - 100%
Laser Wavelength
1080±5nm
Cleaning Width
0 - 300mm
Cooling Method
Water Cooling
System Mode
Continuous/Modulated
Power Supply Voltage
220±10% V AC, 50/60Hz
Cleaning Gas
Nitrogen/Argon/Clean Air
Fiber Optic Cable Length
10-20m
Temperature Requirements
10 - 40℃
Environmental Requirements
No strong magnetic fields or high-power equipment nearby
LR-3000
Laser Cleaning Machine-LR
LR-3000 Learn More >
Laser Type
Fiber Laser
Industrial Laser Head Brand
SUP
Laser Source Brand
Raycus/Specified
Application Scenarios
PVC/Carbon Steel/Aluminum
Weight
≈200kg
Dimensions (L×W×H)
1110mm*670mm*1100mm
Laser Power
3000W
Modulation Frequency
1 - 5000Hz
Power Adjustment Range
10 - 100%
Laser Wavelength
1080±5nm
Cleaning Width
0 - 300mm
Cooling Method
Water Cooling
System Mode
Continuous
Power Supply Voltage
380±10% V AC 50/60Hz
Cleaning Gas
Nitrogen/Argon/Clean Air
Fiber Optic Cable Length
10-20m
Temperature Requirements
10 - 40℃
Environmental Requirements
No strong magnetic fields or high-power equipment nearby

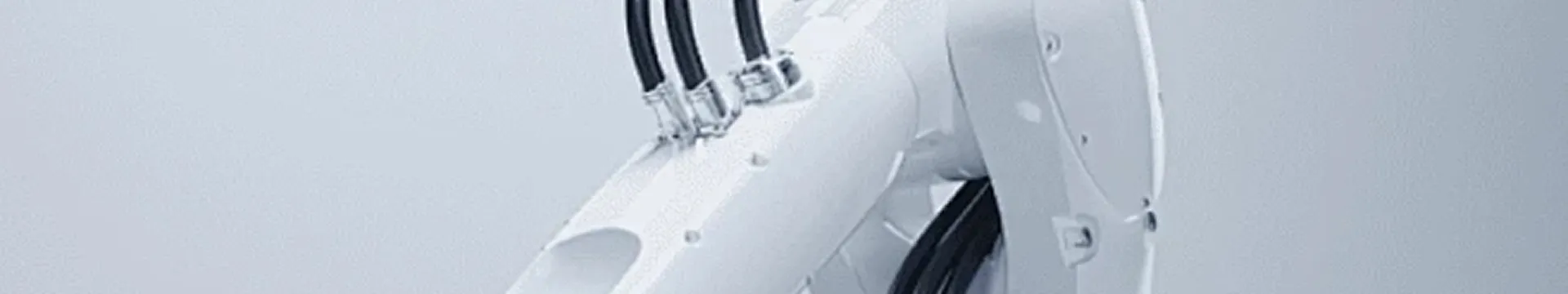

Intelligent Welding In The New Era
RW Series - Collaborative Welding Robot

Hello! Welcome to the RW series intelligent welding solutions. Consult now for exclusive solutions!

Get A Quote
Intelligent Welding In The New Era
Core Configuration

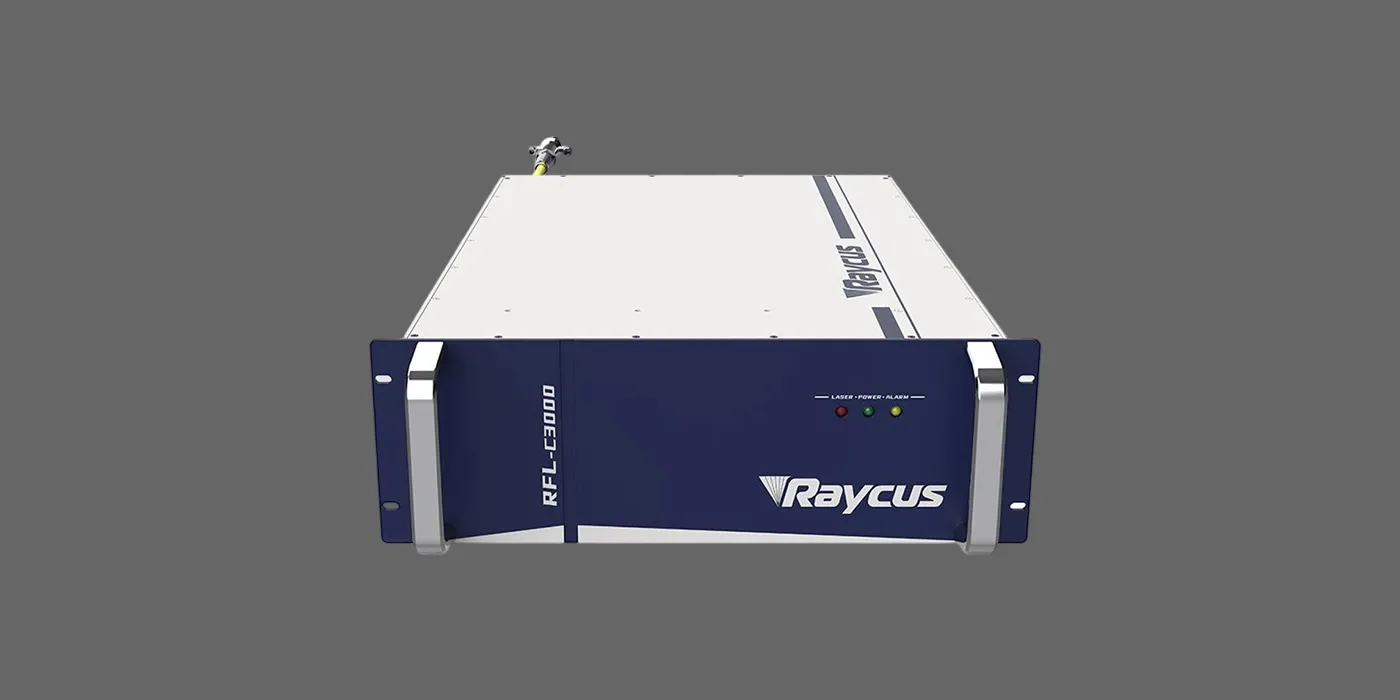

Raycus laser source: High power, high beam quality, high conversion efficiency, high stability, and high intelligence.
Raycus laser source: High power, high beam quality, high conversion efficiency, high stability, and high intelligence.

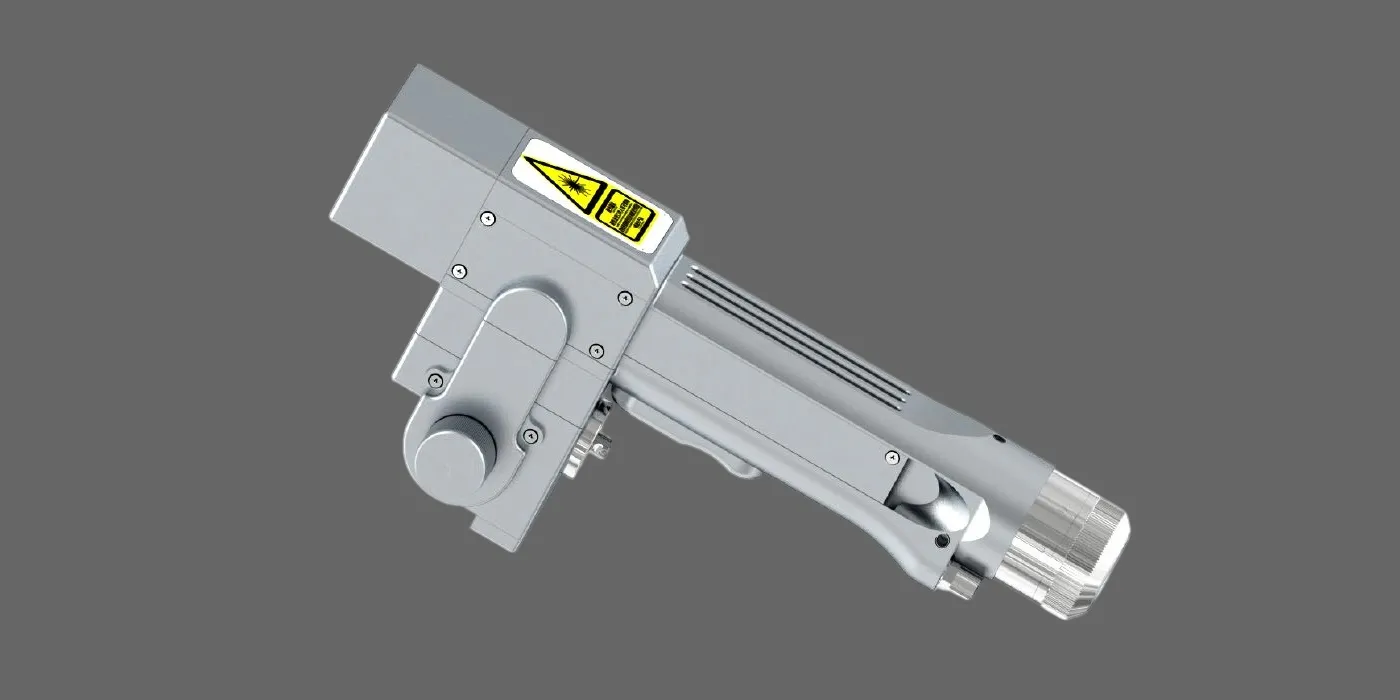

Superlaser cleaning head: adjustable cleaning width, relatively high power, and cost-effective protective lenses.
Superlaser cleaning head: adjustable cleaning width, relatively high power, and cost-effective protective lenses.

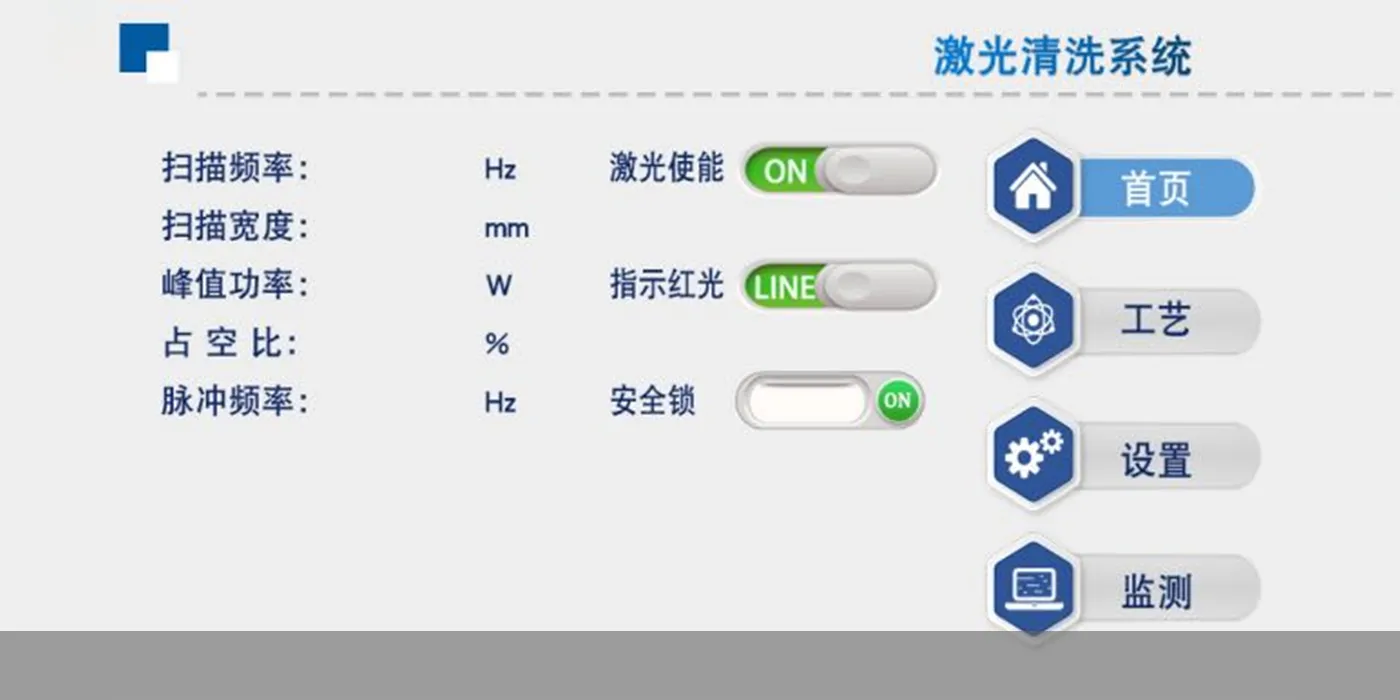

Superb Weiye Control System: Multifunctional integration, high power stability, and easy to use.
Superb Weiye Control System: Multifunctional integration, high power stability, and easy to use.
Core Technologies
Core Technologies

High-energy laser system

Fiber laser source

Beam technology

Intelligent sensing system

Digital control platform


Product Highlights
Product Highlights

Consumable-free cleaning method: No chemicals or abrasives required, only electricity and water.

Precise and controllable: The minimum cleaning line width is 0.1 mm, without damaging the substrate.

Efficient and environmentally friendly: Excellent cleaning effect with no wastewater discharge.

Safe and reliable: Certified by the EU/US, equipped with multiple safety interlock devices.


Service and Support
Service and Support

Three-year warranty: The industry's first three-year warranty service.

Remote diagnosis: Provide online remote status diagnosis support.


Originating From Creation
Starting From Imagination
Learn More
Service And Support
3-Year Warranty
3-Year Warranty
3-year warranty for the entire machine
7 × 24 Response
7 × 24 Response
Online technical support network
