Welding Cobot vs Robotic Welding Arm: What Is the Difference?

If you are researching welding automation, you will quickly notice that suppliers use the terms "welding cobot," "welding robot arm," and "robotic welding arm" almost interchangeably. Quotes, however, can differ by thousands of dollars, and so can the work you are left to do after delivery.

The short answer: a robotic welding arm is one component. A welding cobot is usually a complete, working welding solution built around that component. Understanding that gap can save you from a stalled project.

What Is a Robotic Welding Arm?

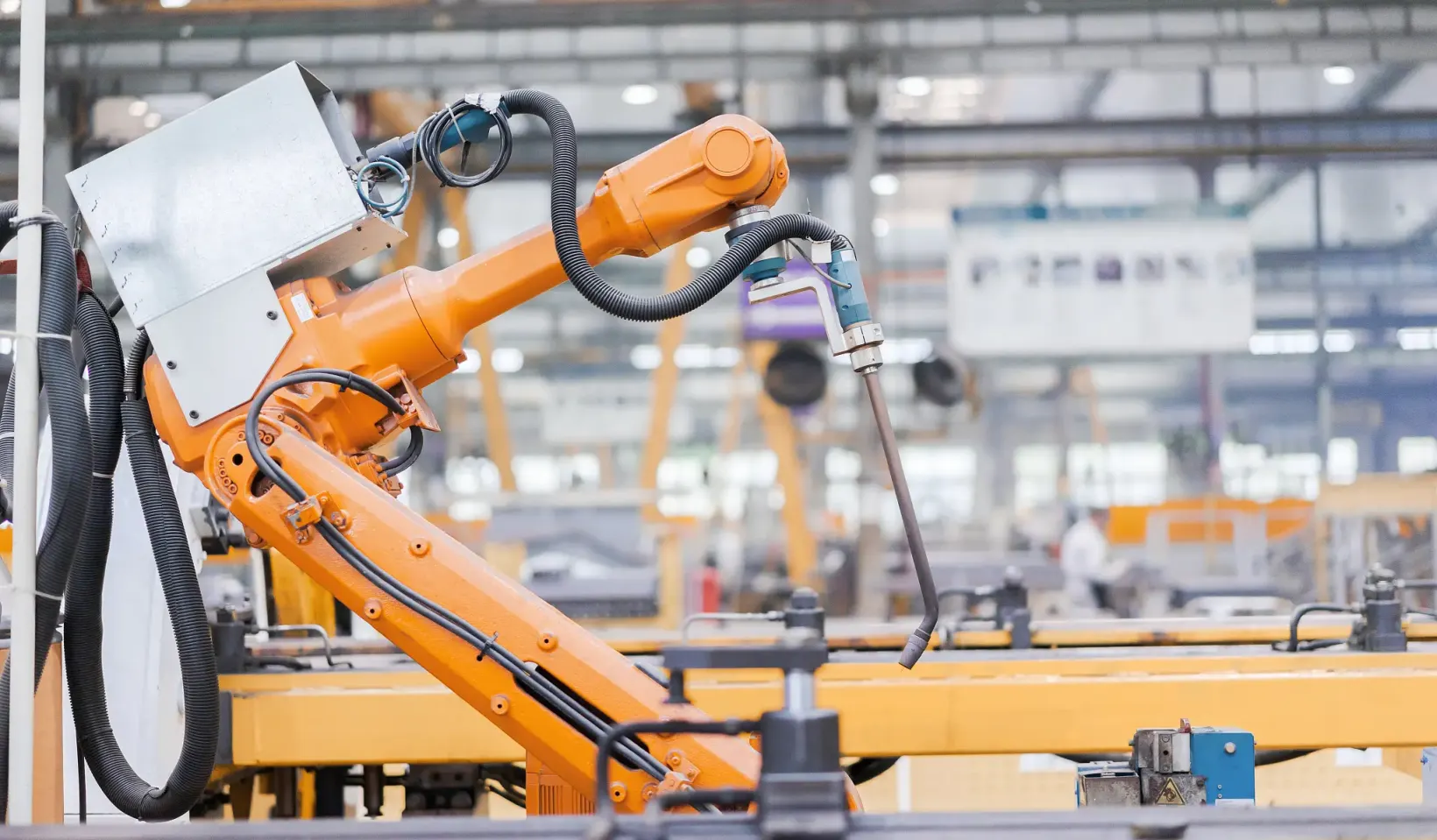

A robotic welding arm (also called a welding robot arm) is the mechanical manipulator: typically a six-axis arm that moves a welding torch along a programmed path. On its own, it can position and move with high repeatability. It cannot weld.

To produce a weld, the arm needs a torch, a power source, a wire feeder, a way to communicate with them, and a way to hold the workpiece. Buy only the arm and you have bought the motion, not the process.

Robotic welding arms come in two broad types:

• Traditional industrial arms, usually fenced off in a safety cell and programmed by trained technicians.
• Collaborative arms, designed with built-in safety features so they can work near people under the right risk assessment.

What Is a Welding Cobot?

A welding cobot is a collaborative robot configured specifically for welding. In practice, the term usually refers to a packaged system, not just the arm. A typical welding cobot package includes:

• A collaborative robot arm
• A welding torch and mounting bracket
• A welding power source (MIG/MAG, TIG, or other process)
• A wire feeder
• A controller or welding software, often with hand-guiding or simplified programming
• A welding table, fixturing, or workstation
• Safety components appropriate to the application

The main selling point is that the pieces are selected, connected and tested to work together. The operator does not need to be a robotics engineer to teach a weld path, set parameters and start production.

One caveat: "cobot" describes how the arm is designed to interact with people, not that the whole cell is automatically safe. Torch heat, arc flash, sharp parts and fumes still need a proper risk assessment and, usually, guarding or screens.

How the Components Work Together

Think of a welding cobot system as a team. Each member has a job, and the weld is only as good as their coordination.

Here is the key relationship: the arm controls where the torch goes, the power source and wire feeder control what happens at the arc, and the controller keeps them synchronized. The fixture determines whether the part is where the program expects it to be.

Fixturing deserves special attention. Many first-time buyers focus on the arm and underestimate the fixture. Robots follow paths; they do not naturally know that a part sits two millimeters off or has distorted from the previous weld. Consistent clamping, tack quality and joint fit-up have a large effect on results.

Welding Cobot vs Robotic Welding Arm: Side-by-Side

High-Mix, Low-Volume vs High-Volume Production

Neither option is "better" in general. The right choice depends on how your parts flow.

When a welding cobot usually makes sense

A welding cobot tends to fit high-mix, low-volume work: many part numbers, small batches, frequent changeovers. In this situation, the biggest cost is not welding time but setup and programming time. Easier teaching, quick path adjustments and a movable workstation matter more than raw speed.

Typical fits include job shops, custom fabrication, small structural parts, brackets, frames and repeat orders that come back in modest quantities. Our RW collaborative welding robot is built for exactly this pattern of work.

When a more industrial robotic welding arm setup makes sense

For high-volume, repeatable production, the priorities shift to cycle time, uptime and tight integration with fixtures, positioners, conveyors and line-level controls. A purpose-built robotic welding arm cell, often with a dedicated fixture and more extensive guarding, can be optimized for speed, payload and reach in a way a general-purpose package may not be.

Here the arm may be a smaller part of the engineering work, and system integration becomes the real project. Heavy-duty cells in this category are usually built on platforms such as the RA-S8Pro welding robot.

A practical rule of thumb

Ask yourself three questions:

1. How often does the part change? Frequent changes favor a cobot's ease of programming.
2. How many parts per shift? Very high volumes favor a dedicated, optimized cell.
3. Who will program and maintain it? If it is your welders, a simpler system helps. If you have an automation team, an arm-based custom cell becomes viable.

There is also a middle path: many shops start with a welding cobot for flexible work and later add dedicated cells for their highest-volume parts.

Who Runs Into Integration Problems When Buying Only the Arm?

Buying a welding robot arm alone can be the right call, but some buyers get caught out. You are most at risk if you:

• Have no in-house robotics or PLC experience. Someone must connect the arm, power source and wire feeder, and configure the signals between them.
• Plan to reuse an older welding machine. Not every power source communicates easily with a robot. You may need interface hardware, or a newer machine.
• Underestimate the controller and software. Teaching a weld path is different from programming arc start, crater fill, weaving and error handling.
• Skip the fixture design. Without repeatable part positioning, weld quality becomes inconsistent no matter how good the arm is.
• Overlook safety requirements. Torches, arc light, fumes and pinch points all need to be assessed, and the work is often forgotten in the first budget.
• Expect one point of support. If the arm, power source and software come from three suppliers, a quality issue can turn into a three-way discussion about whose problem it is.

This is where a packaged welding cobot often earns its price: you pay for the integration, testing and one accountable contact, instead of discovering those costs later.

A Simple Buying Checklist

Before you request quotes, gather this information:

• Materials and thickness range
• Welding process (MIG/MAG, TIG, other)
• Typical part size and joint types
• Batch sizes and changeover frequency
• Existing welding equipment you want to keep
• Who will operate and program the system
• Floor space and safety requirements
• Whether fixtures and positioners are included

Then ask every supplier the same question: "What exactly is included, and what do I still need to buy or build?"

The Bottom Line

A robotic welding arm moves the torch. A welding cobot, in the way most buyers use the term, is a working welding system that includes the arm, welding equipment, controls and practical tools to get production started.

If your work is varied and your team is new to robotics, a packaged welding cobot usually reduces risk. If you have high volumes and engineering resources, a customized cell built around a robotic welding arm may give you more optimization room. The expensive mistake is assuming the arm alone is the solution.
